Bridges have played a pivotal role in shaping the development of civilizations, connecting regions, fostering trade, and enabling the movement of people and goods. Among the myriad types of bridges, the Bailey bridge and the beam bridge stand out for their unique characteristics, historical significance, and engineering marvels. Understanding the differences between these two types of bridges is essential for engineers, historians, and anyone interested in infrastructure development. This article delves deep into the distinctions between Bailey bridges and beam bridges, exploring their design, construction, applications, advantages, limitations, and historical backgrounds. By the end, you will gain a comprehensive understanding of how each bridge type serves its purpose and why the choice between them matters in various scenarios.

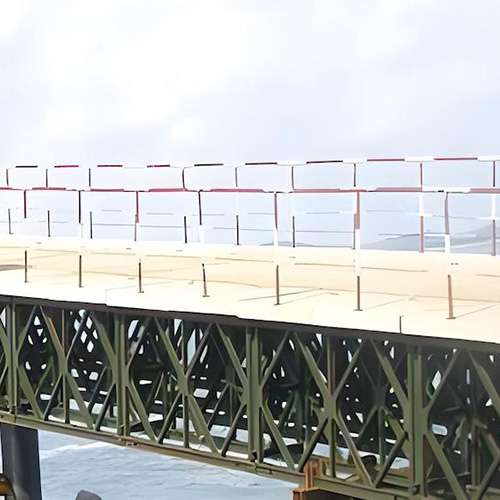

A Bailey bridge is a type of portable, pre-fabricated, truss bridge. It was developed by the British during World War II for military use and has since become a staple in both military and civilian engineering projects worldwide. The Bailey bridge is renowned for its modular design, which allows for rapid assembly and disassembly without the need for heavy equipment. Its components are lightweight and can be carried by hand, making it ideal for situations where quick deployment is necessary, such as during wartime, disaster relief, or temporary crossings.
- Modular Design: Bailey bridges are composed of standardized panels and components that can be easily transported and assembled on-site.
- Truss Structure: The bridge utilizes a truss framework, which provides strength and stability while minimizing material usage.
- Portability: Due to their lightweight steel components, Bailey bridges can be transported to remote or inaccessible locations.
- Rapid Assembly: Teams can erect a Bailey bridge in a matter of hours or days, depending on the span and site conditions.
- Versatility: The design allows for single, double, or triple truss configurations, adapting to different load requirements.
The Bailey bridge was invented by Sir Donald Bailey, a British civil engineer, in 1940. Its introduction revolutionized military logistics during World War II, enabling Allied forces to quickly replace destroyed bridges and maintain supply lines. The bridge's success in wartime led to its adoption in civilian infrastructure projects, particularly in regions prone to natural disasters or where permanent bridges were not feasible.
A beam bridge is one of the simplest and oldest types of bridges. It consists of horizontal beams supported at each end by piers or abutments. The weight of the bridge and any additional load is transferred directly to the supports. Beam bridges are commonly used for short to medium spans and are prevalent in roadways, railways, and pedestrian crossings.
- Simple Structure: Beam bridges are composed of horizontal beams resting on supports at either end.
- Material Variety: They can be constructed from wood, concrete, steel, or composite materials.
- Ease of Construction: The straightforward design allows for quick and cost-effective construction.
- Limited Span: Beam bridges are best suited for shorter spans due to limitations in material strength and deflection.
- Low Maintenance: With fewer components, beam bridges typically require less maintenance compared to more complex structures.
Beam bridges have been used since ancient times, with early examples made from logs or stone slabs. Their simplicity and effectiveness have ensured their continued use throughout history, evolving with advancements in materials and construction techniques.

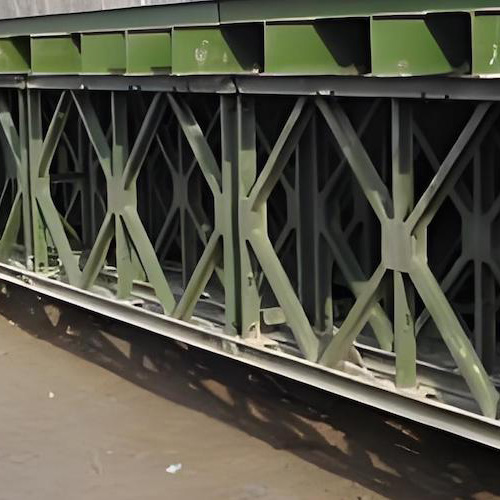

The Bailey bridge's design is centered around its modular truss panels. Each panel is a rectangular steel frame with diagonal bracing, which, when connected, forms the main load-bearing structure. The panels are pinned together, allowing for flexibility in length and width. The bridge deck is typically made of wooden planks or steel plates, supported by the truss framework.
The truss system distributes loads efficiently, enabling the bridge to span greater distances and carry heavier loads than a simple beam bridge of comparable weight. The modularity allows for customization based on site requirements, such as span length, load capacity, and available manpower.
Beam bridges rely on the strength of the beam itself to span the gap between supports. The beam can be a simple solid piece or a composite structure, such as a steel I-beam or a pre-stressed concrete girder. The design is straightforward: the beam is placed horizontally across the span, with its ends resting on abutments or piers.
The load on a beam bridge causes the beam to bend, with the top surface experiencing compression and the bottom surface experiencing tension. The strength and stiffness of the beam determine the maximum span and load capacity. For longer spans, multiple beams or additional supports may be required.
The construction of a Bailey bridge involves assembling the modular panels on-site. The process typically follows these steps:
1. Site Preparation: The location is surveyed, and temporary supports or abutments are constructed.
2. Panel Assembly: Steel panels are connected using pins to form the truss sections.
3. Launching: The assembled bridge can be launched across the gap using rollers or by building it on one side and pushing it into place.
4. Decking: Wooden or steel decking is installed on top of the truss framework.
5. Finishing Touches: Guardrails and other safety features are added as needed.
The entire process can be completed with minimal heavy machinery, making it ideal for remote or emergency situations.
Building a beam bridge is generally more straightforward:
1. Foundation Work: Supports or abutments are constructed at each end of the span.
2. Beam Placement: Beams are lifted into place using cranes or other equipment.
3. Deck Installation: The bridge deck is installed on top of the beams, often using pre-cast panels or poured concrete.
4. Finishing Work: Railings, lighting, and other features are added.
The simplicity of beam bridge construction makes it a popular choice for short spans and locations where rapid deployment is not critical.
Bailey bridges are used in a variety of scenarios, including:
- Military Operations: Rapid deployment for crossing rivers, ravines, or destroyed infrastructure during conflicts.
- Disaster Relief: Temporary bridges in areas affected by floods, earthquakes, or other natural disasters.
- Remote Locations: Providing access to isolated areas where permanent bridges are not feasible.
- Temporary Detours: Used during construction or repair of permanent bridges to maintain traffic flow.
Beam bridges are commonly found in:
- Roadways and Highways: Overpasses, underpasses, and small river crossings.
- Railways: Supporting tracks over short spans.
- Pedestrian Walkways: Footbridges in parks, campuses, and urban areas.
- Industrial Sites: Supporting pipelines, conveyors, or light vehicles.
- Rapid Deployment: Can be assembled quickly with minimal equipment.
- Portability: Components are easy to transport and handle.
- Versatility: Adaptable to various spans and load requirements.
- Reusability: Can be dismantled and reused at different sites.
- Temporary Nature: Typically intended for short to medium-term use.
- Load Limitations: While strong, not suitable for extremely heavy or long-term loads without reinforcement.
- Aesthetic Limitations: Functional design may not blend well with urban or scenic environments.
- Simplicity: Easy to design, build, and maintain.
- Cost-Effective: Generally less expensive for short spans.
- Material Flexibility: Can be built from a variety of materials.
- Durability: Suitable for permanent installations with proper materials and construction.
- Span Limitations: Not suitable for long spans without additional supports.
- Aesthetic Simplicity: May lack the visual appeal of more complex bridge types.
- Vulnerability to Deflection: Beams can bend under heavy loads, requiring careful design.
Bailey bridges use a truss system to distribute loads efficiently across the span, reducing the stress on individual components. Beam bridges, on the other hand, rely on the strength and stiffness of the beam itself, with loads transferred directly to the supports.
Bailey bridges are typically made from high-strength steel, chosen for its durability and light weight. Beam bridges can be constructed from wood, steel, concrete, or composite materials, depending on the application and desired lifespan.
Bailey bridges, especially those used in temporary or emergency situations, may require regular inspections to ensure structural integrity. Beam bridges, particularly those made from concrete or steel, generally require less frequent maintenance but should still be monitored for signs of wear, corrosion, or damage.
The Bailey bridge's impact during World War II cannot be overstated. Its ability to be rapidly deployed allowed Allied forces to maintain momentum during critical campaigns. Post-war, surplus Bailey bridges were used in reconstruction efforts, particularly in war-torn regions.
Today, Bailey bridges continue to serve in military, emergency, and remote applications. Their design has inspired modern modular bridge systems, further cementing their legacy in engineering history.
Beam bridges have stood the test of time, evolving from simple log crossings to sophisticated structures made from advanced materials. Their continued use in modern infrastructure highlights their reliability and adaptability.
The decision to use a Bailey bridge or a beam bridge depends on several factors:
- Purpose: Temporary or emergency use favors Bailey bridges; permanent installations often use beam bridges.
- Span Length: Bailey bridges can cover longer spans with modular extensions; beam bridges are best for shorter spans.
- Load Requirements: Both can handle significant loads, but Bailey bridges may require reinforcement for very heavy traffic.
- Site Accessibility: Remote or hard-to-reach sites benefit from the portability of Bailey bridges.
- Construction Speed: Bailey bridges excel in rapid deployment scenarios.
- Budget: Beam bridges are generally more cost-effective for short, permanent spans.
Modern engineering continues to refine both Bailey and beam bridge designs. Advances in materials, such as high-performance steel and composites, have increased load capacities and durability. Prefabrication techniques have streamlined construction processes, reducing time and labor costs.
Sustainable practices are also influencing bridge design, with an emphasis on minimizing environmental impact and maximizing lifespan. Modular bridge systems inspired by the Bailey bridge concept are being used in developing regions to improve infrastructure quickly and efficiently.
Bailey bridges and beam bridges each have unique strengths and serve distinct roles in the world of civil engineering. The Bailey bridge's modular, portable design makes it indispensable for temporary and emergency applications, while the beam bridge's simplicity and cost-effectiveness make it a mainstay of permanent infrastructure. Understanding the differences between these two bridge types enables engineers, planners, and policymakers to make informed decisions that best meet the needs of their projects and communities.
The main difference lies in their design and purpose. A Bailey bridge is a modular, portable truss bridge designed for rapid assembly and temporary use, often in military or emergency situations. A beam bridge, on the other hand, is a simple structure consisting of horizontal beams supported at each end, commonly used for permanent, short-span crossings.
While Bailey bridges are primarily intended for temporary or emergency use, they can be adapted for longer-term applications with proper maintenance and reinforcement. In some cases, especially in remote or developing regions, Bailey bridges have served as permanent solutions for many years.
Beam bridges can be constructed from various materials, including wood, steel, concrete, and composite materials. The choice of material depends on factors such as span length, load requirements, environmental conditions, and budget.
The assembly time for a Bailey bridge depends on the span length, site conditions, and the experience of the construction team. In ideal conditions, a small team can assemble a Bailey bridge in a matter of hours to a few days.
Beam bridges are generally best suited for short to medium spans. For longer spans, additional supports or alternative bridge types, such as truss or suspension bridges, are typically required to ensure structural integrity and safety.
