Bailey bridges have become synonymous with versatility and reliability in bridging solutions worldwide. Designed initially for military use, these modular bridges have, over time, been embraced for a plethora of civilian applications ranging from emergency disaster response to long-term infrastructure development. When planning a Bailey bridge project, one core question arises: should you choose a temporary or permanent Bailey bridge setup? This comprehensive guide delves deep into the nuances of both approaches, discussing their unique features, suitability, installation, maintenance, and much more, to aid you in making the right decision for your infrastructure needs.
Bailey bridges are prefabricated, truss bridges constructed from interchangeable panels and components. Their hallmark is rapid assembly and robust load-bearing capacity, achieved thanks to clever engineering that allows parts to be transported in manageable sections and assembled on-site with minimal special equipment.
Initially developed during World War II for the rapid mobility of troops and material, their utility has endured, now catering to civil engineering, emergency relief, mining operations, and infrastructural upgrades where traditional bridge-building is impractical, excessively time-consuming, or cost-prohibitive.
- Modular design for flexible length and width configurations
- No need for heavy lifting equipment—assembly possible with basic tools and minimal machinery
- Adaptable to diverse terrains including rivers, valleys, and disaster-affected regions
- High load capacity, supporting vehicular, pedestrian, and railway traffic
- Reusable and demountable—ideal for both short-term and permanent solutions
A temporary Bailey bridge is an installation designed to provide a transit solution for a limited period. They are ideal for situations requiring swift deployment, such as post-disaster recovery, road repairs, or during the construction of permanent infrastructure.
- Quick installation and removal: Minimal site preparation means the bridge can be erected within days or even hours, facilitating immediate access across obstacles.
- Cost-effective for short-term use: Temporary setups negate the expenses of building permanent structures, especially when the bridge won't be needed long-term.
- Reusable: Once dismantled, the same components can be transported and reassembled at new sites, enhancing resource efficiency.
- Minimal environmental disruption: Scaffold-like construction and reduced need for concrete foundations lessen ecological impact.
- Emergency relief after floods, earthquakes, or landslides
- Bypass routes during construction or repair of permanent bridges
- Military logistics and humanitarian aid missions
- Access to remote work sites, such as mines or logging operations
Temporary Bailey bridges follow a streamlined assembly process. Panels are transported to the site, and the bridge is typically launched by cantilevering the structure across the gap from one side. Foundation work is minimal, often involving only simple abutments or support piers, allowing the bridge to be put into service swiftly and removed without major recovery works.
Due to their short-term use, temporary Bailey bridges need minimal maintenance. Periodic inspections for panel integrity, fastener tightness, and alignment are usually sufficient. If reused across multiple sites, each component must be checked for fatigue or damage before reassembly.
Permanent Bailey bridges are those installed for long-term or indefinite use. They may be chosen for permanent infrastructure requirements, especially in locations where traditional bridge construction is impractical due to remote access, budget constraints, or time limitations.
- Durability: Designed for long-term service, often with enhancements such as anti-corrosion coatings or upgraded decking materials.
- Cost savings: Compared to constructing from concrete or steel in remote areas, Bailey bridges offer significant upfront and lifecycle cost benefits.
- Speed of construction: Even permanent setups are usually completed faster than conventional bridges, reducing downtime and economic impact.
- Customizable: Bridges can be designed to suit the anticipated load, environmental conditions, and aesthetic requirements.
- Permanent crossings in rural or underserved areas
- Solutions for challenging terrain where conventional bridges are not viable
- Infrastructure upgrades for communities otherwise isolated by difficult geography
- Industrial and mining site access
While the fundamental assembly process mirrors the temporary setup, permanent Bailey bridges typically require more substantial foundations—concrete abutments, deep-set piers, or custom-designed supports. The bridge may also be fitted with paved decking, protective coatings, and integrated with surrounding infrastructure (like guardrails, lighting, and signage).
For long-term performance, permanent Bailey bridges need regular inspections and maintenance, including:
- Tightening or replacing bolts and connectors as needed
- Checking for corrosion, especially in adverse climates
- Repainting or recoating steel components to prevent rust
- Periodic structural assessments to guard against fatigue or overloading
The decision hinges largely on the expected lifespan of the crossing. If access is needed only during construction or after an emergency, a temporary setup is ideal. Where community or economic needs demand a decades-long crossing, permanent installations are warranted.
Remote, ecologically sensitive, or geologically challenging sites often tip the scales in favor of Bailey bridges, given their light footprint and adaptability. For permanent installations in such areas, designs may be enhanced for longevity and compatibility with local conditions.
While initial costs for temporary bridges are typically lower, ongoing expenses related to reuse, transportation, and potential modifications should be factored in. For permanent installations, although foundations and enhancements raise upfront expenses, the lifecycle cost stays competitive due to lower labor and material requirements compared to conventional options.
Consider the weight and frequency of expected traffic. Temporary bridges can be configured for significant loads but may have limitations based on panel strength and foundation type. Permanent bridges can be designed and upgraded to accommodate heavier or more frequent traffic.
Temporary bridges may fall under emergency or expedited-use allowances, while permanent bridges must comply with stringent design, safety, and permitting standards. This must be addressed during project planning to ensure compliance with local regulations.
For projects with uncertain timelines or evolving requirements, the modular nature of Bailey bridges is advantageous. Bridges can be extended, shortened, or repurposed as needs change.
Proper engineering analysis underpins every Bailey bridge installation, temporary or permanent. Key factors include span length, load classification, foundation engineering, hydrological impacts, wind loads, seismic activity, and material specification.
Temporary bridges often use standardized steel panels easily available for quick deployment. Permanent installations may require special materials, anti-corrosion treatments, or customized decking for greater resilience and longevity.
A thorough survey ensures the chosen Bailey bridge fits the site's topography, subsoil conditions, erosion risks, approach alignments, and environmental sensitivities.
The manageable size of Bailey bridge components eases logistical challenges. Temporary sites especially benefit from the ability to deliver parts via smaller trucks or even airlift. Permanent projects may seek larger batch shipments for streamlined assembly.
- Cantilever launch: From one bank to the other, using minimal equipment.
- Craned placement: For shorter spans or where site allows.
- Floating launch: Over water using pontoons or temporary supports.
Choice of method depends on site conditions, bridge length, and local resources.
After catastrophic flooding in a remote village, a Bailey bridge was airlifted and assembled in under 48 hours. The bridge provided critical access for relief teams and supplies while roadways were rebuilt. Once normal routes were restored, the Bailey bridge was dismantled and stored for future emergencies.

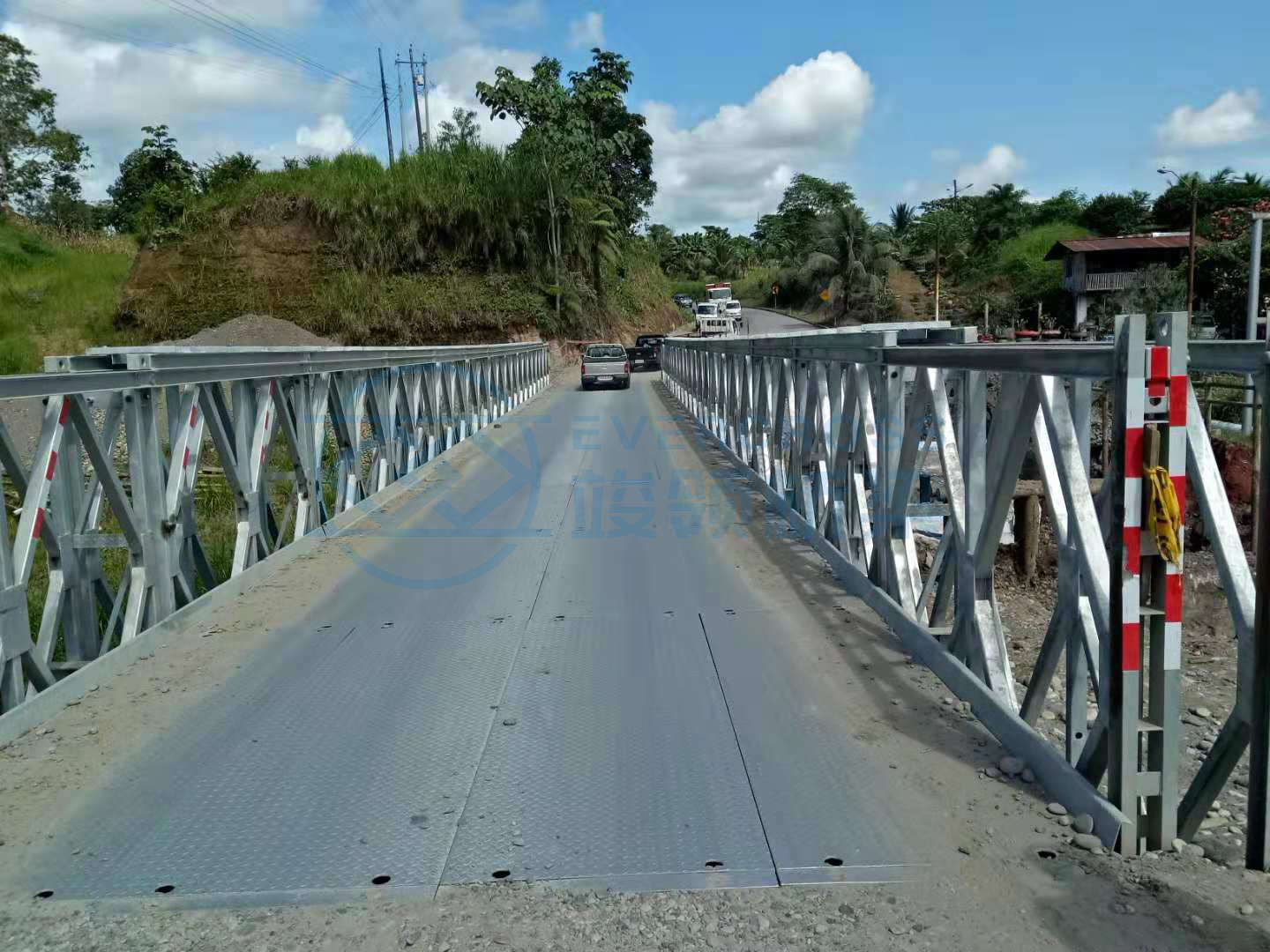

A rural district, cut off due to recurring landslides, invested in a permanent Bailey bridge. Using substantial concrete abutments and enhanced anti-corrosion panels, the project delivered reliable year-round access at a fraction of the cost and time required by traditional bridge construction.
Both temporary and permanent Bailey bridges require regular inspections for safety and performance:
- Visual checks for bent panels, loose bolts, or misalignment
- Monitoring for corrosion, deformation, or structural fatigue
- Periodic assessment after extreme weather or heavy use
Modular design allows for easy replacement or upgrade of parts. Worn or damaged elements can be swapped with minimal disruption. Permanent installations may also be retrofitted with improved technology as it becomes available.
Temporary Bailey bridges can be quickly taken down and moved to new sites. Permanent installations, though designed for longevity, can be disassembled if no longer needed, with components recycled or repurposed for other projects.
- Temporary bridges often fall under emergency use regulations, but must still be installed following best practices to ensure user safety.
- Permanent bridges are subject to full engineering codes, legal standards, and thorough permitting processes.
- Comprehensive assembly manuals, standardized panel identification, and clear load postings are essential for safety.
Bailey bridges are well regarded for their lighter environmental footprint:
- Reduced site disturbance: Minimal earthworks and fewer concrete pours protect local habitats.
- Easy decommissioning: Temporary structures can leave sites nearly as intact as before installation.
- Reusability: Panels and connectors can serve multiple sites over decades, reducing waste.
Permanent installations often incorporate sustainable design elements, such as improved drainage, anti-corrosion coatings, and integration with local flora for visual harmony.
Ongoing innovation ensures Bailey bridges remain a vital solution:
- Lighter, stronger panel materials (e.g., high-strength alloys, composites)
- Coating technologies extending life and decreasing maintenance
- Integration of smart monitoring systems to track bridge health and usage
- Universal joint systems for upgraded modularity and faster repairs
As infrastructure challenges evolve—particularly with climate change, rapid urbanization, and increasing demand for resilient solutions—the Bailey bridge's core design continues to adapt.
Choosing between a temporary and permanent Bailey bridge setup is a decision shaped by project goals, site conditions, budget, and anticipated usage duration. Temporary bridges excel in rapid response, adaptability, and cost-effectiveness for short to medium-term needs. Permanent installations provide reliable long-term service, especially where traditional bridging is impractical or economies of scale are imperative.
Both setups share modularity, ease of installation, and a proven history of performance across the globe, making Bailey bridges an optimal choice whenever expedient, robust, and resourceful bridging is required. Assess your specific requirements, perform thorough engineering analysis, and engage with experienced suppliers to ensure the solution you select is safe, sustainable, and cost-effective—now and well into the future.
Temporary setups are designed for short-term use, featuring rapid installation, easy removal, and reusability. Permanent installations involve robust foundations, enhanced materials, and long-term designs to ensure durability and compliance with infrastructure standards.
Often, a temporary Bailey bridge can be upgraded to permanent status by reinforcing foundations, applying anti-corrosion treatments, and adding permanent features like decking, railings, and lighting, provided that the original design planned for potential longevity.
Yes, Bailey bridges, when suitably engineered, can handle high traffic volumes, including city roads and even railways. However, permanent installations in urban areas typically require enhanced load ratings, aesthetic considerations, and integration with local regulations.
The timeline depends on site conditions, span length, and bridge type. Temporary bridges may be assembled in hours to a few days, while permanent installations might take several weeks, considering the abutment and foundation work.
Temporary Bailey bridges require minimal routine maintenance, primarily inspections for loose or damaged panels. Permanent installations need regular checks for structural integrity, corrosion, and occasional part replacements to ensure ongoing safety and performance.
