Bailey bridges have revolutionized modern bridge construction with their modularity, strength, and adaptability. Originally developed as a portable, pre-fabricated truss bridge during times of war, Bailey bridges remain indispensable for civil engineering, emergency response, and infrastructure projects worldwide. Whether used for military purposes, disaster relief, or temporary crossings, the successful installation of a Bailey bridge requires meticulous planning, engineering expertise, and strict adherence to safety protocols.
This article explores the best practices for installing Bailey bridges on site, covering the entire process from site assessment and preparation to assembly, launching, and post-installation management. Emphasis is placed on safety, logistical coordination, and practical tips gleaned from experienced engineers around the globe. By following these best practices, project teams can ensure the timely, safe, and cost-effective construction of Bailey bridges in even the most challenging environments.

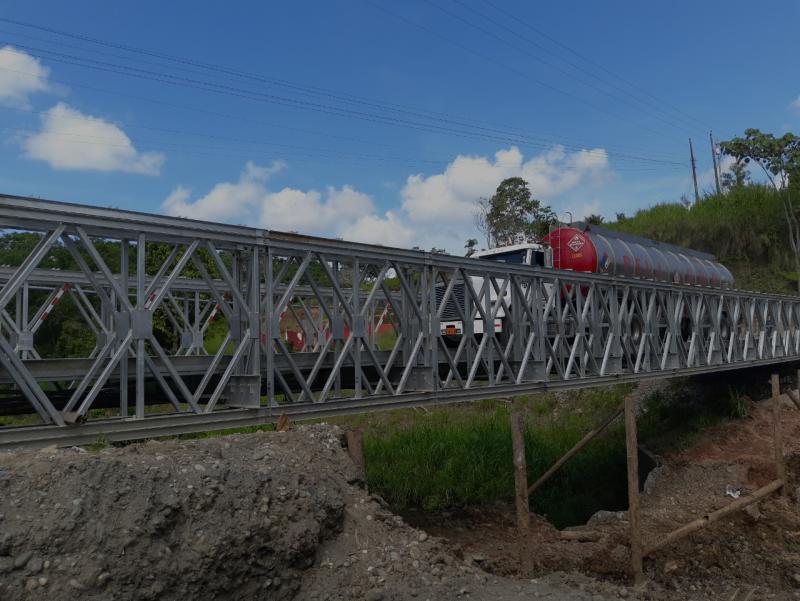

Bailey bridges are modular, prefabricated steel truss structures designed for rapid deployment. Their key features include:
- Modular Construction: Components like panels, transoms, and stringers are easy to transport and assemble.
- Versatility: Suitable for a variety of spans and load requirements, from pedestrian walkways to heavy vehicular crossings.
- Tool-Free Assembly: Most connections use simple pins and wedges, requiring minimal specialized equipment.
- Reusability: Bridges can be dismantled, relocated, and reused as needed.
Their simplicity and strength make Bailey bridges a go-to solution for rapid bridging needs, particularly where permanent structures are not feasible or in emergency scenarios requiring immediate action.
The first crucial step is a thorough site survey and evaluation. This involves:
- Topographical Mapping: Understanding site elevations, slopes, and distances between abutments.
- Geotechnical Investigation: Assessing soil composition, bearing capacity, and water levels to inform foundation designs.
- Environmental Factors: Identifying nearby water bodies, vegetation, wildlife presence, and local weather patterns.
Engineering teams must determine the expected types and magnitudes of loads, such as:
- Vehicular and pedestrian traffic volumes
- Emergency vehicle requirements
- Equipment logistics, including the heaviest expected crossing load
Based on these factors, the optimal span and structural configuration are selected, influencing the type and quantity of Bailey bridge components required.
The availability of access roads, storage space for bridge materials, and proximity to utilities or obstacles are analyzed. A clear route for transporting components to the assembly location is essential to avoid delays and reduce handling risks.
A comprehensive safety plan is drafted, including:
- Hazard identification and mitigation strategies
- Personal protective equipment (PPE) requirements
- Emergency response protocols
- Clear assignment of safety responsibilities
- Component Inspection: Every bridge part should be checked for damage, wear, deformities, or missing pieces before assembly begins.
- Preliminary Assembly: Performing a ‘dry run' or partial assembly offsite can help identify potential issues.
- Inventory Management: A detailed checklist ensures all required parts are present, including spare pins, bolts, and special tools.
Prior to starting work, all personnel must be briefed on:
- Installation sequence and individual roles
- Handling techniques for heavy components
- Safety procedures for assembly and lifting
If the bridge is being installed in a hazardous or high-traffic area, additional training may cover site-specific risks.
Strong, stable abutments are crucial for bridge safety. This stage involves:
- Clearing and leveling the site
- Constructing or improving abutments using concrete, compacted fill, or pre-made bearing pads
- Erecting temporary shoring or guide frameworks if needed
Water crossings may require cofferdams, diversion channels, or pumps to control water flow during foundation work.
A typical assembly process follows these stages:
- Laying Out Panels: Steel panels are laid on level ground and bolted into the desired truss configurations, usually as single, double, or triple truss for additional strength.
- Securing Connections: Transoms connect the two parallel trusses at intervals, supporting the bridge deck.
- Placing Stringers: Longitudinal stringers are fixed atop the transoms, providing a framework for the decking.
- Decking Installation: Wooden, steel, or composite decking materials are installed, forming the bridge surface.
- Adding Side Rails and Safety Features: Guardrails, curbs, and other features are added as required.
- Launching Method: Frequently, Bailey bridges are assembled on one bank and launched longitudinally across the span using rollers, launching noses, and counterweights. This minimizes the need for work in dangerous mid-span areas.
- Crane or Hydraulic Placement: For short spans or where launching is impractical, cranes may be deployed to lift fully assembled panel units into place.
- Manual Assembly (Modular Placement): In smaller or remote sites, the bridge may be assembled in modules and maneuvered into place using hand tools, winches, and rollers.
- Confirm all lifting equipment is properly rated and tested.
- Securely brace partially assembled sections to prevent tipping or collapse.
- Ensure strict enforcement of PPE usage, especially hard hats, gloves, and steel-toed boots.
- Assign experienced supervisors to oversee critical phases.
When using the launching method:
- Launching Nose Attachment: A lighter launching nose extends beyond the bridge, reducing bending moment and easing the crossing onto the far abutment.
- Roller Supports: Rollers or sliding plates are placed on the abutments, facilitating smooth movement across the gap.
- Counterbalance and Control: Weights or winches control the movement, and workers monitor for misalignment or snags.
- Use surveying equipment to check horizontal and vertical alignment continuously during launching.
- After the bridge reaches the opposite abutment, carefully lower it into its final bearing position.
- Remove the launching nose and secure permanent approach ramps, guardrails, and other accessories.
- Conduct systematic inspections for connection integrity, alignment, and overall stability.
- Obtain certification from a qualified structural engineer before opening the bridge to traffic.
- Perform static or dynamic load tests according to project specifications.
- Document all test results and monitor for unexpected bridge deflection or movement.
- Install maintenance access if required (such as inspection platforms).
- Develop a maintenance schedule for regular inspections, cleaning, tightening of connections, and replacement of worn parts.
- Complete all project documentation, including as-built drawings, inspection checklists, and maintenance schedules. Maintain clear records for future reference.
- Pre-assemble bridge components as much as feasible off-site to reduce on-site labor.
- Use lightweight or airlift-friendly modules for inaccessible areas.
- Leverage local labor and machinery for site preparation.
- Monitor forecasts and prepare for high winds, rain, or floods.
- Secure loose components and temporary supports during work interruptions.
- Use parallel work teams for site preparation and bridge assembly tasks.
- Prioritize critical path activities and schedule efficient delivery of materials.
- Establish a clear chain of command for decision-making on site.
- Use radios or mobile devices to maintain coordination across work zones.
- Minimize noise and dust during construction to reduce local impacts.
- Restore disturbed areas and ensure all temporary structures are removed after completion.
- Enforce the use of appropriate PPE at all times.
- Keep work areas clearly marked and barricaded from non-essential personnel.
- Provide first aid kits and staff trained in emergency response.
- Monitor for fatigue among workers, especially during long shifts or adverse conditions.
- Regularly review safety procedures and hold daily toolbox talks.
The successful installation of a Bailey bridge depends on meticulous planning, skilled execution, and a continual focus on safety and quality. By understanding the challenges specific to each site and strictly adhering to best practices at every stage, teams can leverage the unique benefits of Bailey bridges to rapidly restore connectivity, support emergency operations, or facilitate infrastructure development. The process is complex and demanding, yet with a committed approach and attention to detail, Bailey bridge projects can be completed efficiently and safely, delivering crucial connections where they are needed most.
Key safety precautions include the use of PPE (personal protective equipment), proper training for all personnel, regular inspection of equipment, effective site barricading, and having emergency response plans in place. Supervisors must ensure that only trained workers handle heavy components and operate machinery. Maintaining clear communication and monitoring environmental hazards are critical to preventing accidents.
The installation time varies depending on span length, site conditions, crew experience, and access. Basic single-lane Bailey bridges can sometimes be installed in a matter of days, while more complex, multi-span, or double-width bridges may require several weeks. Efficient logistics, pre-planning, and parallel task scheduling can significantly reduce installation time.
While Bailey bridges are traditionally used as temporary or emergency solutions, they can be adapted for permanent or semi-permanent use when designed and installed to appropriate standards. Additional corrosion protection, heightened inspection regimes, and, where necessary, improved deck surfaces and abutments are needed for long-term durability.
Configuration depends on the span required, the anticipated load (vehicular, pedestrian, or mixed use), site constraints such as available room for launching or cranes, and local environmental or regulatory requirements. Engineers assess these parameters to decide on single, double, or triple truss arrangements and appropriate decking designs.
Maintenance involves routine inspections of joints and fasteners for looseness or fatigue, checking for corrosion or damage to steel elements, periodic cleaning to remove debris or sediment, timely repairs of worn decking, and maintaining approach ramps. Adhering to a scheduled maintenance regime ensures the bridge remains safe and serviceable throughout its life.
