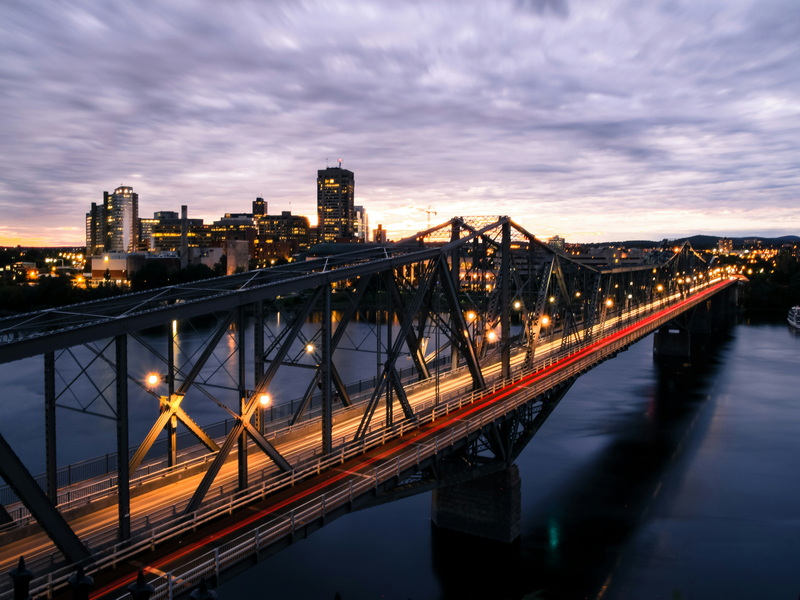

The Howe and Pratt truss bridges represent two pivotal innovations in structural engineering, each offering unique advantages for spanning distances. Developed in the 19th century, these designs revolutionized bridge construction by optimizing load distribution and material efficiency. While both systems use triangular configurations to balance tension and compression forces, their structural differences make them suited for distinct applications. This article explores their histories, mechanics, strengths, and limitations, providing a comprehensive comparison for engineers and enthusiasts alike.
The evolution of truss bridges in North America began with wooden structures, utilizing designs such as the Towne lattice truss and Burr truss. As engineering progressed, the need for stronger and more efficient bridges became apparent, especially with the advent of railroads and heavier loads[2].
In 1840, William Howe patented the Howe truss design, marking a significant advancement in bridge engineering. That same year, he established the Howe Bridge Works to construct bridges using his innovative design. The first Howe truss ever built was a single-lane, 75-foot long bridge in Connecticut. Shortly after, a more impressive seven-span, 180-foot long railroad bridge was erected over the Connecticut River in Springfield, Massachusetts, garnering widespread acclaim[2].
Just four years later, in 1844, Thomas and Caleb Pratt introduced their Pratt truss design. This new configuration was a response to the growing demand for bridges capable of supporting the increasing weight of railroad traffic. The Pratt truss quickly gained popularity due to its efficiency in handling distributed loads and its adaptability to all-metal construction[4][5].
The primary distinction between Howe and Pratt trusses lies in the orientation of their diagonal members and the resulting force distribution.
The Howe truss features diagonal members that slope toward the center of the span, forming A-shapes. In this configuration:
- Vertical members are in tension
- Diagonal members are in compression
- Particularly efficient for concentrated loads
Conversely, the Pratt truss has diagonal members that slope outward from the center, creating V-shapes. This arrangement results in:
- Vertical members under compression
- Diagonal members experiencing tension
- Superior performance with distributed loads
The choice of materials played a crucial role in the development and application of these truss designs.
Initially, Howe trusses were constructed using a combination of wood and iron:
- Wooden diagonal members (in compression)
- Iron vertical rods (in tension)
This combination made the Howe truss particularly suitable for regions with abundant timber resources, as it allowed for cost-effective construction[1][2].
The Pratt truss, while initially also a wood-iron hybrid, quickly adapted to all-metal construction:
- Steel became the preferred material for both vertical and diagonal members
- This transition to steel enhanced durability and load-bearing capacity
The Pratt truss's compatibility with steel construction contributed significantly to its longevity and widespread use in modern bridge engineering[5].
Understanding how each truss type handles different load scenarios is crucial for determining their optimal applications.
Howe trusses excel under concentrated loads, making them ideal for:
- Railroad bridges, where heavy locomotives create point loads
- Structures with centralized weight distribution
A study conducted by Benjamin E. Bailey demonstrated that the Howe truss outperformed the Pratt truss when subjected to loads concentrated at the top center of the bridge[1].
Pratt trusses are optimized for distributed loads, making them suitable for:
- Highway bridges, where traffic creates an even load distribution
- Structures requiring consistent load-bearing across their span
The same study showed that the Pratt truss exhibited superior strength when the load was distributed across the entire top of the bridge[1].
The effective span length of a bridge is a critical factor in design selection.
Howe trusses are generally effective for:
- Spans up to 150 feet (46 meters)
- Shorter to medium-length bridges
Their limitation in span length is partly due to the increased compression forces in longer structures, which can lead to buckling in wooden diagonal members.
Pratt trusses can accommodate longer distances:
- Effective for spans up to 250 feet (76 meters) and beyond
- Commonly used for medium to long-span bridges
The ability of Pratt trusses to span greater distances contributed to their widespread adoption in railroad and highway bridge construction[4][5].
The cost-effectiveness of each truss type varies based on several factors.
- Lower material costs when using wood for diagonal members
- Potentially higher labor costs due to the need for specialized prestressing
- More economical in timber-rich regions
- Higher initial material costs due to the use of steel
- Lower labor costs thanks to simplified assembly and statically determinate design
- More cost-effective for longer spans and in areas where steel is readily available
The long-term performance and upkeep requirements differ between the two truss types.
- Requires periodic adjustment of nuts on vertical posts to equalize strain
- Wood components may need replacement due to weathering or insect damage
- Generally more maintenance-intensive due to the use of organic materials
- Steel components offer greater durability and resistance to environmental factors
- Requires regular inspection and painting to prevent corrosion
- Generally lower long-term maintenance costs compared to wooden trusses
While both truss designs have historical significance, their current usage differs significantly.
- Primarily preserved in historic structures
- Used in restoration projects of 19th-century bridges
- Occasionally employed in specialized wooden structures or where aesthetic considerations favor traditional designs
- Continues to be widely used in modern bridge construction
- Adapted for use in various structural applications beyond bridges
- Serves as a foundation for more complex truss designs in contemporary architecture
The choice between Howe and Pratt trusses hinges on load type, span length, and material availability. Pratt trusses dominate modern engineering for their adaptability to distributed loads and steel-based durability. Howe trusses remain relevant for historical preservation and scenarios requiring centralized load capacity. Both designs underscore the ingenuity of 19th-century engineering, continuing to influence infrastructure development today.
Understanding the strengths and limitations of each truss type allows engineers and architects to make informed decisions when designing bridges and other load-bearing structures. The enduring legacy of both Howe and Pratt trusses in structural engineering serves as a testament to their innovative designs and the lasting impact of 19th-century ingenuity on modern construction practices.
The diagonal members slope toward the center in Howe trusses (compression) and outward in Pratt trusses (tension).
Pratt trusses are stronger for highways due to their superior handling of distributed traffic loads.
Howe trusses often use wood, while Pratt trusses are typically steel, though hybrid designs exist.
Their limited span length and susceptibility to lateral forces make them less practical for modern large-scale projects.
Yes, due to steel material costs, though their simpler design reduces labor expenses.
