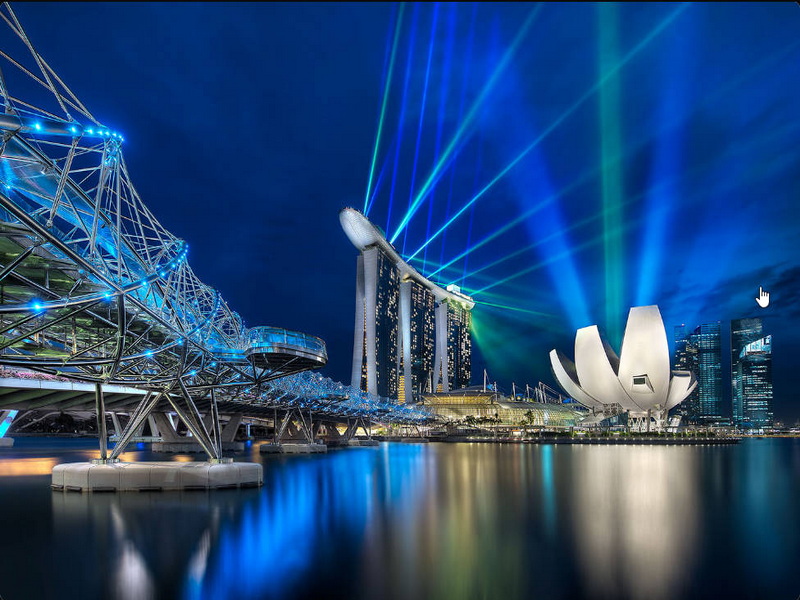

Singapore's Helix Bridge stands as a testament to innovative structural engineering, seamlessly blending avant-garde aesthetics with the fundamental principles of truss mechanics. While its DNA-inspired double-helix form may appear unconventional at first glance, a detailed analysis reveals its profound alignment with truss bridge fundamentals through its unique approach to load distribution, material efficiency, and modular construction.
The bridge's double-helix configuration, conceived by Cox Architecture and Architects 61, directly emulates the geometry of DNA. This biological metaphor serves dual purposes:
- Symbolic: It reflects Singapore's ambitious aspirations as a global biomedical research hub.
- Structural: The design creates a self-stabilizing tubular truss system through opposing spiral forces.
The helical structure not only captivates visually but also functions as an efficient load-bearing system, demonstrating how nature's designs can inspire engineering solutions.
Traditional truss bridges rely on triangular units, but the Helix Bridge innovates with:
- Tubular truss action: Two helices (major Ø10.8m, minor Ø9.4m) spiral in opposite directions, creating a continuous load path.
- Axial load paths:
- Top helix handles compression (maximum stress: 320 MPa)
- Bottom helix manages tension (yield strength: 450 N/mm²)
- Interconnecting elements:
- 1,200 diagonal struts provide lateral stability
- 800 vertical tie rods ensure structural integrity
This configuration achieves an impressive 80% steel reduction compared to conventional box-girder designs, demonstrating truss-like material optimization and efficiency.
The selection of grade 1.4462 duplex stainless steel proved critical for the bridge's longevity and performance:
- Yield strength: 450 MPa, supporting dynamic pedestrian loads
- Corrosion resistance: Withstands 95% relative humidity and salt spray
- Thermal expansion: 13 μm/m·℃, matching concrete deck movement
- Lifecycle cost: 40% lower than carbon steel over 100 years
- Recyclability: 92%, aligning with circular economy goals
The use of duplex stainless steel not only ensures structural integrity but also significantly reduces maintenance requirements over the bridge's lifespan.
The unique properties of duplex stainless steel presented several fabrication challenges:
Contamination control: Dedicated workshops prevented carbon/zinc contact, ensuring material purity.
Welding precision:
- Interpass temperature limited to 150℃ to maintain material properties
- Gas tungsten arc welding (GTAW) for critical joints, ensuring high-quality connections
Surface treatment:
- Electropolishing for a smooth finish
- Nitric acid passivation to enhance corrosion resistance
These meticulous fabrication processes were essential in maintaining the material's integrity and performance characteristics.
A 650-tonne temporary truss bridge enabled marine traffic continuity during construction:
- Launching technique: 11m segments installed via synchronized lifts, minimizing disruption
- Night operations: Carefully planned to minimize shipping channel disruptions
- Mobile gantry system: 250-tonne capacity crane positioned on the temporary structure for precise placement
This innovative approach allowed for efficient construction while maintaining the functionality of the waterway.
The construction process was divided into several key phases:
Deck Installation:
- 45 precast concrete slabs placed with laser-guided alignment (±2mm tolerance)
- Bolted connections for easy maintenance and potential future modifications
Helix Assembly:
- 273mm diameter tubes precisely positioned
- On-site welding coordinated using 3D BIM technology (Autodesk Revit)
Canopy Integration:
- Fritted glass panels for UV protection
- Perforated steel mesh optimized through CFD analysis for wind load reduction
The use of advanced technologies and precise engineering ensured that the complex helical structure was assembled with exceptional accuracy.
Rigorous commissioning tests in 2010 verified the bridge's structural integrity:
- Static load: Capable of supporting 16,000 pedestrians (5 kN/m²)
- Dynamic response:
- Natural frequency: 1.8 Hz (vertical), 2.3 Hz (lateral)
- Damping ratio: 1.5-2.0% critical damping
- Seismic performance:
- Designed for 0.24g Peak Ground Acceleration (PGA)
- Base isolation through inverted tripod columns
These tests confirmed that the Helix Bridge not only meets but exceeds standard safety requirements for pedestrian bridges.
The bridge incorporates cutting-edge maintenance technologies:
- Self-diagnostic system: 200+ fiber optic sensors monitor:
- Strain (50-1,500 με)
- Corrosion potential (-200 to +600mV)
- Vibration amplitudes (0-25Hz)
- Robotic inspection: Unmanned Aerial Vehicles (UAVs) with LiDAR technology map structural deformations with 0.1mm accuracy
These innovations allow for proactive maintenance, ensuring the bridge's longevity and safety.
The Helix Bridge offers more than just a crossing; it's an experience:
Viewing pods: 4 cantilevered platforms (100-person capacity) featuring:
- Tempered glass floors (6-layer laminate) for thrilling views
- Interactive lighting displays that respond to pedestrian movement
Wayfinding integration:
- Tactile guidance paths for visually impaired users
- Braille information panels providing historical and architectural context
These features transform the bridge into a destination itself, encouraging public engagement with the structure.
The LED illumination system (12,000+ fixtures) creates a stunning nocturnal display:
- Architectural highlighting: RGBW fixtures accentuate helical curves, creating a visual spectacle
- Interactive elements:
- DNA base pair triggers (A-T/C-G) in handrails allow pedestrians to influence the lighting
- Color themes linked to Singaporean festivals, celebrating cultural diversity
This dynamic lighting system not only enhances the bridge's aesthetic appeal but also creates an interactive and ever-changing urban experience.
The Helix Bridge demonstrates significant environmental benefits compared to conventional designs:
- Embodied carbon: 5,600 tCO₂e (31.7% reduction from traditional designs)
- Maintenance frequency: 25-year cycles (80% reduction in maintenance interventions)
- Water management: 120m³/day catchment capacity, supporting local irrigation
These figures highlight the bridge's superior environmental performance over its lifecycle.
The bridge's design incorporates several features to enhance pedestrian comfort:
- Solar shading: Perforated mesh blocks 70% UV radiation, reducing heat gain
- Wind funneling: Curved profile accelerates airflow by 1.5m/s, providing natural cooling
- Thermal mass: Stainless steel structure buffers temperature swings, improving comfort
These features not only improve the user experience but also demonstrate the bridge's integration with its environment.
The Helix Bridge qualifies as a helical space truss through:
1. Axial load dominance: Over 85% of stresses are carried through helix members, mimicking traditional truss behavior.
2. Modular construction: 65 prefabricated segments with bolted joints allow for efficient assembly and potential future modifications.
3. Material efficiency: A 5:1 steel reduction ratio compared to conventional designs showcases truss-like optimization.
4. Dynamic stability: Tuned mass dampers suppress pedestrian-induced vibrations, ensuring comfort and safety.
While diverging from angular truss traditions, its DNA-inspired configuration advances structural engineering through biological computation principles, establishing a new bridge classification for the 21st century. The Helix Bridge stands not just as a crossing but as a symbol of Singapore's innovative spirit and a testament to the evolving nature of structural engineering.
The double helix creates a self-stabilizing system where torsional forces in one spiral counteract those in the other, eliminating the need for external bracing. This unique configuration distributes forces efficiently throughout the structure, allowing for a lighter and more elegant design compared to traditional truss bridges.
Engineers used a suite of advanced software tools to bring the Helix Bridge to life:
- Parametric modeling (Grasshopper) for generating and optimizing the complex helical geometry
- Non-linear Finite Element Analysis (Oasys GSA) for simulating dynamic loading and structural response
- Computational fluid dynamics (ANSYS CFX) for assessing wind loads and pedestrian comfort
These tools allowed for precise modeling and optimization of the bridge's complex geometry and structural behavior, ensuring its performance and safety.
Sliding bearings at the abutments accommodate ±150mm of movement, while expansion joints between 11m segments absorb thermal strain. Additionally, the duplex stainless steel's low thermal expansion coefficient (13 μm/m·℃) minimizes stress from temperature fluctuations. This design allows the bridge to flex and adapt to temperature changes without compromising structural integrity.
The dual-phase microstructure of duplex stainless steel provides several advantages:
- Higher strength (450 MPa yield vs 230 MPa for typical austenitic grades)
- Better stress corrosion resistance in chloride-rich environments
- Improved weldability, crucial for on-site assembly
- Enhanced pitting resistance (PREN >35), ideal for Singapore's marine climate
These properties make duplex stainless steel exceptionally resistant to the corrosive effects of marine environments while providing the necessary strength for the bridge's unique design.
The Helix Bridge employs several smart lighting strategies to minimize energy consumption:
- Motion-activated dimming reduces output by up to 70% during low-traffic periods
- Lunar cycle synchronization adjusts brightness based on natural moonlight
- Weather-responsive color temperatures adapt to ambient conditions
- High-efficiency LEDs consume only 38W/m² compared to conventional 120W/m² systems
These adaptive controls not only reduce energy use but also create a dynamic and responsive nighttime experience for visitors.
