Designing a footbridge demands meticulous planning, adherence to safety standards, and precision in translating concepts into constructible plans. AutoCAD's robust toolkit enables engineers to achieve these goals efficiently. This comprehensive guide explores advanced techniques for creating structural details, integrating analysis workflows, and optimizing collaboration across disciplines.

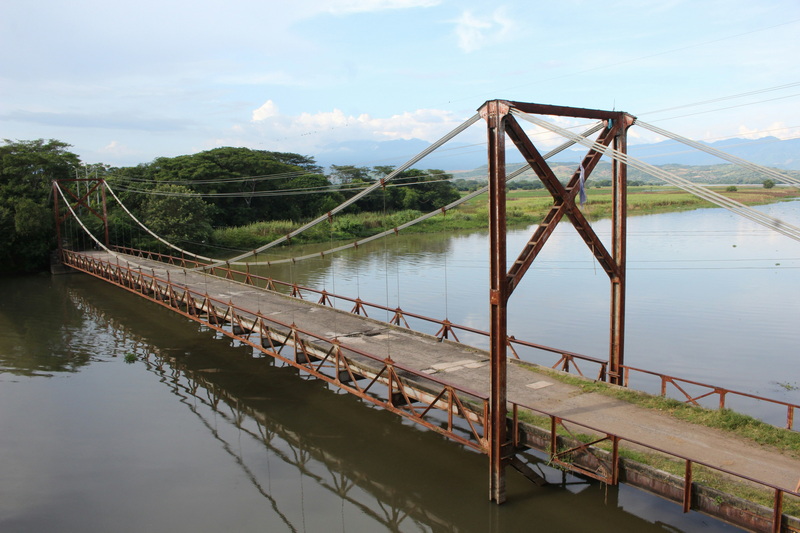

Footbridges vary widely in form-from simple beam spans to curved suspension structures-but share core design considerations:
- Load Requirements: Pedestrian live loads (typically 4–5 kN/m²), dynamic effects (such as crowd-induced vibrations), and environmental loads (wind, snow).
- Span and Deck Width: Standard spans range from 10–60 meters, with deck widths between 2–4 meters depending on pedestrian traffic volume.
Material Selection:
- Concrete: Ideal for short spans (30m) due to high strength-to-weight ratio.
- Timber: Used for aesthetic integration in natural environments.
Align designs with regional codes such as AASHTO LRFD (U.S.), Eurocodes (EU), or BS 5400 (UK). For example, Network Rail's Beacon footbridge standard specifies 20m maximum spans with 2.4–4m deck widths.
1. Unit Precision:
- Use `UNITS` to set decimal precision (e.g., millimeters for metric projects).
- Enable `DYNMODE` for dynamic input during sketching.
2. Layer Standardization:
- Create layers for Deck, Supports, Rebar, Dimensions, and Annotations.
- Assign colors: Blue for concrete, red for steel, and green for terrain.
3. Template Creation:
- Save frequently used blocks (e.g., rebar symbols, section markers) in a `DWT` template file.
- Import LiDAR or photogrammetry data via `IMPORT` > Point Cloud.
- Generate 3D terrain surfaces with `PLANESURF` and align bridge foundations using `ALIGN`.
1. Gridline Setup:
- Use `XLINES` to establish centerlines and abutment positions.
- For curved bridges, define arc radii with `CIRCLE` and trim excess segments.
2. Load Path Visualization:
- Annotate dead loads (deck self-weight) and live loads using `MLEADER`.
- Apply load combinations (1.2DL + 1.6LL) per Eurocode 0.
For spans exceeding 20m, consider truss or cable-stayed systems. Model preliminary truss members using `POLYLINE` with 200x200mm steel sections.
1. Cross-Section Detailing:
- Draw reinforced concrete slabs (250mm thick) with top/bottom reinforcement layers. Use `HATCH` with ANSI31 pattern for concrete and ANSI34 for steel.
- For steel grating decks, create a 50mm thick profile with `ARRAY` to replicate 10mm gaps between flats.
2. Drainage Integration:
- Add 1% crossfall using `SLOPE` command. Position 100mm diameter drains every 5 meters.
1. Piers and Abutments:
- Model rectangular piers (600x1200mm) with `RECTANGLE`. Include 20mm chamfers using `FILLET`.
- Detail pile caps with 6–8 Ø300mm concrete piles spaced 1.5m apart.
2. Connection Details:
- Design pinned connections for steel trusses using 20mm thick gusset plates and M24 bolts.
- Create 1.1m high railings with vertical balusters at 100mm spacing using `ARRAY`. Apply anti-slip textures via `MATBROWSER` > Safety Surfaces.
1. Dynamic Blocks:
- Convert standard details (e.g., bolt assemblies) into dynamic blocks with stretch and rotate parameters.
2. Assembly Modeling:
- Construct 3D truss systems using `SWEEP` along predefined paths. Assign circular hollow sections (CHS) to top chords and square hollow sections (SHS) to bottom chords.
1. Export to Autodesk Structural Bridge Design:
- Use `EXPORT` > .IFC to transfer models. Run linear static analysis for stress distribution and deflection checks.
2. Result Implementation:
- Re-import optimized member sizes into AutoCAD. Adjust beam depths using `PROPERTIES` palette.
- Apply materials and lighting effects with the `RENDER` command to create photorealistic visualizations for client presentations.
1. Viewport Management:
- In paper space, create viewports scaled 1:50 for plans and 1:20 for details. Freeze terrain layers in detail views.
2. Title Block Automation:
- Link sheet metadata (project name, date) to attributes using `FIELD` command.
- Use `QLEADER` for callouts referencing welding specs (e.g., "Fillet weld 6mm continuous").
- Label rebar with tags like "T16-200" (16mm bars at 200mm spacing).
- Save drawings as PDF or DWF for sharing, or use `EXPORT` to generate CNC-ready files (e.g., DXF for laser cutting).
- Export 3D models to Revit via `AECTOACAD` for clash detection and MEP coordination.
- Publish drawings to Autodesk Docs for stakeholder markups. Track revisions using `DWGCONVERT` > Markup Set Manager.
- Run `LAYTRANS` to map layers to ODOT Bridge CAD Manual standards (e.g., "C-Deck" for concrete decks).
- Simulate construction sequences using `VIEWBASE` to generate isometric exploded views.
- Span: 15m
Key Details:
- 300mm thick post-tensioned slab with parabolic tendon profile.
- Integral abutments with 8m long H-pile foundations.
- Span: 60m curved elevation
Key Details:
- CHS top chords (Ø200mm) and SHS bottom chords (150x150mm).
- 3D finite element model validating 45mm maximum deflection under crowd loading.
Mastering AutoCAD for footbridge design requires balancing technical precision with regulatory compliance. By leveraging 3D modeling, FEA integration, and collaborative BIM workflows, engineers can deliver cost-effective, safe, and aesthetically pleasing structures. Continuous iteration-from initial sketches to as-built drawings-ensures alignment with client needs and construction realities. The ability to coordinate across disciplines, validate designs through simulation, and produce clear, fabrication-ready documents is essential for successful footbridge projects. As technology evolves, integrating AutoCAD with cloud-based platforms and advanced analysis tools will further streamline the design and construction process, ensuring footbridges are not only functional but also innovative and sustainable.
"Use `SPLINE` to draw tendon profiles, then create 2D details with `DIMBREAK` to show stressing jacks and anchorages. This approach allows you to visualize the path of tendons within the slab and provide clear instructions for construction teams."
"Create alignment axes with `POLAR ARRAY`, then generate girder elevations using `OFFSET` at 2m intervals. This method ensures that girders follow the bridge's curvature accurately, maintaining structural integrity and aesthetic appeal."
"Model 50mm neoprene joints using `HATCH` with AR-SAND pattern. Include 10mm movement tolerance in abutment details. Proper expansion joint detailing is crucial to accommodate thermal movements and prevent cracking."
"Yes. Use `DATAEXTRACTION` to generate schedules from block attributes in reinforcement details. This automation streamlines the process of creating accurate material lists for procurement and cost estimation."
"Save final drawings as PDF/A-3b for long-term storage. Export 3D models to NWD format using `NAVISWORKS`. These formats ensure that your project documentation remains accessible and secure for future reference or regulatory review."
