Pedestrian bridges serve as vital connectors in urban and rural landscapes, ensuring safe passage over obstacles such as roads, rivers, and railways. One of the most critical safety features of any pedestrian bridge is its railing system. The height and design of these railings are not merely aesthetic choices; they are governed by rigorous codes and standards designed to protect users from falls and other hazards. This article explores in depth the question: "How High Should Railings Be on A Pedestrian Bridge?" We'll examine international standards, factors influencing railing height, best practices in design, and address common questions about pedestrian bridge railings.
Pedestrian bridge railings are primarily intended to:
- Prevent accidental falls from the bridge deck.
- Provide psychological comfort to users, especially in elevated or exposed locations.
- Serve as a barrier against inadvertent entry onto vehicular lanes in cases of shared bridges.
- Enhance the overall aesthetic and architectural integration of the bridge into its surroundings.
The effectiveness of a railing system is determined by its height, structural strength, spacing of elements, and suitability for the bridge's intended users.
The American Association of State Highway and Transportation Officials (AASHTO) sets the benchmark for pedestrian bridge railing design in the United States and is widely referenced internationally. According to AASHTO standards, the minimum height for pedestrian railings on bridges is typically 42 inches (about 1.07 meters) measured vertically from the top surface of the bridge deck or walkway to the top of the railing. This height is considered sufficient to prevent most adults and children from accidentally toppling over the barrier.
For bridges that are also intended for bicycle traffic, the minimum recommended railing height increases to 54 inches (about 1.37 meters) to account for the higher center of gravity and increased risk associated with cyclists.
The Occupational Safety and Health Administration (OSHA) also provides guidance, especially for bridges in workplace or industrial settings. OSHA requires that railings be at least 42 inches high for pedestrian traffic. These standards are commonly adopted for trail bridges in remote or low-risk areas.
In Canada, the Canadian Highway Bridge Design Code (CHBDC) stipulates a minimum railing height of 1050 mm (approximately 41.3 inches) for pedestrian-only barriers and 1100 mm (about 43.3 inches) for combination pedestrian/vehicle barriers. European standards, such as those referenced in the UK and EU, generally align with these figures, often specifying railing heights between 1.1 and 1.2 meters for pedestrian bridges.
While codes provide minimum requirements, several factors may necessitate higher or more robust railings:
- Bridge Use: Bridges serving both pedestrians and cyclists require higher railings.
- Location and Exposure: Bridges in windy, high-traffic, or elevated locations may require additional height for safety.
- User Demographics: Bridges frequently used by children, the elderly, or persons with disabilities may benefit from higher or more enclosed railings.
- Aesthetic and Architectural Considerations: The visual impact of the railing on the surrounding environment may influence design choices, balancing transparency with safety.
- Jurisdictional Variations: Local building codes and regulations may impose stricter requirements than national or international standards.
To prevent children or small objects from passing through the railing, codes often specify maximum allowable openings. Common requirements include:
- Openings should not allow a 4-inch (100 mm) sphere to pass through in the lower portion of the railing.
- For the upper portion, larger openings may be permitted, but typically not exceeding 6 inches (150 mm).
Railings must withstand specified loads applied horizontally and vertically. For example, AASHTO requires that pedestrian railings be capable of resisting a concentrated load of 200 pounds (about 0.89 kN) applied in any direction at any point along the top rail. This ensures the railing remains secure even under forceful impact.
Common materials for pedestrian bridge railings include:
- Steel (galvanized or stainless for corrosion resistance)
- Aluminum
- Reinforced concrete
- Wood (primarily for low-traffic or rustic settings)
Material choice affects not only aesthetics and cost but also long-term durability and maintenance requirements.
Certain scenarios call for railings higher than the standard 42 inches:
- Bicycle and Equestrian Bridges: As noted, a minimum of 54 inches is recommended.
- Bridges with Steep Approaches or High Curvature: To account for increased risk of falls due to momentum or loss of balance.
- High Wind Areas: To provide additional protection against wind-induced instability.
- Bridges with High Drop-Offs or Over Water: Psychological comfort and safety can be enhanced with taller railings.
- Urban Bridges with Heavy Pedestrian Traffic: Densely populated areas may require additional safety measures.
Always design to the most stringent applicable code. If a bridge will serve multiple user groups (e.g., pedestrians and cyclists), use the highest relevant standard.
Railings should not impede access for people with disabilities. Handrails, if included, should be at a height and shape that is easily graspable.

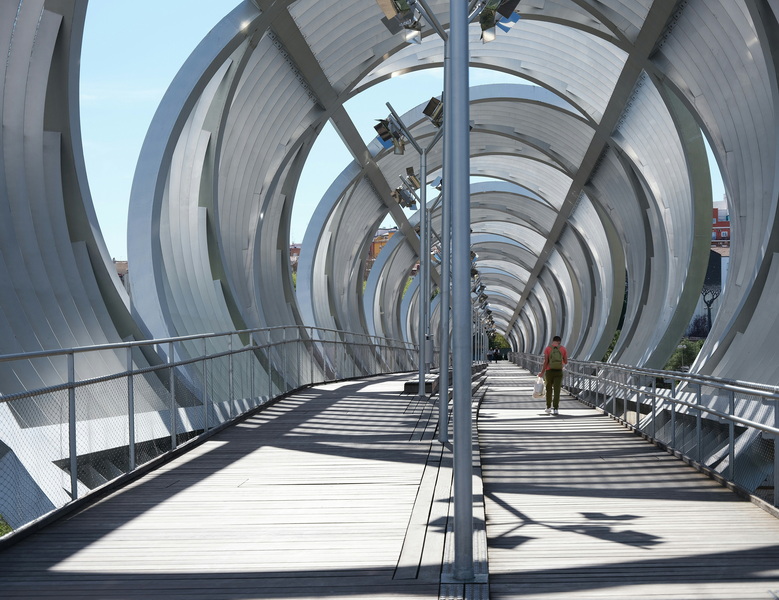

Transparent or open designs (e.g., cable railings, glass panels) can improve sightlines and user comfort without compromising safety.
Railings are prominent visual elements. Their design should complement the bridge and its environment, using materials and forms that enhance the overall appearance.
Select materials and finishes that resist corrosion, vandalism, and weathering. Easy access for inspection and repair should be considered in the design phase.
Determining "How High Should Railings Be on A Pedestrian Bridge?" involves a careful balance between safety, usability, aesthetics, and regulatory compliance. The widely accepted standard is a minimum height of 42 inches for pedestrian-only bridges, increasing to 54 inches for bridges also used by cyclists. However, the optimal height may vary depending on local codes, user demographics, environmental conditions, and specific bridge functions. Designers and engineers must always prioritize user safety, consult relevant standards, and consider the unique context of each bridge project. By doing so, they ensure that pedestrian bridges remain safe, accessible, and visually harmonious elements of our built environment.
When selecting a material for pedestrian bridge railings, consider durability, maintenance requirements, resistance to corrosion (especially in harsh climates), cost, aesthetic compatibility with the bridge and surroundings, and compliance with safety standards. Steel, aluminum, and reinforced concrete are commonly used for their strength and longevity, while wood may be suitable for rustic or low-traffic bridges.
Local building codes may impose stricter requirements than national or international standards. Factors such as climate, local usage patterns, and historical context can influence these regulations. Always consult local authorities during the design phase to ensure compliance and avoid costly redesigns or delays.

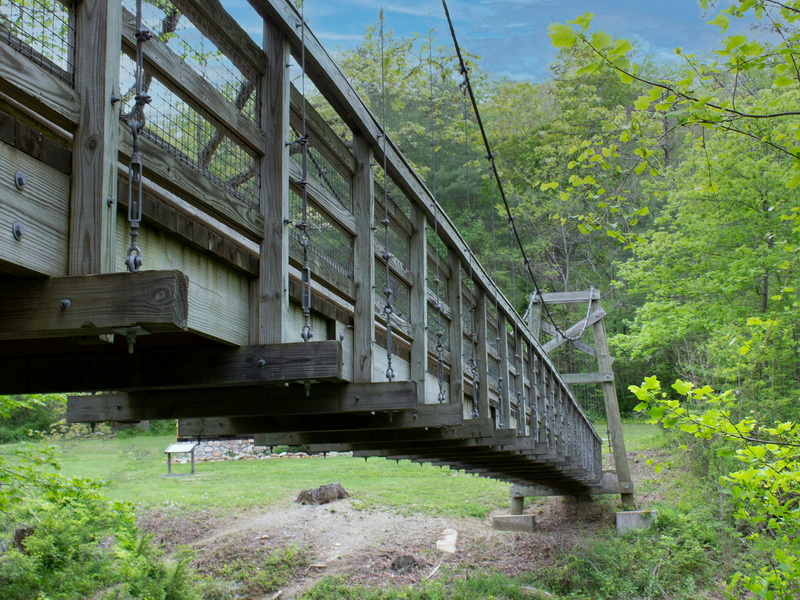

Yes, in parks or natural settings, railing designs often aim to minimize visual impact and blend with the environment. Materials like wood or weathering steel may be used, and railings may be designed to be less obtrusive while still meeting safety standards. In remote, low-risk areas, codes may allow for simpler or lower railings, but user safety should never be compromised.
Regular inspection and maintenance are crucial for ensuring the continued safety of pedestrian bridge railings. Inspections should occur at least annually, or more frequently in harsh environments or high-traffic locations. Maintenance tasks include checking for corrosion, loose fittings, damage from impacts, and ensuring that all components meet safety standards.
Yes, decorative elements can enhance the visual appeal of railings, but they must not reduce the structural integrity or safety of the system. All decorative features should be securely attached, not create climbable surfaces, and maintain required height and spacing standards.
