Steel bridge supports play a critical role in ensuring the stability and safety of bridge structures. As vital components of bridge engineering, these supports are designed to bear the loads imposed by traffic, environmental factors, and their own weight while maintaining structural integrity over time. This article explores how steel bridge supports enhance overall bridge stability, examining their design, materials, and the engineering principles that underpin their effectiveness.

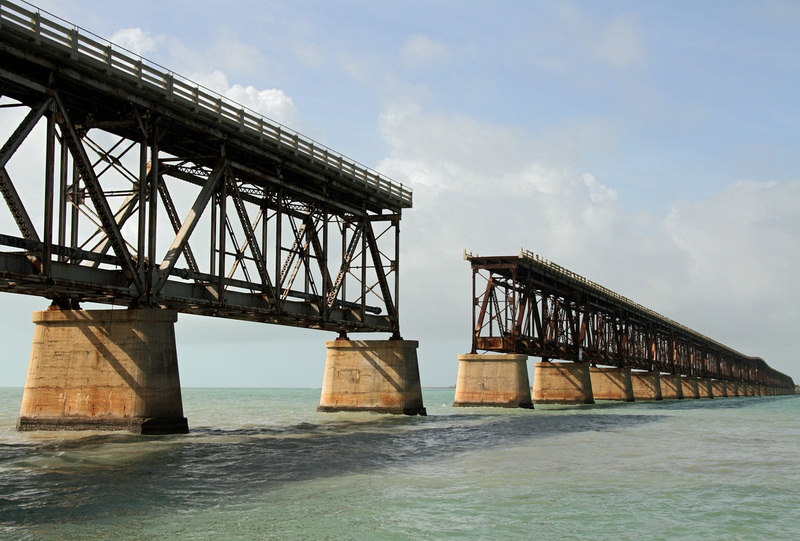

Steel bridge supports are structural elements that provide vertical and lateral support to the bridge deck and superstructure. They are designed to transfer loads from the bridge deck to the foundation and ultimately to the ground. The primary types of steel supports used in bridges include:
- Piers: Vertical structures that support the bridge deck and transfer loads to the foundation.
- Abutments: End supports that anchor the bridge at its terminus, providing stability against lateral forces.
- Columns: Vertical members that support beams or girders, crucial for load distribution.
- Braces: Diagonal members that provide lateral stability and prevent buckling.
Steel is favored for bridge supports due to its high strength-to-weight ratio, ductility, and ability to withstand dynamic loads. Its properties allow for slender designs that reduce material usage while maintaining strength. Additionally, steel can be treated with protective coatings to enhance corrosion resistance, ensuring longevity even in harsh environments.
One of the key functions of steel bridge supports is effective load distribution. When vehicles travel across a bridge, they exert dynamic loads that vary in magnitude and direction. Steel supports are engineered to manage these loads through various mechanisms:
- Direct Load Transfer: Steel supports directly transfer vertical loads from the bridge deck to the foundation. This process involves distributing the weight evenly across multiple supports to prevent localized stress concentrations.
- Load Path Continuity: A well-designed load path ensures that forces are transferred efficiently from the deck through the supports to the ground. This continuity is crucial for maintaining stability during heavy traffic or adverse weather conditions.
- Bracing Systems: Steel braces are often incorporated into bridge designs to resist lateral forces such as wind or seismic activity. These braces help maintain structural integrity by preventing excessive sway or deformation.
- Moment Resistance: Some steel supports are designed to resist bending moments caused by uneven loading or dynamic impacts. This resistance is essential for maintaining alignment and preventing structural failure.
The design of steel bridge supports involves careful consideration of various factors that influence overall stability:
Choosing the appropriate grade of steel is vital for ensuring strength and durability. Common types of steel used in bridge construction include:
- S355 Steel: Widely used for highway bridges due to its balance between strength and ductility.
- Weathering Steel: Offers enhanced corrosion resistance, making it suitable for exposed conditions with minimal maintenance requirements.
The geometry of steel supports significantly affects their performance:
- Cross-sectional Shapes: Different shapes (e.g., I-beams, box sections) provide varying levels of strength and stiffness. Engineers select shapes based on anticipated loads and aesthetic considerations.
- Height and Spacing: The height of columns and spacing between supports must be optimized to ensure adequate load distribution while minimizing material usage.
Connections between steel components are critical for maintaining stability:
- Welded Connections: Provide continuous load paths but require careful inspection to ensure quality.
- Bolted Connections: Allow for easier assembly and disassembly but must be designed to handle shear forces effectively.
Steel bridge supports must withstand various environmental factors that can impact their performance over time:
Steel is susceptible to corrosion when exposed to moisture and chemicals. To mitigate this risk:
- Protective Coatings: Applying coatings such as galvanization or paint helps protect against corrosion, extending the lifespan of steel supports.
- Weathering Steel: This type of steel develops a protective rust layer that inhibits further corrosion, making it ideal for outdoor applications with minimal maintenance needs.
Temperature fluctuations can cause steel to expand and contract, potentially leading to structural issues:
- Expansion Joints: Incorporating expansion joints allows for movement without compromising structural integrity, accommodating thermal expansion while maintaining stability.
Regular maintenance is essential for ensuring the long-term stability of steel bridge supports:
Routine inspections help identify potential issues before they escalate into serious problems:
- Visual Inspections: Regular visual checks can reveal signs of wear, corrosion, or misalignment.
- Non-Destructive Testing (NDT): Techniques such as ultrasonic testing or magnetic particle inspection can detect internal flaws without damaging the structure.
When issues are identified, timely repairs are crucial for maintaining stability:
- Corrosion Treatment: Addressing corrosion through cleaning and re-coating can prevent further deterioration.
- Structural Reinforcement: Adding additional bracing or strengthening connections can enhance overall stability in response to increased loads or damage.
Steel bridge supports are fundamental components that enhance overall bridge stability through effective load distribution, robust design considerations, environmental resilience, and diligent maintenance practices. By leveraging the unique properties of steel—such as its strength-to-weight ratio and ductility—engineers can create safe and reliable structures capable of withstanding various challenges over time. As infrastructure demands continue to evolve, ongoing innovations in materials and design will further enhance the performance of steel bridge supports, ensuring they remain a cornerstone of modern engineering solutions.
Common types include S355 steel for highway bridges, weathering steel for corrosion resistance, heat-treated carbon steel for enhanced strength, and stainless steel for aesthetic applications.
Engineers calculate load capacity based on material properties, structural geometry, connection design, and anticipated traffic loads using established engineering standards and codes.
Essential practices include routine visual inspections, non-destructive testing (NDT), corrosion treatment with protective coatings, and timely repairs or reinforcements as needed.
Corrosion can weaken steel over time by reducing its cross-sectional area and load-bearing capacity; therefore, protective measures are critical in preventing deterioration.
Bracing systems provide lateral support that resists wind forces and seismic activity, helping maintain alignment and preventing excessive movement during extreme conditions.
