The Millau Viaduct, an engineering marvel located in southern France, exemplifies the innovative use of steel box beams in modern bridge construction. This article delves into the design, structural advantages, and construction techniques associated with the steel box beams used in this iconic structure.
The Millau Viaduct is a multi-span cable-stayed bridge that spans the Tarn River valley. It is renowned for being one of the tallest and longest bridges in the world, with its tallest mast reaching an impressive height of 343 meters, surpassing even the Eiffel Tower. Designed by the French engineer Michel Virlogeux and the British architect Norman Foster, the bridge stretches 2,460 meters in length and features seven slender piers that support the A75 motorway as it crosses the gorge.
The bridge not only serves as a vital transportation link but also as a stunning architectural landmark that enhances the natural beauty of the surrounding landscape. Its elegant design and towering presence have made it a popular tourist attraction, drawing visitors from around the globe who come to marvel at its engineering and scenic views. The Millau Viaduct is a testament to the harmonious blend of functionality and aesthetics in modern infrastructure.
A defining characteristic of the Millau Viaduct is its continuous steel box girder deck, which serves as the foundation for the road surface. The design of the bridge required a lightweight yet robust deck to accommodate the long spans and the various forces exerted by traffic loads and environmental factors, such as wind.
The choice of a continuous steel box girder was pivotal in achieving the necessary structural integrity while minimizing the overall weight of the bridge. This design approach not only enhances the bridge's performance under load but also contributes to its sleek appearance. The integration of advanced engineering techniques and materials has allowed the Millau Viaduct to withstand the challenges posed by its environment, ensuring its longevity and reliability.

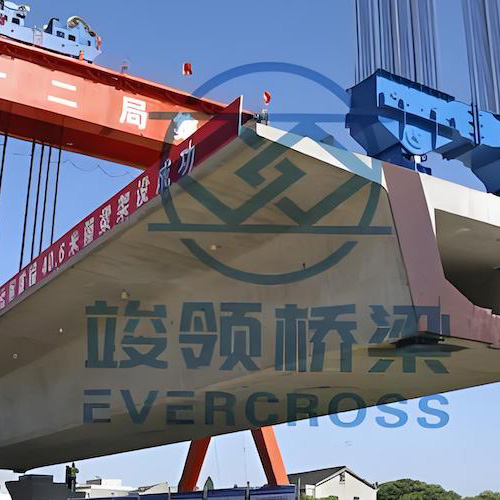

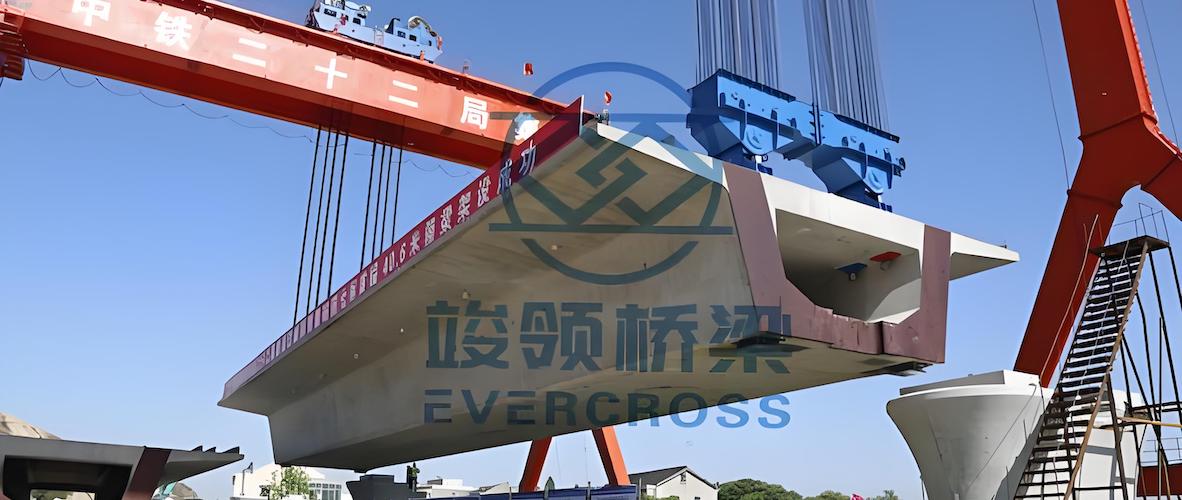

The deck of the Millau Viaduct is constructed from a continuous steel box girder, which consists of a rectangular hollow section. This closed-section box beam is particularly well-suited for the application due to its ability to resist both torsional and bending stresses, which are critical factors in the design of long-span bridges.
The steel box girder deck measures 32 meters in width and 4.20 meters in depth, supported along its length by two steel webs. The box section was fabricated using high-strength steel plates, carefully designed to optimize the balance between weight and load-bearing capacity. This choice of a hollow box section ensures that the bridge remains stable under dynamic loads, including those from wind and traffic, while minimizing deflection over its long spans.
The fabrication process involved cutting-edge technology and precision engineering, allowing for the creation of components that meet stringent quality standards. Each section of the box girder was meticulously crafted to ensure that it could withstand the forces it would encounter throughout its lifespan. This attention to detail in the manufacturing process is a key factor in the overall success of the bridge's design.
One of the significant challenges in designing the Millau Viaduct was managing torsional forces due to the structure's length and height. Wind speeds in the valley can reach substantial levels, creating large torsional moments along the bridge. The use of steel box beams allows the structure to efficiently resist these torsional forces, maintaining the stability of the deck even under extreme conditions. In contrast, open-section beams, such as traditional I-beams or H-beams, would have been more susceptible to twisting and would not have provided the necessary rigidity for such an application.
The design team conducted extensive wind tunnel testing to understand the aerodynamic behavior of the bridge. This research informed the final design, ensuring that the bridge could withstand the high winds typical of the region. The ability of the steel box beams to counteract torsional forces is a testament to the innovative engineering solutions employed in the project, showcasing the importance of thorough analysis and testing in modern bridge design.

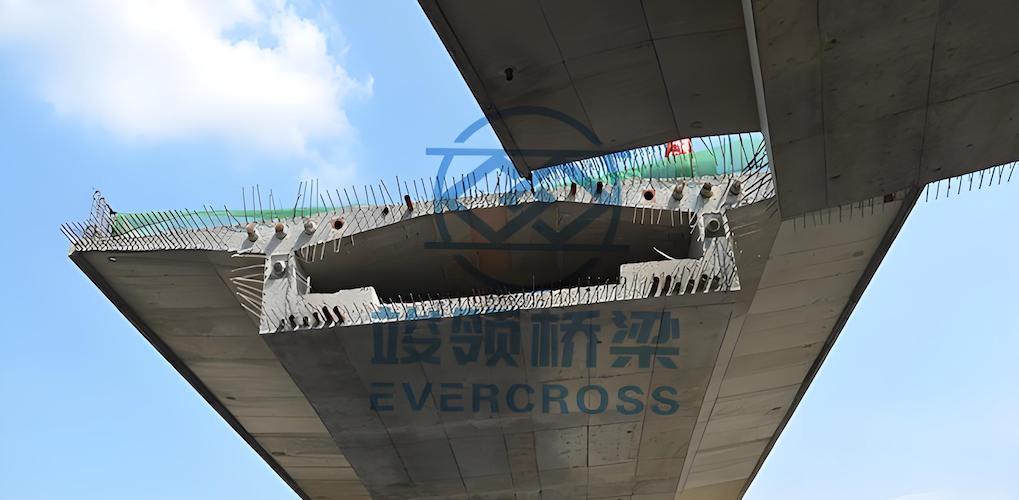

The steel box beams for the Millau Viaduct were prefabricated off-site, with sections weighing up to 600 metric tons. These prefabricated sections were then transported to the bridge site for assembly. The construction process involved sliding the deck sections horizontally onto the piers using hydraulic jacks, a method known as incremental launching.
This innovative construction method allowed the project team to build the bridge with minimal environmental disruption to the valley below, significantly reducing the time and cost associated with traditional bridge-building methods. The choice of steel for the box girders was also influenced by the material's ability to be fabricated into complex shapes with high precision, enabling the design team to achieve the necessary aerodynamic properties to minimize wind resistance and vibrations.
Incremental launching not only streamlined the construction process but also enhanced safety on-site. By minimizing the need for scaffolding and temporary supports, the method reduced the risk of accidents during construction. Additionally, the ability to launch sections of the bridge from the abutments allowed for greater control over the assembly process, ensuring that each component was accurately positioned and secured.
The use of steel box beams in the Millau Viaduct offers several structural advantages that contribute to the bridge's overall performance and durability.
One of the most critical factors in the success of the Millau Viaduct's design is the torsional rigidity provided by the steel box beam. The closed section of the box beam distributes torsional stresses uniformly, reducing the risk of twisting under high wind loads. This is particularly important for the Millau Viaduct, where the bridge spans long distances between supports and is exposed to significant wind forces at height.
The torsional rigidity of the steel box beams not only enhances the bridge's stability but also contributes to the comfort of drivers traveling across it. By minimizing vibrations and lateral movements, the design ensures a smoother ride, which is essential for maintaining safety and reducing wear on vehicles.
The design of the steel box beam offers an optimal weight-to-strength ratio, which is essential for minimizing dead load while maximizing load-bearing capacity. The lightweight nature of the steel box girder reduced the overall mass of the bridge deck, lowering the demands on the piers and foundations. This reduction in weight allowed for a more slender and aesthetically pleasing design.
The efficient use of materials in the construction of the Millau Viaduct exemplifies modern engineering principles that prioritize sustainability and resource conservation. By minimizing the amount of steel required without compromising structural integrity, the project team demonstrated a commitment to environmentally responsible construction practices.
Steel box beams provide enhanced structural efficiency, as the hollow section allows for a high degree of stiffness with minimal material usage. The closed box section also increases the moment of inertia, improving the beam’s ability to resist bending and deflection under traffic loads.
This structural efficiency translates into cost savings during both construction and maintenance phases. The reduced material requirements lower initial costs, while the durability of steel box beams minimizes the need for frequent repairs or replacements, ensuring that the bridge remains operational for decades.
The streamlined shape of the steel box girder, combined with its hollow section, enhances aerodynamic performance. Wind forces acting on the bridge deck are deflected smoothly over the surface, reducing wind-induced vibrations and lateral movements that could otherwise compromise the structural integrity of the bridge.
The design team's focus on aerodynamics not only improves the bridge's performance but also contributes to its visual appeal. The sleek lines and elegant proportions of the Millau Viaduct create a striking silhouette against the landscape, making it a celebrated example of modern architecture.
The successful implementation of steel box beams in the Millau Viaduct serves as a prime example of how innovative structural solutions can address complex engineering challenges. The project highlights the importance of torsional resistance, material efficiency, and aerodynamic considerations in the design of large-scale bridges.
Beyond bridge construction, steel box beams have found applications in various fields, including high-rise buildings, offshore platforms, and large-span roofs. In these contexts, the need for torsional resistance and load-bearing capabilities necessitates the use of closed-section beams. The design of the Millau Viaduct also illustrates the benefits of prefabrication and incremental launching techniques, which are now commonly applied in the construction of large bridges and other major infrastructure projects.
The lessons learned from the Millau Viaduct project have influenced engineering practices worldwide, encouraging the adoption of similar techniques in new construction projects. As cities continue to grow and infrastructure demands increase, the principles demonstrated in the Millau Viaduct will play a crucial role in shaping the future of civil engineering.
The Millau Viaduct stands as a testament to engineering excellence, made possible through the innovative use of steel box beams. By providing a lightweight, torsionally resistant solution capable of spanning vast distances, the steel box beam has proven to be an indispensable tool in modern bridge construction. The success of this project underscores the critical role that advanced structural design and materials science play in creating infrastructure that is not only functional but also visually stunning and environmentally efficient.
The Millau Viaduct not only enhances transportation efficiency but also serves as an enduring symbol of human ingenuity and the potential of modern engineering to overcome challenges and create lasting legacies. Its construction has set a benchmark for future projects, inspiring engineers and architects to push the boundaries of what is possible in bridge design and construction.
The primary purpose of the Millau Viaduct is to facilitate the A75 motorway, providing a vital transportation link between Paris and Barcelona while reducing traffic congestion in the town of Millau.
The key structural components of the Millau Viaduct include its seven concrete piers, the continuous steel box girder deck, and the cable-stayed system that supports the bridge deck.
The design of the steel box beams provides high torsional rigidity, allowing the bridge to resist twisting under high wind loads and maintain stability over long spans, which is crucial given the bridge's height and exposure to wind.
The incremental launching method was used for the construction of the Millau Viaduct. This method was chosen because it minimizes environmental disruption, reduces construction time, and allows for precise placement of the bridge sections.
The primary materials used in the construction of the Millau Viaduct include high-strength steel for the box girders and concrete for the piers, ensuring a balance between strength, weight, and durability.
