Bridges have long been symbols of human ingenuity, connecting communities, fostering trade, and overcoming natural obstacles. Among the many types of bridges, the Bailey bridge and the truss bridge are two of the most significant, each with unique characteristics, historical backgrounds, and engineering principles. Understanding the key structural differences between Bailey bridges and truss bridges is essential for engineers, architects, and anyone interested in civil infrastructure. This article provides an in-depth comparison of these two bridge types, exploring their history, design, construction methods, applications, advantages, limitations, and much more.
Bridge engineering has evolved over centuries, adapting to the demands of growing populations, advancing technology, and changing landscapes. Early bridges were simple structures made from wood, stone, or rope. As societies advanced, so did their engineering capabilities, leading to more complex and durable designs.
The truss bridge, with its distinctive framework of interconnected elements, emerged in the 19th century as a solution to the need for longer spans and greater load-bearing capacity. The Bailey bridge, developed during World War II, revolutionized military and emergency bridge construction by offering a modular, rapidly deployable solution. Both types of bridges have played crucial roles in shaping modern infrastructure.
A truss bridge is a type of structure that uses a truss—a framework of triangles—to support the bridge deck. The truss distributes loads efficiently, allowing the bridge to span greater distances and carry heavier weights than many other designs.
- Top and Bottom Chords: The upper and lower horizontal members of the truss, which resist compression and tension.
- Web Members: Diagonal and vertical elements connecting the chords, forming triangular units that distribute forces.
- Connections: Joints where the truss members meet, often using rivets, bolts, or welding.
There are several common truss configurations, including:
- Pratt Truss: Diagonal members slope toward the center, ideal for longer spans.
- Howe Truss: Diagonals slope away from the center, often used in railroad bridges.
- Warren Truss: Uses equilateral triangles, providing a balance between material efficiency and strength.
- K-Truss, Parker Truss, and Others: Variations designed for specific load or span requirements.
The triangular geometry of a truss bridge ensures that loads are distributed through tension and compression, minimizing bending moments and maximizing efficiency. This allows truss bridges to be constructed from relatively lightweight materials while maintaining high strength.
Truss bridges were pivotal in the expansion of railroads and highways, enabling the construction of longer, more reliable crossings. Their modularity and adaptability made them popular throughout the 19th and early 20th centuries.

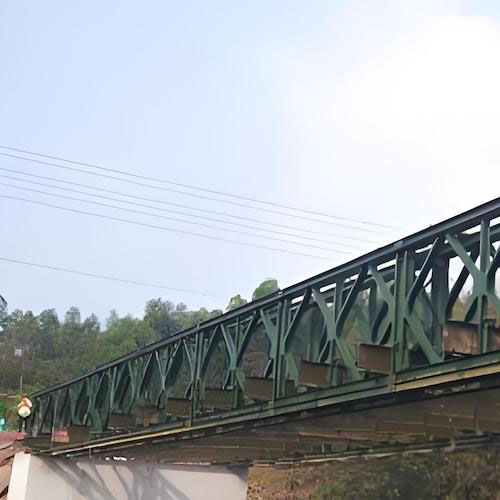

A Bailey bridge is a portable, pre-fabricated truss bridge developed by the British during World War II. Designed for rapid assembly and deployment by military engineers, Bailey bridges are composed of standardized panels that can be easily transported and assembled without heavy equipment.
- Panels: Prefabricated steel truss sections, typically 10 feet long and 5 feet high.
- Transoms: Beams placed across the width of the bridge to support the deck.
- Stringers: Longitudinal beams running along the length of the bridge, supporting the roadway.
- Decking: Timber or steel planks laid across the transoms to form the bridge surface.
- Pins and Bolts: Used to connect panels and components quickly and securely.
The Bailey bridge uses a truss system similar to traditional truss bridges but is designed for modularity and rapid assembly. The standardized panels can be stacked or joined side-by-side to increase load capacity or span length.
Bailey bridges were instrumental during World War II, enabling Allied forces to cross rivers and ravines quickly. Their success led to widespread adoption for military, emergency, and even civilian applications.
- Truss Bridge: Designed for permanent, long-term installations. The design is tailored to the specific site, load requirements, and environmental conditions. Truss bridges can be made from wood, steel, or concrete, and their configurations are often unique to each project.
- Bailey Bridge: Designed for temporary or semi-permanent use, with a focus on rapid assembly and modularity. All components are standardized, allowing for quick construction without specialized tools or machinery.
- Truss Bridge: Typically constructed on-site using custom-fabricated components. Construction may require heavy equipment, skilled labor, and significant time for assembly, alignment, and finishing.
- Bailey Bridge: Assembled from prefabricated panels that can be transported by truck and carried by hand. Panels are connected using pins and bolts, and the bridge can be launched from one bank using rollers, minimizing the need for cranes or scaffolding.
- Truss Bridge: Can be constructed from a variety of materials, including steel, timber, and reinforced concrete. Designed for longevity, with coatings and treatments to resist corrosion and weathering.
- Bailey Bridge: Primarily made from high-tensile steel, with timber or steel decking. While robust, Bailey bridges are generally not intended for permanent installation, though some have remained in service for decades.
- Truss Bridge: Load capacity and span are determined by the specific truss design and materials used. Truss bridges can support heavy vehicular, rail, or pedestrian traffic and span hundreds of meters if necessary.
- Bailey Bridge: Load capacity and span are limited by the modular panel system. Multiple panels can be combined to increase strength, but there are practical limits. Bailey bridges are ideal for medium spans and moderate loads.
- Truss Bridge: Custom-designed for each site, offering flexibility in terms of aesthetics, geometry, and integration with the environment.
- Bailey Bridge: Highly adaptable in terms of deployment but limited in design options. Panels can be reused, reconfigured, or relocated as needed.
- Truss Bridge: Designed for minimal maintenance over a long lifespan. Regular inspections and maintenance are required, especially for steel structures.
- Bailey Bridge: Maintenance is straightforward due to the modular nature, but long-term durability may be compromised if used beyond intended service life.
- Truss Bridge: Higher initial cost due to custom design, materials, and construction. Cost-effective over the long term for permanent installations.
- Bailey Bridge: Lower initial cost and rapid deployment make it ideal for temporary or emergency situations. Costs may increase if used as a permanent solution due to maintenance and replacement needs.

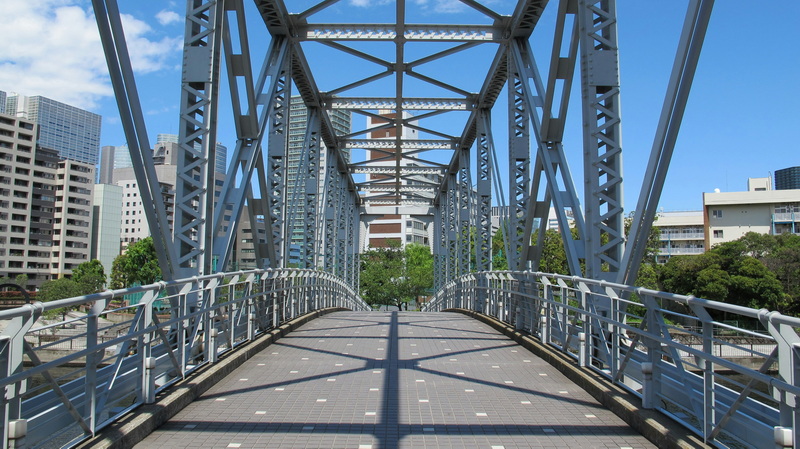

- Permanent road and rail crossings
- Pedestrian bridges
- Long-span crossings over rivers, valleys, or highways
- Architectural or historical projects
Truss bridges are favored for their strength, durability, and adaptability to complex site conditions. Their aesthetic appeal also makes them a popular choice for landmark structures.
- Military operations and emergency relief
- Temporary detours during bridge repairs
- Remote or inaccessible locations
- Rapid deployment in disaster zones
Bailey bridges excel in situations where speed, portability, and ease of assembly are paramount. Their modularity allows for quick adaptation to changing needs.
The Forth Bridge is a cantilever railway bridge that spans the Firth of Forth in Scotland. Completed in 1890, it remains an engineering marvel, showcasing the strength and durability of steel truss construction. The bridge's distinctive red trusses have become a symbol of Scottish engineering prowess.
During the D-Day landings in World War II, Bailey bridges formed an integral part of the Mulberry harbors—temporary portable harbors developed to facilitate rapid offloading of cargo onto the beaches of Normandy. Their quick assembly and adaptability were crucial to the success of the Allied invasion.
Modern truss bridges benefit from advanced materials such as high-performance steel and concrete, computer-aided design, and improved construction techniques. These advances have led to longer spans, reduced maintenance, and enhanced safety.
While the original Bailey bridge remains largely unchanged, modern variants use lighter materials, improved connections, and enhanced corrosion protection. Some modular bridge systems now incorporate composite materials for even greater portability and durability.
Both Bailey and truss bridges play important roles in disaster relief, rural development, and infrastructure renewal. Their ability to restore connectivity quickly after natural disasters or during construction projects has significant social and economic benefits.
Truss bridges, with their potential for aesthetic integration and long-term service, can become community landmarks. Bailey bridges, meanwhile, provide vital lifelines in emergencies, supporting humanitarian efforts and economic recovery.
- Complexity: Custom design and construction can be time-consuming and costly.
- Maintenance: Steel truss bridges require regular inspection for corrosion and fatigue.
- Aesthetics: Some truss designs may not blend well with modern urban environments.
- Limited Lifespan: Not intended for permanent use, though some remain in service for decades.
- Load and Span Restrictions: Modular design limits maximum capacity and length.
- Aesthetics: Functional appearance may not suit all settings.
The Bailey bridge and the truss bridge each represent distinct philosophies in bridge engineering. Truss bridges are permanent, custom-designed structures that offer strength, durability, and aesthetic flexibility. Bailey bridges, on the other hand, are modular, portable, and designed for rapid deployment in temporary or emergency situations.
Choosing between a Bailey bridge and a truss bridge depends on factors such as intended use, required lifespan, load capacity, site conditions, and budget. Understanding the key structural differences enables engineers and planners to select the most appropriate solution for each unique challenge.
The main difference lies in their design and application. A Bailey bridge is a modular, portable truss bridge designed for rapid assembly and temporary use, especially in military or emergency situations. A truss bridge is a permanent structure, custom-designed for specific sites and long-term service.
While Bailey bridges are intended for temporary or semi-permanent use, some have remained in service for decades. However, they may require more maintenance and may not meet all standards for permanent infrastructure.
Truss bridges can be made from steel, timber, or reinforced concrete, depending on the design and intended lifespan. Bailey bridges are primarily constructed from prefabricated high-tensile steel panels, with timber or steel decking.
Bailey bridges are assembled from standardized panels that are connected using pins and bolts. The panels can be carried by hand or transported by truck, and the bridge can be launched from one bank using rollers, allowing for quick assembly without heavy equipment.
Truss bridges offer greater load capacity, longer spans, and longer service life. They can be custom-designed for specific site conditions and often provide better integration with the surrounding environment. Bailey bridges excel in speed and ease of deployment but are limited in capacity and lifespan.
