Bridges are marvels of engineering that connect places, people, and possibilities. Among the vast array of bridge designs, the Bailey bridge and the arch bridge stand out for their unique structural qualities, historical significance, and practical applications. The Bailey bridge, renowned for its modularity and rapid deployment, has played a pivotal role in military and emergency contexts. In contrast, the arch bridge, with its timeless elegance and enduring strength, has graced landscapes for millennia, supporting commerce and culture alike.
This article delves deep into the comparison between Bailey bridges and arch bridges, exploring their histories, structural principles, advantages, disadvantages, and real-world uses. Whether you are an engineer, a student, or simply a bridge enthusiast, this comprehensive analysis will illuminate the strengths and limitations of these two iconic bridge types.
The Bailey bridge was invented by Sir Donald Bailey, a British civil engineer, during World War II. Its primary purpose was to provide a portable, pre-fabricated, truss bridge that could be assembled quickly by military engineers without the need for heavy equipment. The design revolutionized wartime logistics, enabling armies to cross rivers and ravines swiftly, often under challenging combat conditions.
After the war, the Bailey bridge found civilian applications in disaster relief, temporary crossings, and infrastructure repair. Its legacy endures, with modern versions still in use worldwide.

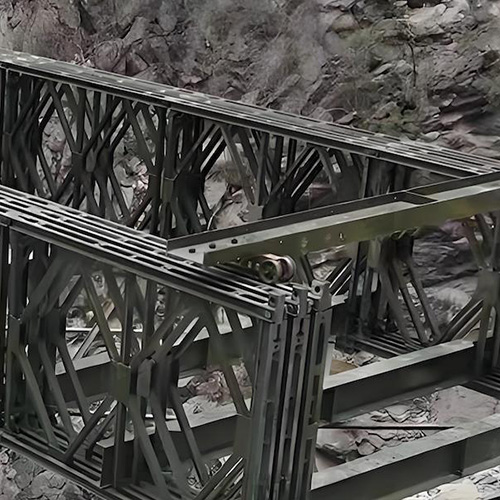

A Bailey bridge is a type of truss bridge composed of modular, prefabricated steel panels. The panels are pinned together to form longer spans, and the bridge can be assembled in various configurations to accommodate different load requirements and site conditions. The key structural principle is the truss, which distributes loads efficiently through interconnected triangles, providing strength and stability with minimal material.
Bailey bridges can be constructed as single or double trusses, with additional decking and support beams as needed. The modularity allows for rapid assembly and disassembly, making the Bailey bridge exceptionally versatile.
- Military operations: Rapid deployment for crossing obstacles.
- Disaster relief: Temporary replacement of damaged bridges.
- Remote or rural areas: Where permanent construction is impractical.
- Construction projects: Temporary access for heavy equipment.
Arch bridges are among the oldest types of bridges, with roots tracing back to ancient civilizations such as the Romans and Greeks. The arch form, with its natural ability to transfer loads into abutments at either end, allowed ancient builders to span greater distances than previously possible with simple beam bridges.
Over centuries, arch bridges have been constructed from stone, brick, concrete, and steel. Many historic arch bridges remain in use today, testifying to the durability and aesthetic appeal of the design.
The defining feature of an arch bridge is its curved structure, which channels the weight of the bridge and its loads into horizontal thrusts at the supports (abutments). This design allows the arch to carry significant weight, often with less material than a beam bridge of similar span.
Arch bridges can be constructed as single or multiple arches, and modern versions may use reinforced concrete or steel for enhanced strength and flexibility. The arch shape is inherently stable, making it ideal for permanent structures.
- Permanent crossings: Over rivers, valleys, and roads.
- Urban infrastructure: Iconic city bridges and pedestrian walkways.
- Railways: Where strength and durability are paramount.
- Historic preservation: Restoration of ancient or classic bridges.
- Speed: Can be assembled rapidly, often within hours or days.
- Labor: Requires minimal skilled labor; panels are lightweight and manageable.
- Equipment: Minimal heavy machinery needed; manual assembly possible.
- Site Preparation: Can be erected in challenging environments with limited access.
- Speed: Construction is typically slower, often taking months or years.
- Labor: Requires skilled labor, especially for masonry or complex concrete work.
- Equipment: Heavy lifting equipment and scaffolding are often necessary.
- Site Preparation: Requires solid abutments and careful foundation work.
- Strength: Designed for temporary or semi-permanent use; load capacity can be increased by doubling panels.
- Durability: Susceptible to corrosion if not maintained; lifespan is limited compared to permanent structures.
- Flexibility: Modular design allows for adaptation to various spans and loads.
- Strength: Exceptionally strong, especially in compression; can support heavy loads over long periods.
- Durability: Can last for centuries with proper materials and maintenance.
- Flexibility: Less adaptable once constructed; designed for specific sites and spans.
- Initial Cost: Lower due to prefabrication and rapid assembly.
- Maintenance: Regular inspection and maintenance required, especially for steel components.
- Lifecycle Cost: Intended for temporary use, so long-term costs may increase if used permanently.
- Initial Cost: Higher due to materials, skilled labor, and longer construction time.
- Maintenance: Stone and concrete arches require minimal maintenance; steel arches need protection from corrosion.
- Lifecycle Cost: Lower over time due to longevity and minimal maintenance needs.
- Aesthetic: Functional appearance; not typically chosen for visual appeal.
- Environmental Impact: Minimal site disturbance due to rapid assembly; can be removed without lasting impact.
- Aesthetic: Often celebrated for beauty and elegance; can become landmarks.
- Environmental Impact: Greater site disturbance during construction; permanent presence can affect local ecosystems.
- Adaptability: Highly adaptable; can be reused, relocated, or reconfigured.
- Versatility: Suitable for a wide range of temporary applications.
- Adaptability: Fixed once constructed; not intended for relocation.
- Versatility: Best suited for permanent, high-traffic crossings.
- Rapid Deployment: Can be assembled quickly, making them ideal for emergencies.
- Modular Design: Panels can be reused, reconfigured, or replaced as needed.
- Minimal Equipment: Requires little heavy machinery, enabling use in remote locations.
- Cost-Effective: Lower initial costs for temporary or short-term use.
- Versatile Applications: Suitable for military, disaster relief, and construction projects.
- Limited Lifespan: Not intended for permanent installations; susceptible to wear and corrosion.
- Lower Aesthetic Value: Functional design lacks architectural appeal.
- Maintenance Needs: Steel components require regular inspection and maintenance.
- Load Limitations: While strong, not designed for extremely heavy or high-traffic loads over long periods.
- Exceptional Durability: Can last for centuries with proper construction and materials.
- High Load Capacity: Ideal for supporting heavy loads and high-traffic volumes.
- Aesthetic Appeal: Often considered beautiful and iconic; can enhance landscapes.
- Low Maintenance: Stone and concrete arches require minimal upkeep.
- Historical Legacy: Many ancient arch bridges remain in use, attesting to their reliability.
- Longer Construction Time: Requires more time and skilled labor to build.
- Higher Initial Cost: Materials and craftsmanship increase upfront expenses.
- Site Constraints: Requires solid foundations and suitable terrain for abutments.
- Limited Adaptability: Fixed in place; not suitable for temporary or emergency use.
During World War II, Bailey bridges enabled Allied forces to advance rapidly across rivers and ravines, often under enemy fire. Their ability to be assembled quickly and without heavy equipment was crucial to military success. In modern times, Bailey bridges have been used in disaster zones—such as after earthquakes or floods—to restore vital transportation links within days.
The Pont du Gard in France, a Roman aqueduct bridge, and the Sydney Harbour Bridge in Australia are iconic examples of arch bridges that have stood the test of time. These structures not only serve practical purposes but also symbolize the ingenuity and artistry of their eras.
In remote or developing regions, Bailey bridges provide essential access where permanent bridges are not feasible due to cost or logistical challenges. Their modularity allows for rapid deployment and later removal or relocation as needed.
Modern cities often feature arch bridges as centerpiece structures, blending functionality with visual impact. The use of reinforced concrete and steel has expanded the possibilities for span length and design, making arch bridges suitable for both vehicular and pedestrian traffic.
Bailey bridges rely on truss systems to distribute loads efficiently across modular panels. The truss design ensures that forces are transferred through interconnected triangles, minimizing bending and maximizing strength.
Arch bridges, by contrast, channel loads into compression along the curve of the arch, with horizontal thrusts absorbed by abutments. This makes them particularly strong under heavy loads, provided the foundations are secure.
Bailey bridges are typically constructed from high-strength steel, chosen for its combination of strength and portability. Protective coatings are necessary to prevent corrosion, especially in harsh environments.
Arch bridges can be built from stone, brick, concrete, or steel. The choice of material affects not only strength and durability but also appearance and maintenance requirements.
The temporary nature of Bailey bridges means they can be used with minimal long-term impact on the environment. Their rapid assembly and removal make them ideal for sensitive or protected areas.
Arch bridges, as permanent structures, have a more lasting impact on the landscape. However, their durability and low maintenance needs can offset initial environmental disturbances over time.
Bailey bridges and arch bridges represent two distinct approaches to bridge engineering, each with unique strengths and limitations. The Bailey bridge excels in situations requiring speed, flexibility, and cost-effectiveness, making it indispensable in military, emergency, and temporary applications. Its modular design and ease of assembly have saved countless lives and facilitated vital infrastructure in challenging circumstances.
The arch bridge, with its enduring strength, aesthetic appeal, and historical legacy, remains a symbol of human ingenuity and perseverance. Its ability to support heavy loads over long spans and its minimal maintenance requirements make it ideal for permanent, high-traffic crossings.
Choosing between a Bailey bridge and an arch bridge depends on a variety of factors, including intended use, site conditions, budget, and desired lifespan. By understanding the pros and cons of each, engineers and decision-makers can select the most appropriate solution for their specific needs.
Bailey bridges are modular, portable, and designed for rapid assembly, making them ideal for temporary or emergency use. They are typically constructed from prefabricated steel panels and can be assembled without heavy machinery. Arch bridges, on the other hand, are permanent structures that rely on a curved design to distribute loads. They are built from materials like stone, concrete, or steel and are celebrated for their durability and aesthetic appeal.
A Bailey bridge is best suited for scenarios requiring rapid deployment, such as military operations, disaster relief, or temporary infrastructure needs. Its modular design allows for quick assembly and disassembly, making it ideal for remote locations or situations where permanent construction is not feasible.
While arch bridges are exceptionally strong and durable, they require significant time, skilled labor, and resources to construct. They also need solid abutments and suitable terrain for proper load distribution. Once built, arch bridges are not easily relocated or modified, limiting their adaptability.
Bailey bridges, being primarily constructed from steel, require regular inspection and maintenance to prevent corrosion and ensure structural integrity, especially if used beyond their intended temporary lifespan. Arch bridges, particularly those made from stone or concrete, require minimal maintenance and can last for centuries with proper care.
While Bailey bridges are designed for temporary or semi-permanent use, they can serve as long-term solutions in certain situations, particularly in remote or low-traffic areas. However, their durability and load capacity may be limited compared to purpose-built permanent bridges like arch bridges, and ongoing maintenance is essential to ensure safety.
