Truss bridges are among the most significant engineering achievements in the history of civil engineering, characterized by their triangular framework that efficiently distributes loads. The evolution of truss bridges is a fascinating journey that intertwines the contributions of various architects and engineers throughout history. This article will explore the origins of truss bridges, focusing on the key figures involved in their development, particularly Ithiel Town, who is credited with patenting the first true truss bridge design.
A truss bridge is a structure composed of interconnected elements forming triangular units. This design allows for effective load distribution, making truss bridges ideal for spanning long distances while maintaining structural integrity. The triangular configuration is crucial because it provides inherent stability; when force is applied to a triangle, it distributes that force evenly across all three sides.
The concept of using trusses can be traced back to ancient civilizations. While there are no definitive records of truss bridges in ancient cultures, the use of triangular structures in architecture has been documented. For instance, the 13th-century French architect Villard de Honnecourt sketched one of the earliest known depictions of a truss bridge. However, it wasn't until the Renaissance period that truss bridges gained significant attention.
In 1570, Italian architect Andrea Palladio published designs for several types of truss bridges in his influential work 'Treatise on Architecture'. These early designs laid the groundwork for future developments in bridge construction.
The late 18th and early 19th centuries saw a surge in the construction of wooden truss bridges in America. Following the Revolutionary War, there was an urgent need for improved transportation infrastructure. Builders began experimenting with various designs to create economical and efficient structures.
Several key figures played pivotal roles in the development of truss bridges during this period:
- Theodore Burr: In 1806, Burr patented a combination arch-truss design that allowed for longer spans and heavier loads. His McCall's Ferry Bridge (1815) was notable for its record-breaking span of 108 meters (360 feet).
- Timothy Palmer: Palmer built one of the first long covered bridges in America over the Schuylkill River at Philadelphia in 1806, utilizing a simple king-post truss design.
- Ithiel Town: Town's lattice truss design, patented in 1820, marked a significant milestone in truss bridge history. His design was notable for its simplicity and required less material than previous designs.
Ithiel Town was born on October 3, 1784, in New Haven, Connecticut. He became an influential architect and civil engineer during the first half of the 19th century. Before developing his famous lattice truss design, Town built several covered bridges based on Theodore Burr's arch-truss design.
On January 28, 1820, Ithiel Town was granted a patent for his wooden lattice truss bridge, which became known as the Town Lattice Truss. This design featured an uninterrupted series of crisscrossed diagonals that connected horizontal top and bottom chords to form overlapping triangles. Unlike previous designs that relied on heavy timbers or arches, Town's approach distributed loads equally without vertical timbers.
Town's lattice design allowed for quick construction using readily available materials and relatively unskilled labor. He famously stated that his bridges could be "built by the mile and cut by the yard," emphasizing their practicality and cost-effectiveness.
Town's lattice truss design quickly gained popularity across New England and beyond. It became widely used for covered bridges and early railroad bridges until the post-Civil War era. Notable examples of Town's lattice trusses include Bull's Bridge in Kent and West Cornwall Bridge in Cornwall, Connecticut.
Town's success was not only due to his innovative design but also his business acumen. He actively promoted his truss design and collected royalties from builders who used it. His financial success from these royalties allowed him to become wealthy while contributing significantly to American bridge construction.
As technology advanced during the mid-19th century, builders began incorporating iron into truss bridge designs. The first patented iron truss bridge design was created by Squire Whipple in 1841. Whipple was instrumental in understanding stresses within truss members and developed theoretical formulas to calculate these stresses.
Squire Whipple's bowstring truss bridge marked a turning point as it utilized cast iron for compression members and wrought iron for tension members. This innovation allowed for longer spans and greater load-bearing capacities compared to wooden designs.
Whipple's work established him as a leading figure in American bridge engineering. Although he never collected royalties on his patented designs due to state regulations declaring that construction served "the public good," his contributions laid the foundation for future advancements in metal truss bridge construction.
Several types of truss bridges have emerged over time, each with unique characteristics suited to different applications:
Design Characteristics:
- Diagonal members slope towards the center.
- Vertical members are under compression while diagonal members are under tension.
Strengths:
- Excellent load-bearing capacity.
- Versatile applications for longer spans.
Design Characteristics:
- Diagonal members slope away from the center.
- Vertical members are under tension while diagonal members are under compression.
Strengths:
- Strong under heavy loads.
- Good resistance to lateral forces.
Design Characteristics:
- Composed of equilateral triangles without vertical members.
- Compression and tension alternate between members.
Strengths:
- Efficient use of materials.
- Simple construction process.
Design Characteristics:
- Smaller diagonal members enhance rigidity.
Strengths:
- Effective load distribution.
- Suitable for modern designs requiring aesthetic appeal.

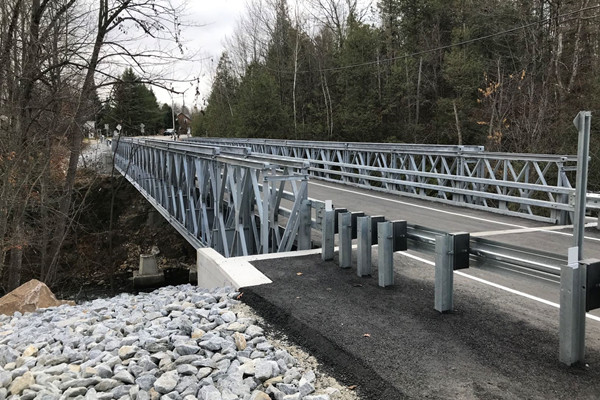

Today, truss bridges continue to be an essential part of infrastructure worldwide. Modern advancements have led to innovations such as fiber-reinforced polymers (FRP) being used alongside traditional materials like steel or aluminum to create lightweight yet strong structures.
Modern truss bridges offer several advantages:
- Strength: Their triangular configuration allows them to distribute loads efficiently across multiple members.
- Material Efficiency: They require less material compared to other bridge types while maintaining structural integrity.
- Cost-Effectiveness: Simplified construction methods reduce labor costs and time needed for assembly.
- Aesthetic Appeal: Many modern designs incorporate aesthetic elements that enhance their visual impact within landscapes.
The journey from early wooden structures to sophisticated metal designs illustrates the remarkable evolution of truss bridges over centuries. Ithiel Town's lattice truss design marked a significant milestone in this journey by providing an efficient solution for spanning long distances with minimal materials. His contributions laid the foundation for future innovations that have shaped modern bridge engineering.
As we continue to build infrastructure that meets contemporary needs while respecting historical significance, understanding the history of truss bridges is crucial. These structures not only facilitate transportation but also symbolize human ingenuity in overcoming engineering challenges throughout history.
Ithiel Town patented the first true truss bridge design known as the Town Lattice Truss on January 28, 1820.
Early truss bridges were primarily constructed from wood before transitioning to iron and steel as technology advanced.
Common types include Pratt Trusses, Howe Trusses, Warren Trusses, and K Trusses.
Squire Whipple patented an iron truss bridge design in 1841 and developed theoretical formulas for calculating stresses within trusses.
Modern truss bridges provide strength through efficient load distribution, material efficiency, cost-effectiveness due to simplified construction methods, and aesthetic appeal through innovative designs.
