The Pratt style truss bridge stands as a hallmark of structural engineering, renowned for its efficiency, reliability, and adaptability. Since its invention in the mid-19th century, the Pratt truss has been a preferred solution for spanning rivers, valleys, and other obstacles, especially in railway and highway infrastructure. But what exactly makes the Pratt truss bridge structurally efficient? This article explores the principles behind its design, the distribution of forces, material optimization, construction advantages, and the reasons why it remains a staple in modern bridge engineering.

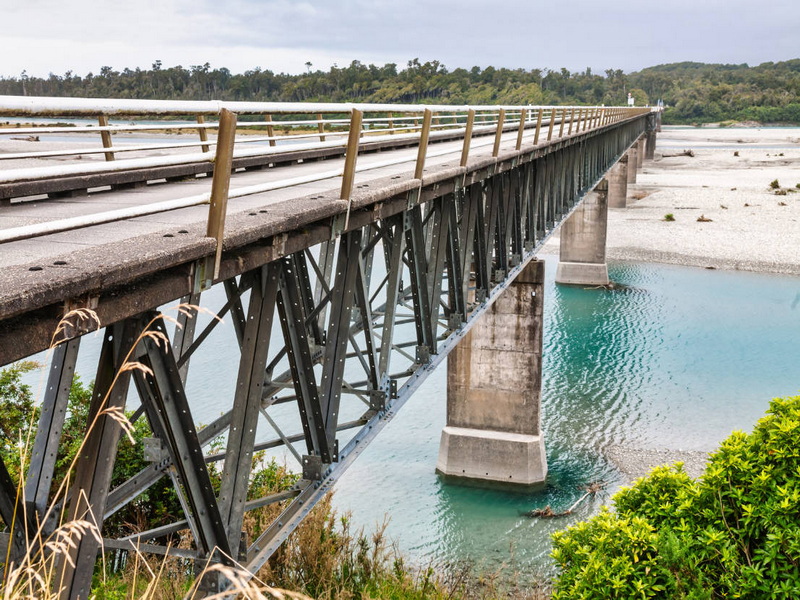

A Pratt truss bridge is defined by a specific arrangement of structural members:
- Top Chord: The upper horizontal member, typically under compression.
- Bottom Chord: The lower horizontal member, generally under tension.
- Vertical Members: Upright elements connecting the top and bottom chords, primarily under compression.
- Diagonal Members: Sloping elements that angle towards the center of the span, mainly under tension.
This configuration creates a series of interconnected triangles, which is a fundamental geometric shape in engineering due to its inherent stability.
Invented by Thomas and Caleb Pratt in 1844, the Pratt truss was developed to meet the demands of the rapidly expanding railway industry. Its design quickly gained popularity for its ability to support heavy loads over longer spans while remaining cost-effective and relatively simple to construct.
The core of the Pratt truss's efficiency lies in how it manages and distributes loads:
- Tension in Diagonal Members: The diagonal members are oriented so that they experience tension when loads are applied. Tension is easier for most materials (especially steel) to handle without risk of buckling, allowing these members to be lighter and thinner.
- Compression in Vertical Members: The vertical members are under compression, which is a force that materials like steel and concrete can withstand effectively, provided the members are properly sized to prevent buckling.
This strategic separation of tension and compression allows each member to be optimized for its specific force, reducing the overall weight and material usage of the bridge.
A significant advantage of the Pratt truss is that it is statically determinate. This means that all internal forces in the members can be calculated using basic equations of static equilibrium. The design's predictability simplifies both analysis and construction, reducing the likelihood of errors and unforeseen stresses.
By placing the diagonal members in tension and the vertical members in compression, the Pratt truss allows for:
- Thinner Diagonal Members: Because tension members are less prone to buckling, they can be made from less material without sacrificing strength.
- Appropriately Sized Compression Members: Vertical members can be designed specifically to resist compression, further optimizing material usage.
This targeted approach results in a lighter overall structure, which reduces both material costs and the loads imposed on the bridge's supports.
- Lower Material Costs: The efficient use of steel or timber translates directly into savings.
- Faster Construction: The simplicity of the design allows for quicker assembly, often with less skilled labor.
- Reduced Transportation Costs: Lighter members are easier and cheaper to transport to the construction site.
The Pratt truss is highly adaptable, making it suitable for a wide range of applications:
- Railway Bridges: Its ability to handle heavy, repetitive loads makes it ideal for railways.
- Highway and Road Bridges: The design can be scaled to accommodate different span lengths and traffic volumes.
- Pedestrian Bridges: Lighter versions can be constructed for foot traffic, offering both strength and aesthetic appeal.
The tension-dominated design of the diagonals makes the Pratt truss particularly effective at managing dynamic or fluctuating loads, such as those produced by moving trains or vehicles. This resistance to variable forces enhances the bridge's durability and longevity.
The straightforward geometry of the Pratt truss simplifies fabrication and assembly. Components can often be prefabricated and assembled on-site with minimal adjustments, reducing construction time and potential for errors.
While the design is robust, the numerous members require regular inspection and maintenance. Each connection point, especially in older bridges, must be checked for signs of wear, corrosion, or fatigue. However, the predictability of force distribution aids in identifying critical areas for maintenance.
While the Pratt truss offers many advantages, it is not without its limitations:
- Less Efficient for Diagonal Loads: The design excels under vertical loads but is less effective when subjected to significant diagonal or lateral forces, such as those from earthquakes or strong winds.
- Not Ideal for Very Long Spans: For extremely long spans or situations requiring shallow depths, other truss designs like the Warren truss may be more appropriate.
- Maintenance Complexity: The number of members and connections increases the maintenance workload compared to simpler bridge types.
The structural efficiency of the Pratt style truss bridge is rooted in its intelligent distribution of forces, material optimization, and straightforward design. By assigning tension to the diagonal members and compression to the vertical members, the Pratt truss maximizes the strengths of common construction materials while minimizing weight and cost. Its statically determinate nature simplifies analysis and construction, making it a reliable choice for a wide range of bridge applications.
Despite some limitations, particularly regarding lateral loads and maintenance, the Pratt truss remains a cornerstone of bridge engineering. Its enduring popularity is a testament to the brilliance of its design and its ability to meet the evolving demands of infrastructure development.
The primary structural advantage of the Pratt truss bridge is its efficient distribution of forces: diagonal members are placed in tension and vertical members in compression. This allows for lighter, thinner tension members and robust compression members, optimizing material usage and reducing overall weight.
Pratt truss bridges are cost-effective because their design enables the use of thinner, lighter materials for tension members and appropriately sized compression members. This reduces material costs, simplifies construction, and lowers transportation expenses.
Pratt truss bridges are widely used in railway bridges, highway and road bridges, and pedestrian crossings. Their adaptability to various span lengths and ability to handle heavy, dynamic loads make them suitable for many infrastructure projects.
The main limitations of the Pratt truss design include reduced efficiency under significant diagonal or lateral loads, unsuitability for very long spans or shallow depth situations, and increased maintenance requirements due to the number of members and connections.
The Pratt truss differs from the Howe truss in the direction of its diagonal members and the distribution of forces: Pratt's diagonals are in tension, while Howe's are in compression. Compared to the Warren truss, which uses a series of equilateral triangles and distributes loads more evenly, the Pratt truss is generally preferred for longer spans with predominantly vertical loads.
