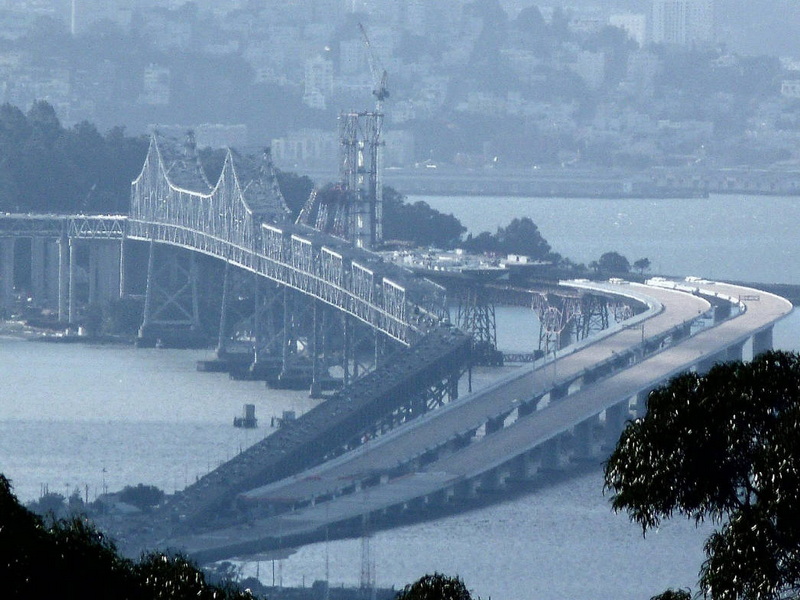

>> The San Francisco-Oakland Bay Bridge (Eastern Span Replacement), USA
● FAQ
>> 1. What type of material is best for building a truss bridge?
>> 2. How do engineers determine the load capacity of a truss bridge?
>> 3. What are some common designs for truss bridges?
>> 4. Why are triangles used in truss designs?
>> 5. How can maintenance affect the lifespan of a truss bridge?
Truss bridges are celebrated for their strength, efficiency, and ability to span long distances. Their design is based on the geometric principle of triangles, which are inherently strong shapes that can effectively distribute loads. Understanding the factors that contribute to the strength of truss bridges is essential for engineers and architects alike. This article will delve into the various aspects that make a truss bridge strong, including materials, design configurations, load distribution, and construction techniques. We'll also explore advanced concepts like finite element analysis and dynamic load considerations that further enhance the robustness of these structures.
A truss bridge consists of a framework of triangular units. The arrangement of these triangles allows the bridge to support significant loads while using less material than traditional beam bridges. The primary components of a truss bridge include:
These are the horizontal members at the top and bottom of the truss. They bear the brunt of tensile and compressive forces resulting from the bending moments. The upper chord typically experiences compression, while the lower chord is subjected to tension.
These are the diagonal and vertical members that connect the chords and form the triangular shapes. They primarily handle shear forces, transferring loads between the chords. Diagonal members can be designed to resist either tension or compression, depending on the truss design.
The surface on which vehicles or pedestrians travel. The decking directly bears the live load and distributes it to the truss members. Materials for decking range from reinforced concrete to steel grates, depending on the intended use and load requirements.
The structures at either end of the bridge that transfer loads to the ground. The supports, or abutments, must be robust enough to handle both vertical and horizontal forces from the truss. Proper foundation design is crucial to prevent settlement or movement that could compromise the bridge's integrity.
The choice of materials is critical in determining the strength of a truss bridge. Common materials used in truss construction include:
Known for its high tensile strength and durability, steel is often preferred for modern truss bridges. It can withstand significant forces without deforming. High-strength steel alloys are often used to maximize the load-bearing capacity while minimizing the material required, leading to cost savings and reduced weight. Different grades of steel offer varying levels of corrosion resistance, which is an important factor for bridges exposed to harsh environmental conditions.
While lighter and easier to work with, wooden truss bridges may not support as much weight as steel counterparts. However, they can be aesthetically pleasing and suitable for smaller spans. Wood offers good compressive strength, but its tensile strength is significantly lower than steel. Wooden trusses are often treated with preservatives to protect them from decay and insect infestation. The type of wood used also affects its strength and durability; hardwoods like oak are stronger than softwoods like pine.
Innovations in engineering have led to the use of composite materials that combine lightweight properties with high strength. These materials can enhance performance while reducing overall weight. Fiber-reinforced polymers (FRPs), such as carbon fiber or fiberglass embedded in a resin matrix, offer excellent strength-to-weight ratios and corrosion resistance. FRPs can be used to reinforce existing steel or concrete bridges, increasing their load capacity and extending their service life. While initial costs may be higher, the long-term benefits of reduced maintenance and increased durability can make composite materials a cost-effective choice.
Different design configurations affect how forces are distributed throughout a truss bridge. Some common designs include:

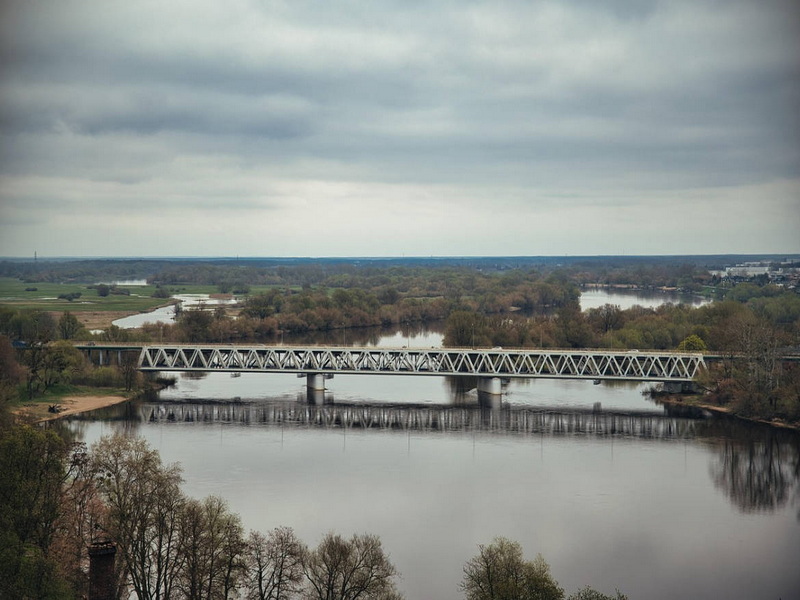

Characterized by equilateral triangles, this design alternates between compression and tension members. It is efficient for load distribution and is often used in railway bridges due to its strength. The Warren truss design minimizes the number of web members, which can reduce material costs. Variations include the Warren truss with verticals, which adds vertical members to provide additional support and reduce the buckling length of the diagonal members.
This design features diagonal members that slope toward the center, allowing them to handle tensile forces effectively. It is economical to build and is commonly used in applications where heavy loads are expected. The Pratt truss is particularly well-suited for long spans because the tension members are longer than the compression members, allowing for more efficient use of material. The diagonals are designed to be in tension, which is generally easier to manage than compression, especially for longer members.
In contrast to the Pratt design, Howe trusses have diagonal members slanting toward the ends. This configuration excels in handling compressive forces but may require more material than Pratt trusses. The Howe truss is commonly used for wooden bridges because the compressive forces are concentrated in the shorter diagonal members, making it easier to use wood's compressive strength effectively. The design is less efficient for steel bridges compared to Pratt trusses.
The K-truss design incorporates additional diagonal members forming a "K" shape, providing enhanced stability and strength, making it suitable for supporting heavier loads. The K-truss is more complex to analyze and construct but offers superior stiffness and load-carrying capacity. It's often used for bridges with very long spans or those subjected to heavy traffic. The design helps to reduce the buckling length of the vertical members, increasing their compressive strength.
Understanding how loads are distributed across a truss bridge is vital for its structural integrity. Trusses must handle three types of forces:
The weight of the bridge itself. This includes the weight of the decking, truss members, and any permanent fixtures. Accurate estimation of dead loads is crucial for designing the bridge to withstand its own weight without failure.
The weight from vehicles, pedestrians, and other dynamic forces. Live loads are variable and depend on the type and volume of traffic using the bridge. Engineers must consider the maximum expected live loads when designing the bridge. Dynamic load factors are applied to account for the impact and vibration caused by moving vehicles.
Forces from wind, snow, or seismic activity. Wind loads can exert significant horizontal forces on the bridge, especially for long-span structures. Snow loads can add substantial vertical weight, particularly in regions with heavy snowfall. Seismic loads can cause complex dynamic forces that must be carefully considered in earthquake-prone areas.
Engineers must calculate these loads accurately to ensure that each member of the truss can withstand its share of stress without failure. Finite element analysis (FEA) is often used to model the bridge and simulate its response to various load scenarios. FEA allows engineers to identify critical areas of stress concentration and optimize the design to minimize the risk of failure. Safety factors are also incorporated into designs to account for unexpected stresses and ensure longevity. These safety factors typically range from 1.5 to 2.5, depending on the type of load and the importance of the structure.
FEA is a powerful computational tool used to analyze the behavior of complex structures under various loading conditions. It involves dividing the structure into a mesh of small elements and solving equations for each element to determine stresses, strains, and deflections. FEA allows engineers to simulate the response of the bridge to different load scenarios, including dead loads, live loads, wind loads, and seismic loads. It can also be used to identify potential weaknesses in the design and optimize the structure for maximum strength and efficiency.
Dynamic loads are forces that vary with time, such as those caused by moving vehicles or wind gusts. These loads can induce vibrations and oscillations in the bridge, which can amplify the stresses and deflections. Engineers must consider dynamic load effects when designing truss bridges, particularly for long-span structures or those subjected to heavy traffic. Dynamic load factors are used to account for the increased stresses caused by dynamic loads. Modal analysis is another technique used to determine the natural frequencies of the bridge, which can help engineers avoid resonance and minimize vibrations.
Buckling is a phenomenon that occurs when a slender member subjected to compression suddenly deflects laterally. This can lead to catastrophic failure of the bridge. Engineers must perform buckling analysis to ensure that the compressive members of the truss are adequately sized to prevent buckling. The critical buckling load depends on the length, cross-sectional shape, and material properties of the member. Stiffeners can be added to the member to increase its buckling resistance.
Fatigue is a process in which a material weakens due to repeated loading and unloading. This can lead to cracks and eventual failure of the bridge. Fatigue analysis is used to estimate the fatigue life of the bridge, which is the number of load cycles it can withstand before failure. Engineers must consider fatigue effects when designing truss bridges, particularly for those subjected to heavy traffic or dynamic loads. High-strength steel alloys with good fatigue resistance are often used in truss construction.
Corrosion is a major concern for steel bridges, particularly those exposed to harsh environmental conditions. Corrosion can weaken the steel and reduce its load-carrying capacity. Various corrosion protection methods are used to extend the service life of steel bridges, including galvanizing, painting, and cathodic protection. Regular inspections and maintenance are also essential for detecting and addressing corrosion before it becomes a major problem.
The quality of construction plays a significant role in the strength of a truss bridge. Proper techniques include:
Joints must be designed to handle tension and compression effectively without introducing weaknesses. Bolted joints are commonly used in steel truss bridges, but welded joints are also used in some cases. The design of the joint must ensure that the load is transferred efficiently between the members without causing stress concentrations.
Using high-quality materials reduces the risk of failure due to defects. All materials used in the construction of the bridge must be tested to ensure that they meet the required specifications. Quality control procedures must be implemented throughout the construction process to ensure that the materials are handled and installed correctly.
Routine checks help identify potential issues before they lead to structural problems. Regular inspections should be performed to detect signs of corrosion, cracking, or other damage. Maintenance activities such as painting, repairing damaged members, and tightening bolts can help to extend the service life of the bridge.
Examining real-world examples of truss bridges can further illustrate the principles discussed above:
This iconic cantilever truss bridge, completed in 1890, demonstrates the strength and durability of steel construction. Its design efficiently distributes loads across long spans.
Constructed in the early 20th century, this bridge overcame significant engineering challenges and exemplifies the importance of thorough design and construction oversight.
This modern self-anchored suspension bridge with a single tower includes truss elements in its design, showcasing how different structural systems can be combined for optimal performance.
The strength of a truss bridge is influenced by various factors including material selection, design configuration, load distribution, and construction techniques. By understanding these elements and incorporating advanced concepts like finite element analysis, dynamic load considerations, buckling analysis, fatigue analysis, and corrosion protection, engineers can create robust structures capable of withstanding significant forces while remaining efficient in material use. As technology advances, new materials and designs will continue to enhance the capabilities of truss bridges, ensuring their relevance in modern engineering. Future innovations may include self-healing materials, advanced sensors for real-time monitoring, and automated construction techniques.
Steel is often considered the best material due to its high tensile strength and durability; however, wood can be used for smaller spans where aesthetics are important. Composite materials like FRPs are also gaining popularity for their high strength-to-weight ratio and corrosion resistance.
Engineers calculate load capacity by assessing dead loads (the weight of the structure), live loads (dynamic forces from traffic), and environmental loads (such as wind or snow), applying safety factors for added reliability. Finite element analysis (FEA) is often used to simulate the bridge's response to various load scenarios.
Common designs include Warren, Pratt, Howe, and K-trusses; each has unique characteristics suited for different applications based on load distribution needs. The choice of design depends on factors such as the span length, the type of load, and the available materials.
Triangles are inherently strong shapes that effectively distribute forces throughout the structure, minimizing deformation under load compared to other shapes. The triangular geometry ensures that the members are subjected to either tension or compression, which are the most efficient ways to transfer loads.
Regular inspections and maintenance can identify potential issues early on, preventing structural failures and extending the lifespan of a bridge significantly. Maintenance activities such as painting, repairing damaged members, and tightening bolts can help to prevent corrosion and fatigue.
