A truss bridge is a type of bridge that utilizes a structure of interconnected elements, typically forming triangular units[5][7]. This design enables the bridge to efficiently distribute weight and loads across a wide area, making it a robust and cost-effective solution for spanning distances[5]. Truss bridges are commonly used to carry vehicular traffic, pedestrian walkways, and even railway lines over obstacles such as rivers, valleys, or other roadways[4]. The fundamental principle behind a truss bridge lies in its ability to transfer loads from a single point to a broader area through the triangular designs, providing additional support and then redirecting the weight to the earth through the bridge's substructure[5].
Historically, truss bridges have been essential in infrastructure development, evolving from simple wooden structures to complex steel and composite designs[4]. Early truss bridges primarily used wood due to its availability and ease of construction[4]. However, the limitations of wood in terms of strength and durability led to the adoption of iron and steel as primary building materials[4][5]. The development of steel truss bridges marked a significant advancement, allowing for longer spans and heavier load capacities[5].
A truss bridge comprises several key components that work together to ensure its structural integrity and functionality[2][4][5]. These include:
- Chords: These are the main horizontal members of the truss, forming the top and bottom of the structure. The top chords are typically under compression, while the bottom chords are under tension[1][4].
- Web Members: These are the diagonal and vertical members that connect the top and bottom chords, forming the triangular patterns[3][4]. Web members help distribute the load and can be under either tension or compression, depending on their orientation and the specific design of the truss[3].
- Abutments: These are the supports located at each end of the bridge that transfer the load from the truss to the ground[1][4]. Abutments provide stability and prevent the bridge from collapsing[1].
- Decking: This is the surface of the bridge that carries the traffic load, whether it be vehicles, pedestrians, or trains[4]. The decking is supported by stringers and floor beams that transfer the load to the truss[2][4].
- Floor Beams and Stringers: Floor beams transmit the load from the stringers to the bottom nodes of the truss[2]. Stringers are parallel lines of beams that sit on top of the floor beams to provide support to the bridge's decking[4].
- Lateral Bracing: These components provide rigidity to the structure, stabilize the compression chord, and carry the main part of the wind loads to the bridge portals[2].
The function of a truss bridge is rooted in its ability to manage and distribute loads efficiently[1][7]. The interconnected triangles that form the truss structure are critical to this process[2][7]. When a load is applied to the bridge, the truss members experience either tension or compression[3].
- Compression: This occurs when a member is being squeezed or pushed inward. The top chords of a truss bridge are typically under compression[1][3].
- Tension: This occurs when a member is being pulled or stretched. The bottom chords of a truss bridge are typically under tension[1][3].
The diagonal and vertical web members distribute these forces throughout the truss, ensuring that no single member is overloaded[1][2]. This distribution of forces allows the truss bridge to support heavy loads with relatively lightweight materials[1][5]. The load is then transferred from the truss to the abutments, which distribute the weight to the ground[1][4].
There are several types of truss bridges, each designed to meet specific requirements and site conditions[2]. Some common types include:
- Pratt Truss: This type of truss is characterized by its diagonal members sloping downward towards the center[2]. The shorter verticals are in compression, and the longer diagonals are in tension, making it structurally efficient[2].
- Warren Truss: In a Warren truss, the diagonals alternate downward toward the center and away from the center[2]. This design can be modified with subdivided panels to provide better support for the deck[2].
- K-Truss: The K-bracing system is convenient when the depth of a bay is approximately twice its length[2].

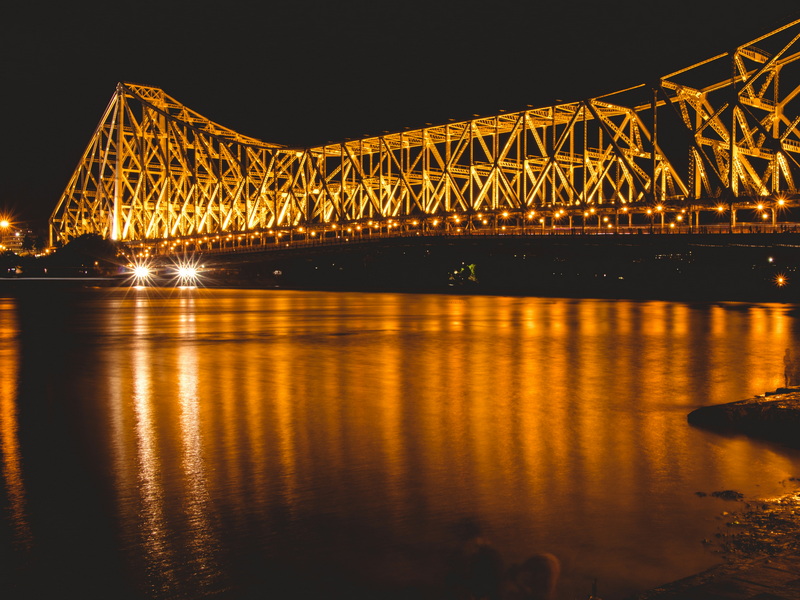

- Through Truss: In this design, the deck is located at the bottom chord level, and the truss extends above and alongside the traffic[2].

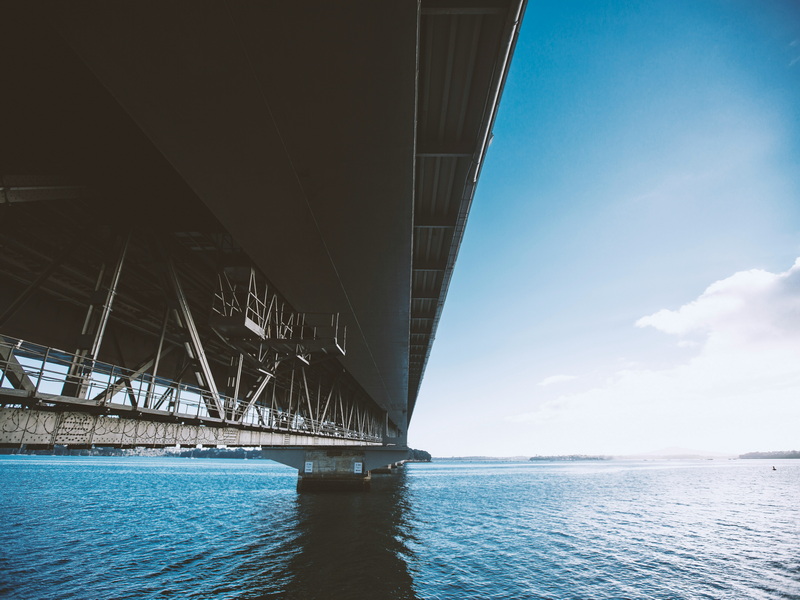

- Deck Truss: Here, the deck is located on top of the truss, allowing the entire structure to be visible[2].
Truss bridges offer several advantages that make them a popular choice for bridge construction[4][5][7]:
- High Strength-to-Weight Ratio: Truss bridges can support heavy loads with relatively little material, making them cost-effective[5][7].
- Efficient Load Distribution: The triangular design of the truss ensures that loads are evenly distributed, reducing stress on individual members[1][7].
- Versatile Design: Truss bridges can be adapted to various spans and site conditions[4].
- Ease of Construction: Truss bridges can be prefabricated and assembled on-site, reducing construction time and costs[4].
- Aesthetic Appeal: Many modern truss bridges are designed to be aesthetically pleasing, enhancing the visual appeal of the surrounding area[4].
- Replaceable Members: Individual members can be replaced if damaged[4].
The materials used in truss bridge construction have evolved over time, with each material offering unique benefits[4][5]:
- Wood: Historically, wood was the primary material for truss bridges due to its availability and ease of use[4]. However, wood is susceptible to decay and has limited strength compared to other materials[4].
- Iron: The introduction of iron allowed for longer spans and greater load capacities[5]. Iron truss bridges were a significant improvement over wooden bridges, but they were still prone to corrosion and fatigue[5].
- Steel: Steel is the most common material used in modern truss bridge construction[5][7]. Steel offers high strength, durability, and resistance to corrosion[5][7]. Steel truss bridges can be designed to carry heavy loads over long distances[5].
- Fiber Reinforced Polymer (FRP): FRP is a relatively new material that offers several advantages, including lightweight construction, minimal maintenance, and resistance to corrosion[4]. FRP truss bridges are particularly well-suited for use in natural trails and parks[4].
Truss bridges are used in a variety of applications, including[4]:
- Highway Bridges: Truss bridges are commonly used to carry vehicular traffic over rivers, valleys, and other obstacles[2].
- Railway Bridges: Truss bridges are also used to support railway lines, providing a stable and reliable structure for trains to cross[5].

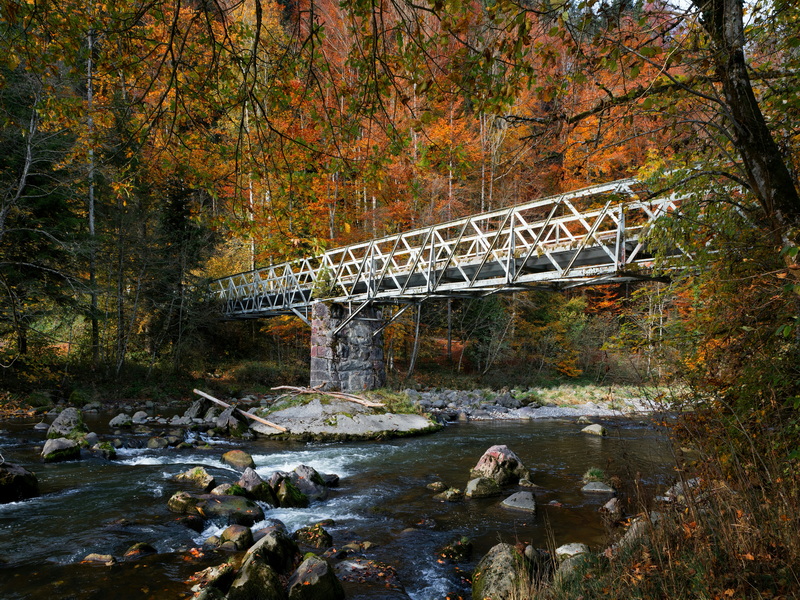

- Pedestrian Bridges: Truss bridges can be designed as pedestrian walkways, providing a safe and accessible route for people to cross[4].
- Community Spaces: Truss bridges can connect two community spaces together while providing an attractive and pleasing design that complements the area[4].
- Equestrian Trails: Truss bridges are an ideal solution for offering a safe crossway for riders and their horses[4].
- Nature Trails and National Parks: Fiber reinforced polymer (FRP) truss bridges are an excellent option for natural trails and parks because of their lightweight and minimal maintenance[4].
In conclusion, the function of a truss bridge is to provide a strong, efficient, and versatile means of spanning distances and overcoming obstacles[1][4]. Through their intelligent design and distribution of loads, truss bridges have played a vital role in transportation and infrastructure development throughout history[5]. Whether made of wood, steel, or composite materials, truss bridges continue to be a reliable and aesthetically pleasing solution for modern engineering challenges[4].
Truss bridges are strong due to their use of interconnected triangles[2][7]. This design efficiently distributes weight and loads across a wide area, reducing stress on individual members[5][7]. The use of materials like steel, known for their high tensile and compressive strength, further enhances the bridge's overall durability[5][7].
A truss bridge distributes weight through its network of triangles[5][7]. When a load is applied, some members are compressed, while others are tensed[3]. The diagonal and vertical web members then distribute these forces throughout the structure, preventing any single point from bearing too much stress[1][3].
The main types of truss bridges include the Pratt truss, Warren truss, and K-truss[2]. The Pratt truss features diagonal members sloping towards the center, while the Warren truss has alternating diagonals[2]. The K-truss is used when the bay's depth is about twice its length[2].
Common materials include wood, iron, steel, and fiber-reinforced polymer (FRP)[4][5]. Wood was historically used but has been replaced by steel due to its superior strength and durability[4][5][7]. FRP is a modern alternative known for its lightweight and corrosion-resistant properties[4].
Truss bridges are used in various locations, including highways, railways, and pedestrian walkways[2][4]. They are also suitable for community spaces, equestrian trails, and nature parks[4]. Their versatility makes them ideal for spanning rivers, valleys, and other obstacles[4][5].
