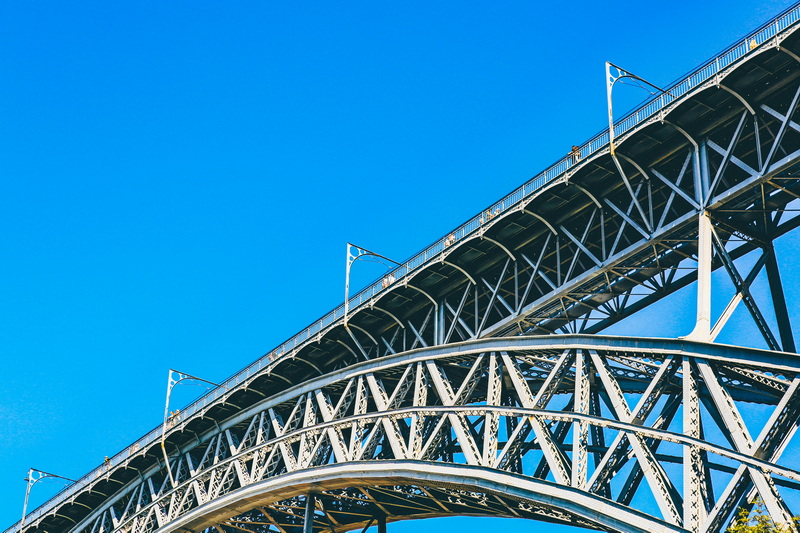

The Warren truss bridge, named after British engineer James Warren who patented it in 1848, represents a significant advancement in structural engineering, particularly in bridge design. This design distinguishes itself through its use of equilateral triangles in the framework, which efficiently distributes loads and minimizes bending or torsional forces on individual components. The Warren truss is characterized by longitudinal members connected by angled cross-members, creating alternately inverted equilateral triangle-shaped spaces along its span. This arrangement ensures that each strut, beam, or tie is subject only to tension or compression forces, resulting in a pure truss design.
James Warren, along with Willoughby Theobald Monzani, secured the patent for the Warren truss design in 1848. The design quickly gained recognition for its efficient use of materials and structural stability. Early iterations of the Warren truss were constructed using cast iron, with inclined side bands, rods, or plates arranged to form V-shaped patterns. Over time, the design evolved, incorporating wrought iron and, later, steel, with built-up riveted members to enhance strength and durability.
The Warren truss design operates on fundamental engineering principles to ensure structural integrity and load-bearing capacity. The use of equilateral triangles is central to its effectiveness. These triangles efficiently spread loads across the structure, minimizing the forces of compression and tension on the bridge components.
Compression: Outer diagonals experience compressive forces.
Tension: Upper and lower horizontal parts, along with the diagonals in the center, undergo tension.
As loads move across the bridge, the forces on individual members can shift between compression and tension, particularly in the central members. Engineers carefully calculate these forces to ensure each component is adequately sized to handle the anticipated loads.
Several variations of the Warren truss design exist, each tailored to specific structural requirements and aesthetic preferences.
Vertical beams are added to divide each triangle in the center, preventing buckling under pressure. This design is employed when the upper portions of the bridge lack sufficient stiffness.
Features intersecting triangle parts, creating a diamond-shaped appearance. This variation enhances the bridge's load-bearing capacity and rigidity.
Incorporates numerous diagonal ridges, resulting in a netted appearance. This design is often used for bridges requiring exceptional strength and stability.
Warren truss bridges offer several advantages that make them a preferred choice for various applications.
The ridged triangle design provides exceptional strength and stability. The structure effectively manages both compression and tension by distributing the load from the roadway throughout its intricate structure.
Requires less building material compared to many other bridge designs, making it a cost-effective option. The design utilizes materials such as wood, iron, and steel to their highest potential, ensuring that every piece plays a crucial role.
Can be constructed piece by piece, reducing costs compared to conventional methods that require the entire framework to be set up before building. This approach also increases the ways in which the bridge can be built, providing flexibility in design and construction.
The open nature of the bridge provides unobstructed views, which can be particularly appealing in scenic locations.
Due to their efficient design, Warren trusses are cost-effective and widely accepted around the world. They are easy to construct and provide good buckling resistance because compression members are not excessively long.
Despite their numerous advantages, Warren truss bridges also have certain limitations that must be considered during design and construction.
Joints and fittings require regular inspection, leading to potentially high maintenance costs. The large number of parts in a truss bridge means that maintenance can be both expensive and time-consuming.
Long-span bridges may experience deflection flaws that need correction during the building process.
Warren trusses do not spread concentrated loads evenly across all members. Most of the load is taken by the closest members, requiring increased cross-sections for these components.
Calculating the load-bearing capability can be complicated, requiring precise engineering and analysis.
Improper design can lead to material wastage if some parts do not contribute effectively to the bridge's structural integrity.
Some individuals find Warren truss bridges visually unattractive.
The structure of a truss bridge is inherently large, necessitating ample space for construction. The interconnecting triangular components need to be large in order to bear and distribute heavy loads.
Warren truss bridges are versatile structures suitable for a wide range of applications.

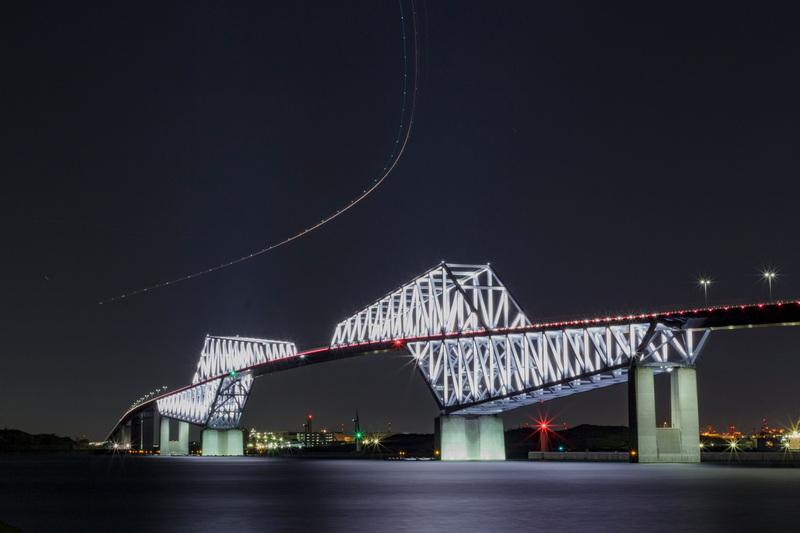

Commonly used for long-span bridges carrying vehicular traffic.
Suitable for railway bridges, efficiently supporting heavy train loads.
Employed in pedestrian bridges, providing safe and stable crossings.
The equal girder lengths make Warren trusses ideal for prefabricated modular bridges.
Designing a Warren truss bridge involves several critical considerations to ensure structural integrity and safety.
Engineers must accurately determine static and dynamic loads, including live loads (vehicles, people) and dead loads (bridge weight, decking).
Choosing appropriate materials, such as steel or wrought iron, based on strength, durability, and cost.
Calculating the required strengths for each truss member using load resistance factor design (LRFD) or allowable stress design (ASD).
Ensuring optimal connections between truss elements to withstand tension and compression forces.
Implementing measures to prevent buckling, especially in compression members, by adding vertical supports or adjusting member dimensions.
While the Warren truss is a popular choice, other truss designs offer unique characteristics that may be more suitable for specific applications.
Features diagonal members under tension and vertical members under compression. Typically more efficient and often used in underslung truss designs.
Contains vertical and diagonal members, with diagonal members in compression and vertical members in tension. It is the most common design.
Includes vertical members in compression, breaking them into smaller sections to reduce tension.
Utilizes isosceles triangles instead of equilateral triangles, which is a less efficient design.
The Warren truss design has played a significant role in the history of bridge engineering. Its development and implementation reflect advancements in materials, construction techniques, and structural analysis. The design was influenced by earlier truss configurations, such as those developed by Squire Whipple, and contributed to the evolution of modern bridge design.
Today, Warren truss bridges continue to be used, with ongoing advancements in design and construction. Modern structural modeling software enables engineers to create detailed wire-frame models and apply various loads to simulate real-world conditions. These tools facilitate the optimization of member sizes and connections, ensuring efficient and safe designs.
The Warren truss bridge stands as a testament to the ingenuity and innovation of structural engineers. Its efficient use of materials, structural stability, and adaptability have made it a popular choice for bridges around the world. While it has certain limitations, careful design and maintenance can ensure its long-term performance and safety. As engineering continues to evolve, the Warren truss will likely remain a valuable and relevant bridge design for many years to come.
The primary advantage of using equilateral triangles is that they efficiently distribute loads, minimizing bending and torsional forces on individual components. This design ensures that each structural member is primarily subjected to tension or compression, enhancing the overall stability and strength of the bridge.
A subdivided Warren truss includes additional vertical beams that divide each triangle in the center. These vertical beams prevent buckling in the upper portions of the bridge, particularly when those sections are not stiff enough to handle compressive forces on their own.
The main disadvantages include potentially high maintenance costs due to the many joints and fittings that need regular inspection, the possibility of deflection flaws in long-span bridges, and the fact that they do not spread concentrated loads evenly across all members.
Warren truss bridges are most commonly used in roadways, railways, and pedestrian bridges. Their design is particularly well-suited for long-span applications where strength and material efficiency are critical.
Modern structural modeling software allows engineers to create detailed wire-frame models and simulate real-world conditions by applying various loads. This facilitates the optimization of member sizes and connections, ensuring more efficient, safer, and cost-effective designs.
