A bridge is a structure that allows people and vehicles to cross over an open space. Bridges span, or stretch across, deep pits in the earth, bodies of water, and roads. A truss bridge is a type of bridge known for its unique design, which uses a framework of interconnected triangles to provide strength and stability. It's a fascinating engineering structure that allows people and vehicles to cross over obstacles such as rivers, valleys, and roads.
A truss is a series of individual members, acting in tension or compression and performing together as a unit. The beams are usually arranged in a repeated triangular pattern, since a triangle cannot be distorted by stress. In a truss bridge, two long - usually straight members known as chords - form the top and bottom; they are connected by a web of vertical posts and diagonals. The bridge is supported at the ends by abutments and sometimes in the middle by piers. A properly designed and built truss will distribute stresses throughout its structure, allowing the bridge to safely support its own weight, the weight of vehicles crossing it, and wind loads.
A truss bridge is made up of several triangular shapes that work together to support weight. The design of the truss bridge helps to distribute the forces acting on it, making it stronger than other types of bridges. Imagine holding a rectangular piece of cardboard and pushing on its corners – it bends easily, right? Now imagine a triangular piece of cardboard; it's much harder to bend or break. That's because triangles are inherently stable shapes.
The main advantage of using triangles in the design is that they cannot be distorted easily when under pressure. This means that the bridge can hold more weight without collapsing. The specific way they are connected determines how the bridge handles different types of forces. These forces are primarily tension and compression. Tension is a pulling force, like when you stretch a rubber band. Compression is a pushing force, like when you squeeze a sponge.
A truss bridge consists of several key components that each play an important role in its overall structure.
Chords: These are the horizontal members at the top and bottom of the truss. Think of them as the main beams that run along the length of the bridge. The top chord usually experiences compression (pushing forces), while the bottom chord experiences tension (pulling forces). Compression is like squeezing something together, while tension is like stretching it apart.
Web Members: These are the diagonal and vertical pieces that connect the top and bottom chords. They help distribute loads throughout the structure. They are like the helpers that make sure the forces are spread out evenly across the bridge. These members are designed to handle both tension and compression depending on their position and the load on the bridge.
Floor Beams: Floor beams make up the bottom of the bridge, also known as the bottom chord. They provide direct support to the bridge's deck.
Stringers: Perpendicular to the floor beams are the stringers, which are long beams that provide significant support to the bottom of the bridge. Stringers run parallel to the direction of traffic and help to distribute the load evenly across the floor beams.
Deck: Laying across the beams and the stringers is the deck, which the road or tracks will lay on top of. The deck is the surface that vehicles and pedestrians use to cross the bridge.
Joints: These are the points where the different members of the truss connect. The design and construction of the joints are critical to the overall strength and stability of the bridge. They must be strong enough to withstand the forces acting on them.
In a truss bridge, two long - usually straight members known as chords - form the top and bottom; they are connected by a web of vertical posts and diagonals. The bridge is supported at the ends by abutments and sometimes in the middle by piers.
There are several types of truss bridges, each with its own unique design and characteristics. Here are a few common types:
Pratt Truss: The Pratt truss is one of the most common types of truss bridges. It is characterized by vertical members that are under compression and diagonal members that are under tension. This design is particularly efficient for longer spans. The Pratt truss was patented in 1844 by Caleb and Thomas Pratt.
Warren Truss: The Warren truss is characterized by diagonal members that alternate in direction, forming a series of equilateral or isosceles triangles. This design is efficient for shorter spans and can be easily adapted to different load conditions. The Warren truss was patented in 1848 by James Warren and Willoughby Monzani.
Howe Truss: The Howe truss is the opposite of the Pratt truss, with diagonal members that are under compression and vertical members that are under tension. This design was commonly used in wooden bridges because it was easier to connect the wooden members under compression. The Howe truss was patented in 1840 by William Howe.
K Truss: The K truss is a variation of the Warren truss that includes vertical members in addition to the diagonal members. This design provides additional support and stability, making it suitable for longer spans and heavier loads. The K truss is named for the "K" shape formed by the intersecting diagonal members.
Baltimore Truss: The Baltimore truss is a variation of the Pratt truss that includes additional diagonal members in the lower section of the truss. This design provides additional support and stability, making it suitable for very long spans and heavy loads. The Baltimore truss was commonly used for railroad bridges.
The selection of the appropriate truss depends upon length of span, expected loads, and available budget.
Building a truss bridge requires careful planning and engineering. Engineers need to consider the weight of the bridge itself, the weight of the vehicles that will cross it, and the forces of nature, such as wind and earthquakes. They use mathematical calculations and computer models to ensure that the bridge is strong enough to withstand these forces.
When engineers design a truss bridge, they must consider several factors. First, they must determine the length of the span that the bridge needs to cross. This will determine the overall size and shape of the truss. Second, they must estimate the loads that the bridge will need to support. This includes the weight of the bridge itself, as well as the weight of vehicles and pedestrians. Finally, they must consider the environmental conditions in the area where the bridge will be built. This includes factors such as wind speed, temperature, and seismic activity.
Truss bridges are typically built using materials like wood or metal. Even on a "wooden" truss bridge, these members are often individual metal pieces such as bars or rods. Steel is a popular choice for truss bridges because it is strong, durable, and relatively lightweight. Wood was commonly used in older truss bridges, but it is less common today due to its lower strength and susceptibility to decay. Concrete can also be used in truss bridges, but it is typically used in combination with steel to provide additional strength and stability.
The choice of material depends on factors such as the size of the bridge, the loads it needs to support, and the available budget. Steel is often the preferred choice for large, heavy-duty bridges, while wood may be used for smaller, lighter-duty bridges.
A truss is simply an interconnected framework of beams that holds something up. The beams are usually arranged in a repeated triangular pattern, since a triangle cannot be distorted by stress. A properly designed and built truss will distribute stresses throughout its structure, allowing the bridge to safely support its own weight, the weight of vehicles crossing it, and wind loads. The triangles provide rigidity and prevent the bridge from collapsing under load.
Imagine trying to build a bridge using only rectangles. The rectangles would easily bend and deform under pressure, causing the bridge to collapse. But when you use triangles, the forces are distributed evenly throughout the structure, making it much stronger and more stable.
Students can design and build truss bridges, then test the strength of the bridge by attaching a scale. The essential materials and tools include craft sticks, cable ties, a glue gun with safety nozzle, hot glue sticks, cardboard or newspaper to protect work surface, a hanging scale, strong cord/rope, and a carbine hook or similar device.
Truss armor is made of a simple craft stick and cube construction, but includes a handle near one end. This allows the user to grasp the structure from within and wear it like armor. This activity demonstrates the strength and stability of truss structures in a fun and engaging way.
Truss bridges can be found all over the world, from small pedestrian bridges to massive highway bridges. Here are a few notable examples:
- Forth Bridge, Scotland: This iconic cantilever truss bridge spans the Firth of Forth and is a UNESCO World Heritage Site. It is known for its distinctive red color and its massive size. The Forth Bridge was completed in 1890 and is still in use today.

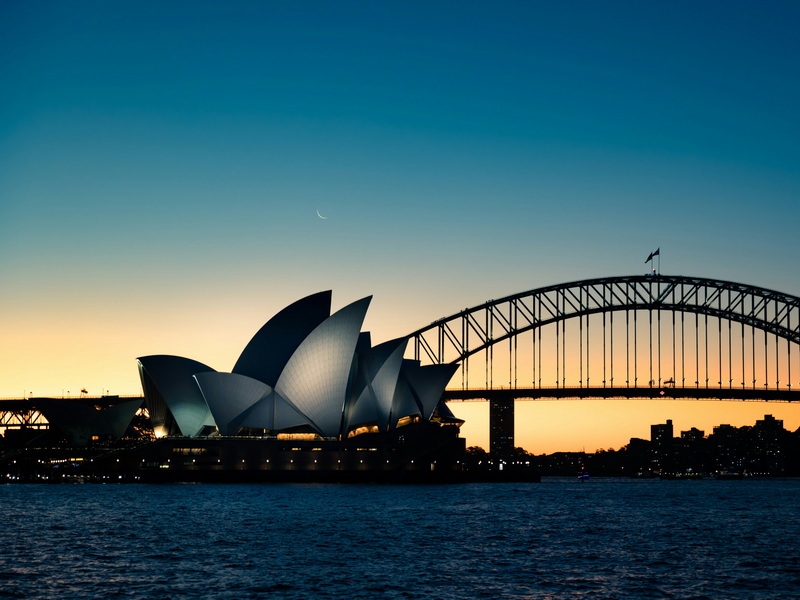

- Sydney Harbour Bridge, Australia: This iconic arch bridge features a truss-based design and is one of the most recognizable landmarks in Sydney. The Sydney Harbour Bridge was completed in 1932 and is still in use today.
- Quebec Bridge, Canada: This massive cantilever truss bridge spans the Saint Lawrence River and is one of the longest cantilever bridges in the world. The Quebec Bridge was completed in 1919 and is still in use today.
These examples demonstrate the versatility and durability of truss bridges and their ability to span long distances and carry heavy loads.
Truss bridges are a testament to the power of engineering and design. Their ability to efficiently distribute weight and withstand various forces makes them an essential part of our infrastructure. By understanding the principles behind truss bridges, we can appreciate the ingenuity and innovation that goes into creating these vital structures. They stand as a reminder of human creativity and our ability to overcome challenges through careful planning and design.
Truss bridges are typically built using materials like wood or metal. The choice of material depends on factors such as the size of the bridge, the loads it needs to support, and the available budget.
Triangles are used in truss bridges because they are inherently stable shapes. Unlike rectangles or other shapes, triangles cannot be distorted easily when under pressure. This makes the bridge stronger and able to hold more weight without collapsing.
There are several types of truss bridges, including the Pratt truss, Warren truss, and Howe truss. Each type has its own unique design and is suited for different applications.
Engineers use complex calculations and computer simulations to determine the maximum weight a truss bridge can hold. These calculations take into account the materials used, the design of the truss, and the expected loads on the bridge.
Yes, truss bridges can be built in different sizes to suit a variety of needs. From small pedestrian bridges to large highway bridges, the principles of truss design can be applied to create structures of various scales.
