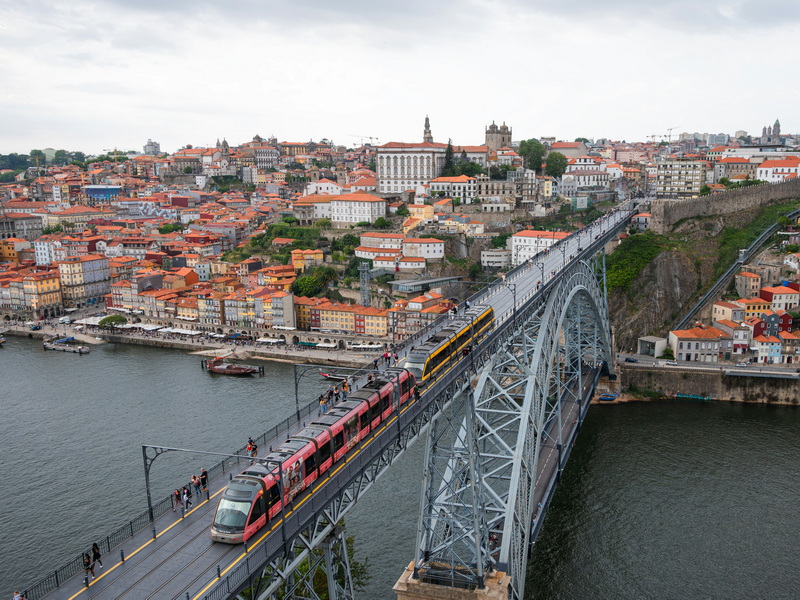

A truss bridge is a marvel of engineering that has revolutionized the way we traverse obstacles and connect communities. In scientific terms, a truss bridge is a structure whose load-bearing superstructure is composed of a truss - a system of connected elements forming triangular units[1]. These bridges utilize the inherent strength and stability of triangles to efficiently distribute loads and span greater distances than traditional beam bridges.
Truss bridges have played a crucial role in the development of transportation infrastructure since the 19th century. Their unique design allows them to support substantial weights while using materials efficiently, making them both economical and practical for various applications. From railway crossings to pedestrian walkways, truss bridges continue to be an essential part of our built environment.
The effectiveness of truss bridges lies in their ability to convert external loads primarily into axial forces within their members. This means that the individual elements of the truss experience either tension (pulling forces) or compression (pushing forces), rather than bending moments that are more common in other bridge types[7].
A typical truss bridge consists of several key components:
1. Top and Bottom Chords: These are the horizontal members that form the upper and lower boundaries of the truss.
2. Web Members: Vertical and diagonal elements that connect the top and bottom chords.
3. Joints or Panel Points: The intersections where truss members meet.
4. Abutments: Structures at each end of the bridge that support the entire truss system.
5. Deck: The surface on which traffic moves, supported by the truss structure.
When a load is applied to a truss bridge, it is distributed throughout the structure in a predictable manner:
- The top chord experiences compression forces.
- The bottom chord is subjected to tension forces.
- Web members may be in either tension or compression, depending on their orientation and the load distribution[7].
This efficient force distribution allows truss bridges to span longer distances with less material than solid beam bridges, making them both strong and economical.

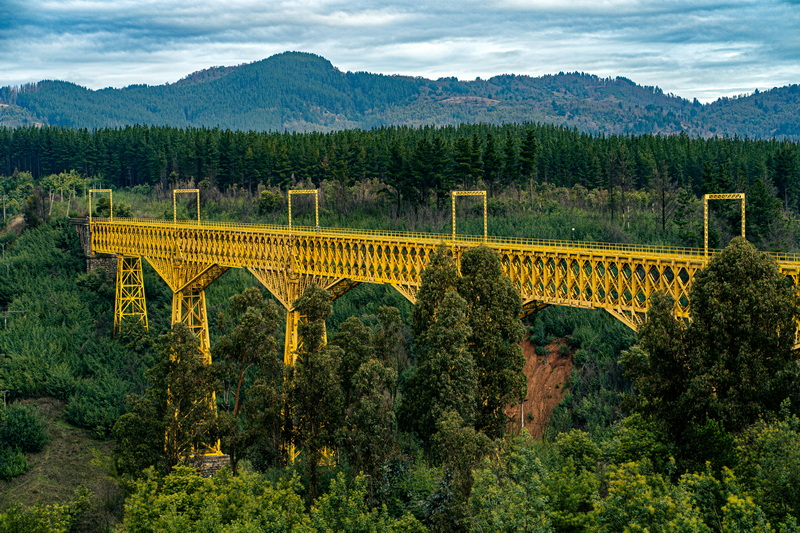

Over the years, engineers have developed various truss designs to suit different needs and environments. Some common types include:
Patented by Thomas and Caleb Pratt in 1844, this design features vertical members in compression and diagonal members in tension under typical loading conditions.
Invented by William Howe in 1840, this design is essentially the opposite of the Pratt truss, with diagonal members in compression and vertical members in tension[4].
Developed by James Warren and Willoughby Monzani in 1848, this design uses equilateral triangles and experiences both tension and compression in its diagonal members.
A modification of the Warren truss, featuring additional vertical members that form a "K" shape, providing extra stability.
Truss bridges offer several advantages that have contributed to their widespread use:
1. Strength and Stability: The triangular configuration of truss elements provides exceptional strength and stability, allowing these bridges to support heavy loads[2].
2. Material Efficiency: Truss bridges use materials more efficiently than solid beam bridges, resulting in lighter structures that are often more cost-effective[2].
3. Span Capability: Truss designs can span longer distances than simple beam bridges, making them suitable for crossing wide rivers or deep valleys[5].
4. Adaptability: Truss bridges can be designed to support various types of traffic, from pedestrians to heavy rail transport[8].
5. Ease of Construction: Many truss bridges can be prefabricated off-site and assembled quickly on location, reducing construction time and costs[8].

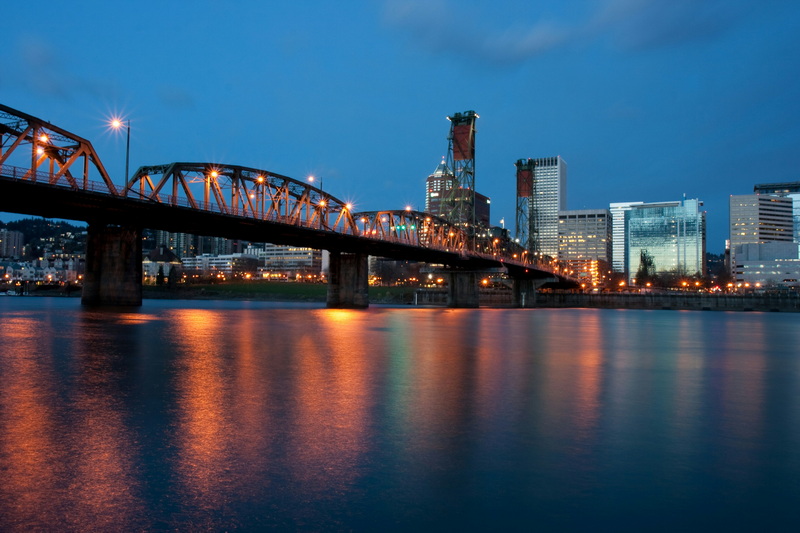

Truss bridges find applications in various settings:
Truss bridges are commonly used for road and railway crossings, especially where long spans are required. They can support the heavy loads associated with vehicular and train traffic efficiently.
Lightweight truss bridges are often employed for pedestrian and bicycle paths, providing safe passage over roads, rivers, or ravines.
Truss bridges, particularly those made of prefabricated components, are favored by military engineers for their rapid deployment capabilities in tactical situations.
In modern architecture, truss designs are sometimes incorporated into buildings not just for structural support but also as aesthetic elements.
The development of truss bridges marks a significant milestone in the history of civil engineering. The ability to span greater distances with less material opened up new possibilities for transportation and commerce.
One of the most famous historical examples is the Ikitsuki Bridge in Japan, which held the record for the longest truss bridge span at 400 meters[2]. Such achievements demonstrate the potential of truss design in pushing the boundaries of bridge engineering.
While the basic principles of truss bridges remain unchanged, modern engineering has introduced several innovations:
The use of high-strength steels and composite materials like fiber-reinforced polymers (FRP) has allowed for even lighter and more durable truss structures[8].
Sophisticated software allows engineers to optimize truss designs, analyzing stress distribution and predicting performance under various load conditions with unprecedented accuracy.
Modern truss bridges often incorporate sustainable design principles, using recycled materials and focusing on minimizing environmental impact during construction and throughout the bridge's lifecycle.
Despite their many advantages, truss bridges also present certain challenges:
1. Maintenance: The numerous joints and connections in a truss bridge require regular inspection and maintenance to prevent corrosion and ensure structural integrity.
2. Aesthetics: Some people find the complex appearance of truss bridges less visually appealing than other bridge types, although this is subjective.
3. Wind Resistance: The open structure of truss bridges can make them more susceptible to wind forces, requiring careful design considerations in areas prone to high winds.
4. Load Limitations: While efficient for their weight, truss bridges may have lower load capacities compared to some modern bridge designs, potentially limiting their use in certain high-traffic scenarios.
As we look to the future, truss bridges continue to evolve:
Researchers are exploring the use of smart materials that can self-diagnose and potentially self-repair, enhancing the longevity and safety of truss bridges.
Additive manufacturing techniques may revolutionize truss bridge construction, allowing for more complex and optimized designs to be produced efficiently.
Engineers are drawing inspiration from nature, studying biological structures to create more efficient and resilient truss designs.
In science, a truss bridge represents the practical application of fundamental principles of physics and engineering. It embodies the concept of using simple, repeating structures to create a whole that is greater than the sum of its parts. The truss bridge's ability to distribute forces efficiently through its members demonstrates key concepts in statics and materials science.
As we continue to push the boundaries of engineering, the truss bridge stands as a testament to human ingenuity and our ability to overcome natural obstacles. Its enduring presence in our infrastructure and its ongoing evolution highlight the dynamic nature of scientific progress in civil engineering.
While new bridge designs and materials emerge, the principles behind truss bridges remain relevant, continuing to inspire engineers and serve as a foundation for future innovations in structural design. The truss bridge, in its essence, is a physical manifestation of scientific principles put into practice, bridging the gap between theoretical knowledge and real-world application.
The main principle behind the strength of a truss bridge is the use of triangular structures. Triangles are inherently stable shapes that efficiently distribute forces throughout the structure, converting external loads into axial forces (tension and compression) within the truss members[1][7].
Truss bridges are generally more efficient than solid beam bridges in terms of material use. They can span longer distances using less material, making them more cost-effective for certain applications. However, their efficiency may be lower than some modern designs like cable-stayed bridges for very long spans[2][5].
Modern truss bridges are primarily constructed using steel due to its high strength-to-weight ratio. However, other materials such as aluminum and fiber-reinforced polymers (FRP) are also used, especially in pedestrian bridges or where corrosion resistance is crucial[8].
Computer-aided design (CAD) and finite element analysis (FEA) software have revolutionized truss bridge design. These technologies allow engineers to create more optimized designs, accurately predict structural behavior under various load conditions, and simulate performance before construction begins.
Truss bridges contribute to sustainable infrastructure development in several ways. Their efficient use of materials reduces the overall environmental impact of construction. Many modern truss bridges incorporate recycled materials and are designed for longevity, reducing the need for frequent replacements. Additionally, their lightweight nature can reduce foundation requirements, further minimizing environmental disruption[8].
