Bailey bridges are a type of modular bridge that can be quickly assembled and disassembled, making them ideal for temporary or emergency use. Originally designed during World War II, these bridges have evolved in design and material usage, leading to various maintenance requirements based on the materials used in their construction. This article explores the maintenance needs of Bailey bridges constructed from different materials, including steel, aluminum, and composite materials.

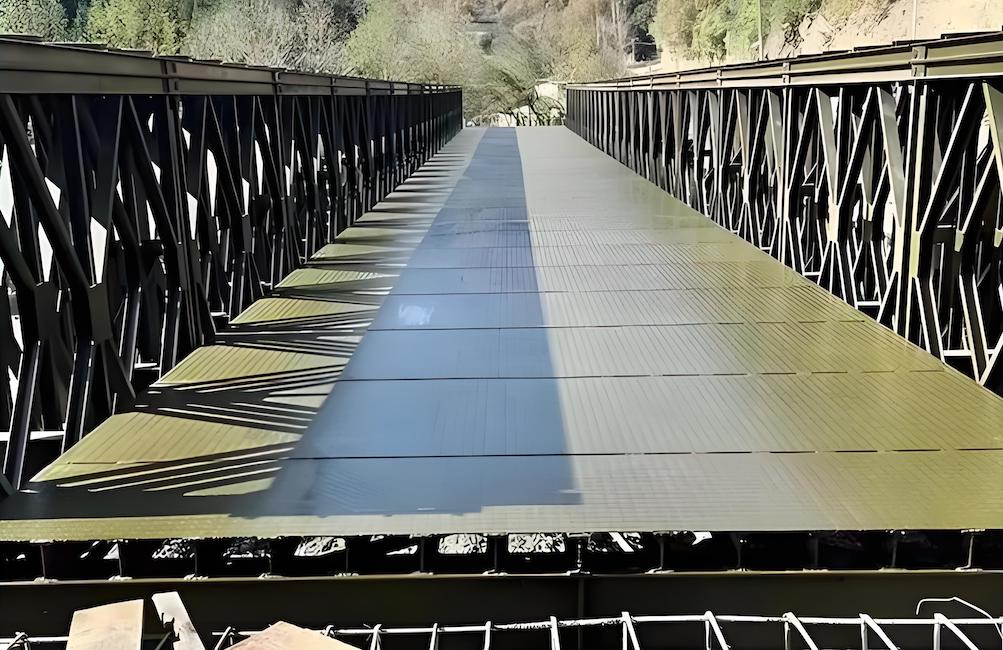

Bailey bridges are prefabricated, portable bridges that consist of a series of panels and trusses. They are designed to be easily transported and assembled in the field, making them suitable for military operations, disaster relief, and remote construction sites. The design allows for quick deployment, often within hours, and can support heavy loads, making them versatile in various applications. The historical significance of Bailey bridges cannot be overstated; they played a crucial role in military logistics during World War II, allowing for rapid movement of troops and supplies across difficult terrain. Over the decades, their design has been refined, and they have been adapted for civilian use, including temporary crossings during infrastructure repairs or natural disasters.

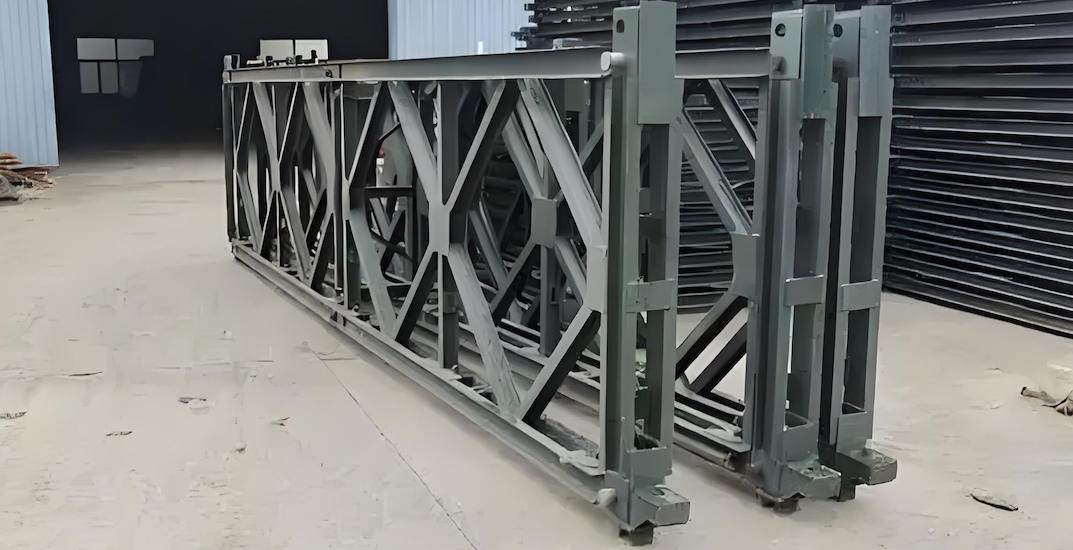

The design of Bailey bridges includes modular components that can be connected to form spans of varying lengths. The primary components include panels, trusses, and support beams. The modular nature of these bridges allows for easy repairs and replacements, which is a significant advantage in maintenance. Each component is engineered for strength and durability, ensuring that the bridge can withstand significant loads while remaining lightweight enough for easy transport. The ability to customize the length and configuration of Bailey bridges makes them particularly useful in diverse environments, from urban settings to remote wilderness areas.
Steel is the most common material used in the construction of Bailey bridges. Its high strength-to-weight ratio makes it ideal for supporting heavy loads. Steel bridges are typically galvanized or painted to protect against corrosion, which is a critical factor in their longevity. The choice of steel as a primary material is due to its availability, cost-effectiveness, and proven performance in various environmental conditions. Steel Bailey bridges can be designed to accommodate a wide range of traffic loads, making them suitable for both military and civilian applications.
The maintenance of steel Bailey bridges primarily focuses on preventing corrosion and ensuring structural integrity. Regular inspections are essential to identify any signs of rust or deterioration. Maintenance tasks include:
Surface Treatment: Regular painting or galvanizing is necessary to protect the steel from environmental factors. This treatment should be reapplied every few years, depending on the exposure to moisture and pollutants. The choice of protective coating can significantly impact the lifespan of the bridge, with some coatings offering better resistance to harsh weather conditions.
Structural Inspections: Routine inspections should be conducted to check for any signs of fatigue or stress in the steel components. This includes examining welds, joints, and connections for any signs of failure. Advanced inspection techniques, such as ultrasonic testing or magnetic particle inspection, can be employed to detect internal flaws that may not be visible to the naked eye.
Cleaning: Debris and dirt accumulation can lead to moisture retention, which accelerates corrosion. Regular cleaning of the bridge surfaces is necessary to maintain their condition. This process may involve pressure washing or using specialized cleaning agents to remove contaminants that could compromise the integrity of the steel.
Aluminum is increasingly being used in Bailey bridge construction due to its lightweight properties and resistance to corrosion. Aluminum bridges are particularly advantageous in environments where weight is a critical factor, such as in temporary installations. The use of aluminum not only reduces the overall weight of the bridge but also simplifies transportation and installation, making it an attractive option for emergency response scenarios.
Aluminum Bailey bridges require different maintenance strategies compared to their steel counterparts. While aluminum is resistant to corrosion, it is still susceptible to other forms of wear and tear.
Visual Inspections: Regular visual inspections are crucial to identify any signs of wear, such as scratches or dents. These can compromise the structural integrity of the bridge. Inspectors should pay close attention to areas where components connect, as these joints are often the most vulnerable to damage.
Cleaning: Although aluminum does not rust, it can oxidize. Regular cleaning with mild detergents can help maintain its appearance and prevent oxidation buildup. The cleaning process should be gentle to avoid scratching the surface, which could lead to further oxidation.
Joint Maintenance: The joints and connections in aluminum bridges should be checked for tightness and integrity. Loose connections can lead to structural issues over time. Regular tightening and inspection of fasteners are essential to ensure that the bridge remains stable and safe for use.
Composite materials, which combine different materials to enhance performance, are becoming popular in Bailey bridge construction. These materials can offer benefits such as reduced weight and increased resistance to environmental factors. The use of composites allows for innovative designs that can improve the overall performance of the bridge while reducing maintenance needs.
The maintenance of composite Bailey bridges involves unique considerations due to the nature of the materials used.
Inspection for Delamination: One of the primary concerns with composite materials is delamination, where layers of the material begin to separate. Regular inspections should focus on identifying any signs of this issue. Advanced imaging techniques can be employed to detect delamination before it becomes a significant problem.
Surface Protection: Composite materials may require protective coatings to enhance their durability against UV radiation and moisture. Regular checks should ensure that these coatings remain intact. The choice of coating can affect the longevity of the composite material, so selecting high-quality protective finishes is essential.
Cleaning and Maintenance: Similar to aluminum, composite materials should be cleaned regularly to prevent the buildup of dirt and debris, which can affect their performance. The cleaning process should be tailored to the specific type of composite material used, as some may require special care to avoid damage.
The maintenance requirements for Bailey bridges can vary significantly based on environmental conditions. Bridges located in areas with high humidity, heavy rainfall, or extreme temperatures may require more frequent inspections and maintenance. For instance, in coastal areas, saltwater exposure can accelerate corrosion in steel bridges, necessitating more rigorous maintenance protocols. Additionally, temperature fluctuations can cause expansion and contraction in materials, leading to stress and potential structural issues.
The volume and type of traffic that a Bailey bridge supports can also impact its maintenance needs. Bridges subjected to heavy loads or frequent use may experience wear and tear more quickly, necessitating more regular maintenance checks. Understanding the expected traffic patterns and load capacities is crucial for planning maintenance schedules. For example, a bridge used primarily for military transport may require more frequent inspections than one used for light civilian traffic.
The location of a Bailey bridge can influence maintenance strategies. Bridges in remote areas may require more planning for maintenance activities, including transportation of materials and personnel. Accessibility challenges can delay necessary repairs, making it essential to have contingency plans in place. In urban settings, maintenance may be complicated by traffic management issues, requiring coordination with local authorities to minimize disruption.
Bailey bridges are a vital solution for temporary and emergency crossings, and their maintenance is crucial for ensuring safety and longevity. The material used in their construction significantly influences the maintenance requirements. Steel bridges require regular corrosion protection and structural inspections, while aluminum bridges focus on visual inspections and cleaning. Composite material bridges present unique challenges, particularly concerning delamination and surface protection. Understanding these maintenance needs is essential for the effective management of Bailey bridges, ensuring they remain safe and functional for their intended use.
Regular inspections, appropriate surface treatments, and environmental considerations are key components of maintaining Bailey bridges, regardless of the materials used. By adhering to these maintenance practices, the lifespan and performance of these essential structures can be maximized. The ongoing evolution of materials and design in Bailey bridges will continue to shape their maintenance requirements, making it imperative for engineers and maintenance personnel to stay informed about best practices and emerging technologies in bridge maintenance.
The load capacity of Bailey bridges varies by material. Steel Bailey bridges typically have the highest load capacity due to their strength and durability, making them suitable for heavy military vehicles and equipment. Aluminum bridges, while lighter, have a lower load capacity but are still effective for moderate loads. Composite materials can be engineered for specific load requirements, balancing weight and strength, but their capacity depends on the design and material composition.
The remaining lifespan of a Bailey bridge can be assessed through regular inspections that evaluate structural integrity, material condition, and wear. Key indicators include checking for corrosion, fatigue in joints, and any signs of delamination in composite materials. Load testing and monitoring changes in deflection under load can also provide insights into the bridge's health. Engineers may use predictive modeling based on current conditions and historical data to estimate the remaining lifespan.
Best practices for repairing damaged components of a Bailey bridge include conducting a thorough inspection to assess the extent of the damage, followed by a detailed repair plan. For steel components, this may involve grinding out rust and applying protective coatings, while aluminum repairs might require welding or replacing damaged sections. Composite repairs often involve bonding techniques to restore integrity. It is crucial to use materials compatible with the original construction to ensure structural integrity.
Bailey bridges should be inspected at least annually, but the frequency may increase based on usage, environmental conditions, and the type of materials used. Bridges subjected to heavy traffic or harsh weather conditions may require more frequent inspections, possibly every six months. After significant events, such as floods or heavy storms, immediate inspections are recommended to assess any potential damage.
Environmental factors that significantly affect the maintenance of Bailey bridges include humidity, temperature fluctuations, and exposure to corrosive elements such as saltwater or industrial pollutants. High humidity can accelerate corrosion in steel bridges, while temperature changes can cause expansion and contraction in materials, leading to stress and potential structural issues. Additionally, bridges located in coastal areas may require more frequent maintenance due to salt exposure, which can corrode metal components.
