Bailey bridges are iconic structures in the world of engineering, renowned for their robust design, modular construction, and impressive load-bearing capabilities. Originally developed during World War II to facilitate rapid troop movements and logistical operations, Bailey bridges have since become a staple in both military and civilian infrastructure projects worldwide. Their unique combination of strength, versatility, and ease of assembly has made them a preferred solution for emergency bridging, temporary crossings, and even permanent installations in challenging environments.
This article delves deep into the strength and load capacity of Bailey bridges, exploring the engineering principles behind their design, the factors influencing their performance, and the numerous applications that showcase their enduring value. Through a comprehensive examination of their structural characteristics, real-world use cases, and design innovations, we aim to provide a thorough understanding of why Bailey bridges remain a symbol of engineering excellence.
The Bailey bridge was conceived by British engineer Donald Bailey in the early 1940s, at a time when the need for rapid, reliable bridging solutions was paramount. Its design was revolutionary: a portable, pre-fabricated truss bridge that could be assembled quickly by unskilled labor without the need for heavy equipment. The modular panels, pins, and transoms allowed for flexible configurations, enabling the bridge to span varying lengths and support different load requirements.
Over the decades, the Bailey bridge has undergone several enhancements. Modern variants incorporate stronger materials, improved corrosion resistance, and refined assembly techniques. Despite these advancements, the core principles of modularity and adaptability remain unchanged, ensuring the Bailey bridge's continued relevance in a rapidly evolving world.

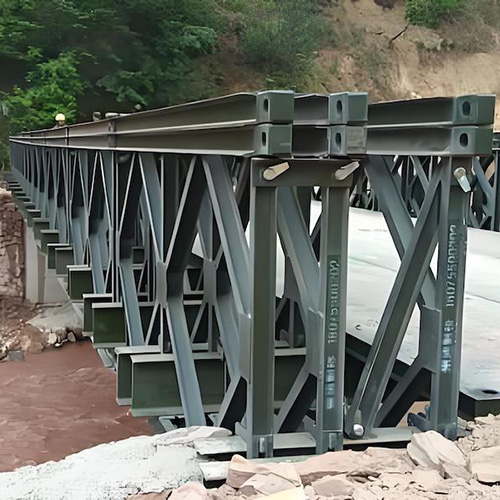

At the heart of the Bailey bridge's strength lies its modular design. The bridge is composed of standardized panels, each forming a rectangular truss. These panels can be connected side-by-side and stacked vertically to increase the bridge's width and load capacity. The use of pins and bolts ensures a secure connection, while allowing for rapid assembly and disassembly.
The truss configuration is a key factor in the bridge's ability to bear heavy loads. By distributing forces efficiently across the structure, the truss minimizes bending moments and reduces the risk of failure. The triangular geometry of the truss elements provides inherent stability, making the bridge capable of supporting both vehicular and pedestrian traffic under demanding conditions.
Originally constructed from high-tensile steel, Bailey bridges are now available in a variety of materials, including advanced alloys and composite materials. The choice of material directly impacts the bridge's strength, durability, and resistance to environmental factors such as corrosion and fatigue.
Bailey bridges can be customized to meet specific project requirements. By varying the number of panels, the length of the spans, and the type of decking, engineers can tailor the bridge to accommodate different load classes, site conditions, and intended uses.
The load capacity of a Bailey bridge is determined by several factors, including the number of truss panels used, the span length, the configuration of the bridge (single, double, or triple truss), and the quality of materials. Standard Bailey bridges are classified based on their Military Load Class (MLC), which denotes the maximum weight the bridge can safely support.
- Single Truss: Suitable for light to moderate loads, such as pedestrian traffic and light vehicles.
- Double Truss: Offers increased strength, supporting heavier vehicles, including trucks and small military vehicles.
- Triple Truss: Designed for maximum load capacity, capable of bearing the weight of tanks, heavy machinery, and large convoys.
The ability to stack and connect multiple trusses gives the Bailey bridge unparalleled flexibility in load management. By adjusting the configuration, engineers can ensure the bridge meets the specific demands of each project.
The span length—the distance between supports—directly affects the bridge's load capacity. Shorter spans can bear heavier loads, while longer spans require additional reinforcement or reduced weight limits. The modular nature of the Bailey bridge allows for the addition of intermediate supports (piers) to extend the total length without compromising strength.
The type of decking used also influences the bridge's load-bearing capabilities. Steel or timber decks are common, with steel offering superior strength and durability. The choice of decking material must align with the anticipated traffic loads and environmental conditions.
One of the most significant advantages of Bailey bridges is their rapid deployment capability. In disaster zones, conflict areas, or remote locations, time is often of the essence. The modular components can be transported easily, assembled on-site with minimal equipment, and made operational in a matter of hours or days. This speed does not come at the expense of strength—properly assembled Bailey bridges can rival permanent structures in load capacity.
Bailey bridges are used in a wide range of scenarios, from temporary river crossings and bypasses during road construction to permanent installations in rural or hard-to-access areas. Their ability to accommodate different span lengths, load requirements, and site conditions makes them invaluable to engineers and planners.
While designed for temporary use, many Bailey bridges remain in service for decades. Regular maintenance, such as inspections, tightening of connections, and replacement of worn components, can extend the lifespan of these structures significantly. Advances in protective coatings and material science have further enhanced their resistance to corrosion and fatigue.
Compared to traditional bridge construction, Bailey bridges offer substantial cost savings. The use of standardized, mass-produced components reduces manufacturing costs, while the ease of assembly lowers labor and equipment expenses. Additionally, the ability to reuse and relocate the bridge components maximizes return on investment.
The Bailey bridge's military origins are well-documented. During World War II, these bridges enabled Allied forces to traverse rivers, ravines, and destroyed infrastructure, often under enemy fire. Their reliability and strength were critical to the success of numerous campaigns, earning them a permanent place in military engineering.
In the aftermath of natural disasters such as floods, earthquakes, and hurricanes, Bailey bridges provide vital lifelines for affected communities. Their rapid deployment ensures that emergency services, supplies, and evacuees can move freely, mitigating the impact of infrastructure damage.
Bailey bridges are frequently used in civil engineering projects as temporary bypasses during road or bridge repairs. Their modularity allows for quick installation and removal, minimizing disruption to traffic and reducing project timelines.
In regions where permanent bridge construction is impractical due to cost or terrain, Bailey bridges offer a practical alternative. Their adaptability makes them suitable for use in mountainous areas, dense forests, and other challenging environments.
Modern Bailey bridges benefit from the use of high-strength, lightweight alloys and advanced composites. These materials offer improved load capacity, reduced weight, and greater resistance to environmental degradation.
Advancements in assembly methods, such as the use of hydraulic jacks and mechanized launching systems, have further reduced installation times and enhanced safety. These innovations make it possible to deploy Bailey bridges in even the most demanding conditions.
The integration of digital design tools and structural simulation software allows engineers to optimize Bailey bridge configurations for specific projects. By modeling load distributions, stress points, and environmental factors, designers can ensure maximum safety and efficiency.
Temperature fluctuations, moisture, wind, and seismic activity can all impact the performance of a Bailey bridge. Proper site assessment and material selection are essential to ensure the bridge can withstand local environmental stresses.
The strength of a Bailey bridge is only as good as its foundations. Properly designed abutments and piers are critical to distributing loads and preventing settlement or failure. Soil analysis and geotechnical studies inform the design of these supports.
The anticipated volume and type of traffic must be considered when designing a Bailey bridge. Heavy, continuous traffic may necessitate reinforced configurations, while occasional use may allow for lighter designs.
Regular inspections and maintenance are vital to preserving the structural integrity of Bailey bridges. Addressing issues such as rust, loose connections, and deck wear can prevent minor problems from escalating into major failures.
Before a Bailey bridge is put into service, it undergoes rigorous load testing to verify its strength and safety. These tests simulate the maximum anticipated loads, ensuring the bridge can perform as intended under real-world conditions. Certification processes vary by country and application, but all require adherence to strict engineering standards.
As infrastructure demands evolve, Bailey bridges continue to adapt. Innovations in materials, design, and construction methods promise to enhance their strength, durability, and versatility even further. Whether used in military operations, disaster response, or civil engineering, Bailey bridges are poised to remain a vital tool for decades to come.
Bailey bridges stand as a testament to the power of innovative engineering. Their remarkable strength, modularity, and adaptability have made them an indispensable solution for bridging challenges across the globe. From their origins on the battlefields of World War II to their modern applications in disaster relief and infrastructure development, Bailey bridges have proven time and again that strength and simplicity can go hand in hand.
The load capacity of a Bailey bridge is not a fixed value but a function of thoughtful design, quality materials, and meticulous assembly. By understanding the principles that govern their performance and the factors that influence their strength, engineers can deploy Bailey bridges with confidence, knowing they have a reliable solution for even the most demanding situations.
The maximum load capacity of a Bailey bridge depends on its configuration, span length, and materials used. Standard single truss configurations can support light vehicles and pedestrian traffic, while double and triple truss setups can handle heavy trucks, military vehicles, and even tanks. The exact capacity should be determined based on engineering calculations and load testing for each specific installation.
Assembly times vary depending on the length, configuration, and site conditions. In ideal circumstances, a small team can assemble a basic Bailey bridge in a matter of hours. Larger or more complex bridges may take several days. The modular design and standardized components greatly expedite the process compared to traditional bridge construction methods.
While originally designed for temporary use, many Bailey bridges have remained in service for decades. With proper maintenance, high-quality materials, and suitable foundations, Bailey bridges can serve as permanent solutions, especially in remote or resource-limited areas.
Regular maintenance is essential to ensure the longevity and safety of Bailey bridges. This includes routine inspections for rust, corrosion, loose connections, and deck wear. Prompt repairs and replacement of damaged components help prevent structural issues and extend the bridge's service life.
Bailey bridges are highly adaptable and can be deployed in a wide range of environments, including mountainous regions, flood-prone areas, and disaster zones. However, site-specific factors such as soil conditions, climate, and anticipated traffic loads must be carefully considered during the design and installation process to ensure optimal performance.
