Floating bridges are fascinating engineering structures that allow for the crossing of water bodies without the need for traditional support systems. These bridges are designed to float on the surface of the water, providing a unique solution to various transportation challenges. In this article, we will explore the mechanics of floating bridges, their design and construction, types, advantages, and some notable examples around the world.

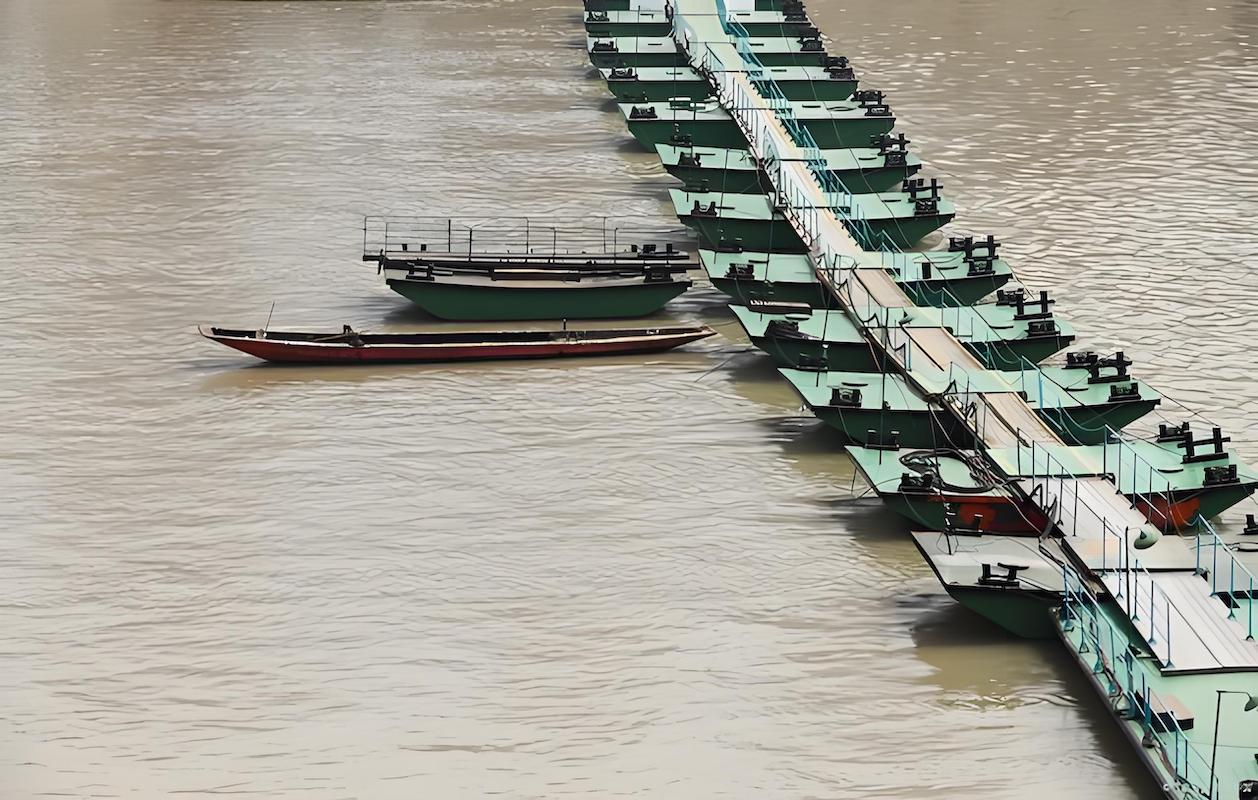

A floating bridge is a type of bridge that is constructed on water and supported by buoyant structures known as pontoons. Unlike traditional bridges that rely on piers or foundations anchored to the seabed, floating bridges are designed to float on the water's surface. This design allows them to adapt to changing water levels and conditions, making them particularly useful in areas prone to flooding or where the water depth is significant. The concept of floating bridges dates back centuries, with various cultures developing their own versions to meet local needs. Today, advancements in materials and engineering techniques have led to more sophisticated designs that enhance safety and functionality.
The fundamental principle behind floating bridges is buoyancy, which is the ability of an object to float in a fluid. The pontoons used in floating bridges are typically made from materials that are lighter than water, allowing them to displace enough water to support the weight of the bridge and any traffic it carries. The design must ensure that the bridge remains stable and does not tip or sway excessively in response to waves, wind, or other environmental factors. Engineers use complex calculations and simulations to predict how the bridge will behave under various conditions, ensuring that it can withstand the forces exerted by both the water and the loads it carries.
Floating bridges consist of several key components that work together to ensure their functionality and stability:
Pontoons: These are the primary floating elements of the bridge. They can be made from various materials, including concrete, steel, or synthetic materials, and are designed to provide buoyancy. The design of the pontoons is critical, as their shape and size directly affect the bridge's stability and load-bearing capacity.
Decking: The surface of the bridge where vehicles and pedestrians travel. This can be constructed from wood, concrete, or other durable materials. The decking must be designed to withstand the wear and tear of traffic while providing a safe and comfortable surface for users.
Anchoring Systems: To prevent the bridge from drifting away, anchoring systems are employed. These can include cables or chains that connect the bridge to the seabed or other stable structures. The anchoring system must be robust enough to handle the forces of wind and water, ensuring that the bridge remains securely in place.
Connection Mechanisms: Floating bridges often consist of multiple sections that are connected to allow for flexibility and movement. These connections must be designed to accommodate the movement of the water while maintaining structural integrity. Engineers often use specialized joints that can absorb shocks and vibrations, enhancing the bridge's durability.
The construction of a floating bridge typically involves several stages:
Design Phase: Engineers create detailed plans that consider factors such as water depth, expected traffic loads, and environmental conditions. This phase often includes extensive modeling and simulations to predict how the bridge will perform over time.
Fabrication of Pontoons: Pontoons are constructed on land, often in sections, and then transported to the water site. The fabrication process requires precision to ensure that each pontoon meets the necessary specifications for buoyancy and strength.
Assembly: Once the pontoons are in place, they are connected to form the bridge structure. The decking is then installed on top of the pontoons. This assembly process can be complex, requiring careful coordination to ensure that all components fit together correctly.
Anchoring: The bridge is anchored to prevent movement, ensuring it remains stable during use. This step is crucial, as improper anchoring can lead to significant safety issues.
Final Inspections: Before opening the bridge to traffic, thorough inspections are conducted to ensure safety and functionality. Engineers check for any potential weaknesses or issues that could affect the bridge's performance.
These bridges are designed for long-term use and are often constructed with heavy-duty materials to withstand constant traffic and environmental stresses. They typically feature robust anchoring systems and are built to accommodate significant loads. Permanent floating bridges are often used in urban areas where traditional bridge construction would be impractical or too costly.
Modular floating bridges are made up of smaller, prefabricated sections that can be easily assembled and disassembled. This type of bridge is particularly useful for temporary applications, such as during emergencies or military operations. The modular design allows for quick deployment and flexibility, making them ideal for situations where rapid response is necessary.
Custom floating bridges are designed to meet specific needs or environmental conditions. They may incorporate unique materials or designs to blend with the surrounding landscape or to address particular engineering challenges. These bridges often serve specialized purposes, such as providing access to remote areas or supporting specific types of traffic.
One of the primary advantages of floating bridges is their ability to adapt to changing water levels. This makes them ideal for areas with fluctuating tides or seasonal flooding. The flexibility of floating bridges allows them to remain functional even in extreme weather conditions, providing a reliable transportation route when other options may be compromised.
Floating bridges can be less invasive than traditional bridges, as they do not require extensive excavation or foundation work. This can help preserve the natural environment and minimize disruption to local ecosystems. By reducing the need for heavy construction equipment and materials, floating bridges can be a more sustainable option for infrastructure development.
In some cases, floating bridges can be more cost-effective than traditional bridges, particularly in areas where building piers or foundations would be prohibitively expensive or impractical. The reduced construction time and lower material costs associated with floating bridges can lead to significant savings for municipalities and governments.
Located in Washington State, the Evergreen Point Floating Bridge is the longest floating bridge in the world. It spans Lake Washington and serves as a vital transportation link for the region. The bridge features a unique design that allows it to accommodate heavy traffic while floating on the lake's surface. Its construction involved innovative engineering techniques and materials, setting a benchmark for future floating bridge projects.
This historic floating bridge in Curacao is a pontoon bridge that connects the capital city of Willemstad with the rest of the island. The bridge is notable for its unique design and is a popular tourist attraction. It serves not only as a functional transportation route but also as a cultural landmark, reflecting the rich history and architecture of the region.
While primarily a traditional bridge, the Jiangyin Yangtze River Bridge incorporates floating elements to accommodate the river's changing water levels. This innovative design showcases the versatility of floating bridge technology. The bridge is a critical infrastructure component, facilitating trade and travel across one of China's major waterways.
Floating bridges must be designed to withstand various environmental factors, including waves, wind, and currents. Engineers must carefully consider these elements during the design phase to ensure stability and safety. The dynamic nature of water bodies means that floating bridges are constantly subjected to changing conditions, requiring ongoing monitoring and maintenance.
Like all structures, floating bridges require regular maintenance to ensure their longevity. The materials used must be resistant to corrosion and wear, particularly in marine environments. Regular inspections and maintenance schedules are essential to identify and address any potential issues before they become significant problems.
Determining the load capacity of a floating bridge is crucial for its design. Engineers must calculate the expected traffic loads and ensure that the bridge can safely support them without compromising stability. This involves not only considering the weight of vehicles but also accounting for dynamic forces such as wind and waves that can affect the bridge's performance.
Floating bridges represent a remarkable achievement in civil engineering, combining innovative design with practical solutions for crossing water bodies. Their unique ability to float on the surface of the water allows for flexibility and adaptability in various environments. As technology continues to advance, the potential for floating bridges to address transportation challenges will only grow, making them an essential component of modern infrastructure. The ongoing development and refinement of floating bridge technology promise to enhance connectivity and accessibility in regions where traditional bridge construction is not feasible.
Floating bridges are typically constructed using materials such as concrete, steel, and synthetic materials. These materials are chosen for their buoyancy, durability, and resistance to environmental factors like corrosion and wear.
Floating bridges are designed to withstand extreme weather conditions by incorporating flexible anchoring systems and robust pontoons. Engineers conduct simulations to ensure that the bridge can adapt to high winds, waves, and changing water levels, maintaining stability and safety.
The main advantages of floating bridges include their adaptability to changing water levels, reduced environmental impact due to minimal excavation, and potential cost-effectiveness in areas where traditional bridge construction is impractical or too expensive.
Yes, floating bridges can be designed to accommodate heavy traffic. Engineers calculate the load capacity during the design phase, ensuring that the bridge can safely support the weight of vehicles and pedestrians while maintaining stability.
Floating bridges can be either permanent or temporary structures. Permanent floating bridges are built for long-term use and are designed to withstand constant traffic, while modular floating bridges can be assembled and disassembled for temporary applications, such as during emergencies or military operations.
