Designing a truss bridge is a fascinating and complex engineering task that combines creativity, physics, and practical considerations. This article will guide you through the essential steps and principles involved in starting the design of a truss bridge, from understanding its components to selecting the appropriate truss type and materials. Whether you are an engineering student, a professional, or simply curious, this comprehensive guide will provide you with a solid foundation.

How Do You Start Designing A Truss Bridge

Understanding the Basics of a Truss Bridge

A truss bridge is a type of bridge whose load-bearing superstructure is composed of a truss-a structure of connected elements forming triangular units. The triangular design is crucial because triangles are inherently stable shapes that efficiently distribute forces, such as tension and compression, throughout the structure.

Key Components of a Truss Bridge

Before designing, it is essential to understand the main parts of a truss bridge:

- Truss Frame: The outer framework consisting of the top chord, bottom chord, and end posts.

- Truss Members: The internal diagonal and vertical elements forming triangles that support loads.

- Foundation/Abutments and Piers: The substructure that anchors the bridge to the ground.

- Floor Beams and Outriggers: Support elements that carry loads between truss members.

- Decking: The surface on which vehicles and pedestrians travel.

- Stringers: Parallel beams supporting the decking over the abutments.

Each part plays a vital role in maintaining the bridge's strength and stability.

Step 1: Define the Problem and Requirements

The first step in designing a truss bridge is to clearly understand the problem you are solving. This involves asking critical questions:

- What is the purpose of the bridge? (Pedestrian, vehicle, railway)

- What is the span length and height required?

- What types of loads will the bridge carry? (Live loads such as people, vehicles; dead loads such as the bridge's own weight; environmental loads such as wind, snow, or earthquakes)

- What are the site conditions? (Soil type, weather, water flow)

- What materials are available and preferred? (Steel, timber, fiber-reinforced polymer)

A thorough understanding of these factors ensures your design will be functional, safe, and cost-effective.

Why Are Truss Bridges So Strong And Efficient

Step 2: Choose the Truss Design Type

There are several common truss designs, each with unique characteristics affecting strength, aesthetics, and suitability for different applications:

Howe Truss

- Features vertical members in tension and diagonal members in compression.

- Common for pedestrian bridges.

- Known for simplicity and efficiency.

Pratt Truss

- Diagonal members are in tension; vertical members are in compression.

- Often used in underslung truss designs where all members are below the deck.

Warren Truss

- Composed of equilateral triangles without vertical members.

- Alternates compression and tension in members.

- Efficient for spreading loads evenly.

K Truss

- Breaks vertical members into smaller sections.

- Vertical members are in compression; diagonal members in tension.

- Reduces tension forces in longer members.

Selecting the right truss type depends on the span length, load requirements, material, and aesthetic preferences.

Step 3: Develop a Preliminary Design

With the truss type selected, start sketching the bridge layout. This can be done on paper or using structural modeling software. Key considerations include:

- Dimensions: Set the length, height, and width according to the site and usage.

- Member Sizing: Estimate sizes of chords, verticals, and diagonals based on expected loads.

- Load Application: Identify where live loads (vehicles, pedestrians) and dead loads (bridge weight) will act.

- Support Conditions: Define how the bridge will be supported at abutments and piers.

Using software tools can help simulate loads and visualize stress distribution in members.

Step 4: Analyze Loads and Forces

A critical part of truss bridge design is analyzing the forces acting on each member. The main types of loads include:

- Dead Loads: Weight of the bridge structure itself.

- Live Loads: Traffic, pedestrians, and other movable loads.

- Environmental Loads: Wind, snow, seismic activity.

Using principles of statics and Newtonian physics, engineers calculate tension and compression forces in each truss member. Members are assumed to be pin-jointed, acting as two-force members either in tension or compression.

Load combinations are assessed to determine worst-case scenarios, ensuring the bridge can safely handle maximum expected stresses.

Step 5: Select Materials and Connections

Material choice influences the bridge's strength, durability, and cost. Common materials include:

- Steel: High strength, suitable for long spans.

- Timber: Traditional, aesthetic, used for shorter spans.

- Fiber-Reinforced Polymer (FRP): Lightweight, corrosion-resistant, increasingly popular for pedestrian bridges.

Connections between members (bolts, welds, rivets) must be designed to transfer forces efficiently without failure. Proper joint design and quality control during construction are critical.

Step 6: Create Detailed Drawings and Specifications

After analysis and material selection, prepare detailed construction drawings and specifications. These documents include:

- Exact dimensions and member sizes.

- Connection details.

- Material specifications.

- Load ratings.

- Construction sequence.

These plans guide fabrication and on-site assembly, ensuring the bridge meets design intent and safety standards.

Step 7: Construction Planning and Execution

Building a truss bridge involves:

- Constructing piers or abutments.

- Assembling truss members, often prefabricated.

- Erecting the trusses using cranes or other machinery.

- Securing trusses to supports.

- Installing decking and finishing elements.

Quality control and inspections throughout construction ensure structural integrity.

Conclusion

Starting the design of a truss bridge involves a systematic approach: understanding the problem, selecting an appropriate truss type, analyzing loads, choosing materials, and planning construction. By carefully considering each step, engineers create bridges that are not only strong and durable but also efficient and aesthetically pleasing. The truss bridge remains a timeless engineering marvel, combining simplicity and strength through its iconic triangular framework.

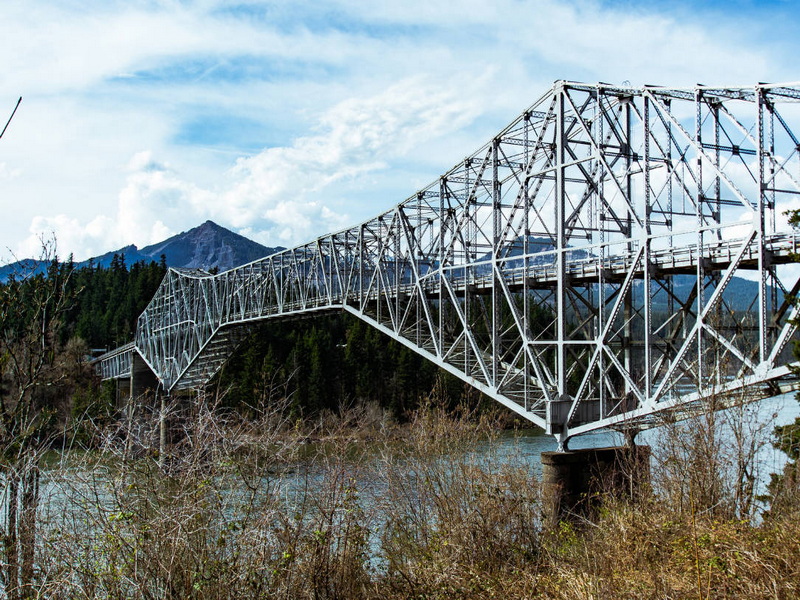

What Is The Difference Between Pratt And Warren Truss Styles

Frequently Asked Questions (FAQ)

1. What is the first step in designing a truss bridge?

The first step is to fully understand the bridge's purpose, site conditions, and load requirements to define the design problem clearly.

2. How do engineers decide which truss design to use?

Engineers select a truss design based on span length, load types, material availability, and aesthetic considerations, with common types including Howe, Pratt, Warren, and K trusses.

3. Why are triangles used in truss bridges?

Triangles provide inherent structural stability, efficiently distributing tension and compression forces, which prevents deformation under load.

4. What materials are commonly used for truss bridges?

Steel, timber, and fiber-reinforced polymers are common, each chosen based on strength requirements, environmental conditions, and budget.

5. How are loads analyzed in a truss bridge design?

Loads are analyzed using statics principles, assuming members act as two-force members in tension or compression, with software often used to simulate load effects and optimize member sizing.
