Modern truss bridges are marvels of engineering, blending time-tested geometric principles with cutting-edge materials and digital design tools. Their iconic frameworks—composed of interconnected triangles—have evolved over centuries, but the core objective remains unchanged: to efficiently span distances while carrying heavy loads with minimal material use. In this comprehensive exploration, we will delve into the principles, materials, design processes, and innovations that make modern truss bridges paragons of structural efficiency. We will also address common questions and challenges, providing a holistic understanding of how these bridges shape our infrastructure.
At the heart of every truss bridge lies the triangle—a shape renowned for its inherent structural stability. Unlike other polygons, a triangle cannot be deformed without changing the length of its sides. This property enables engineers to create frameworks that distribute loads evenly and resist both tension and compression.
- Top Chord: The upper horizontal member, primarily in compression.
- Bottom Chord: The lower horizontal member, mainly in tension.
- Web Members: Diagonal and vertical components connecting the chords, alternating between tension and compression depending on the load.
When a load is applied, forces travel through these members, dispersing energy efficiently and preventing localized stress concentrations. This geometric strategy allows truss bridges to span long distances while using less material compared to solid beam bridges.
The efficiency of a truss bridge is rooted in its load path:
1. Loads from vehicles or pedestrians are applied to the deck.
2. These forces transfer to the joints (nodes) of the truss.
3. The web members distribute the forces throughout the structure.
4. Ultimately, the forces are channeled to the supports and foundations.
This systematic distribution ensures that no single component bears excessive stress, maximizing the bridge's load-bearing capacity while minimizing material usage.
- Decking: The surface for traffic, supported by the truss framework.
- Abutments and Piers: End and intermediate supports that anchor the bridge and transfer loads to the ground.
- Connections: Bolts, rivets, or welds that join truss members, crucial for overall stability.
Material choice is pivotal for efficiency, durability, and cost-effectiveness. Modern truss bridges commonly utilize:
- Steel: Favored for its high strength-to-weight ratio, durability, and flexibility in design. Steel components can be prefabricated and assembled on-site, reducing construction time.
- Reinforced Concrete: Offers excellent compressive strength and low maintenance, often used in combination with steel.
- Timber: Used in smaller or temporary bridges, valued for its cost-effectiveness and ease of construction.
- Advanced Composites: Fiber-reinforced polymers and aluminum are emerging for lightweight, corrosion-resistant applications.
Each material brings distinct advantages and challenges, influencing the bridge's lifespan, maintenance needs, and environmental impact.

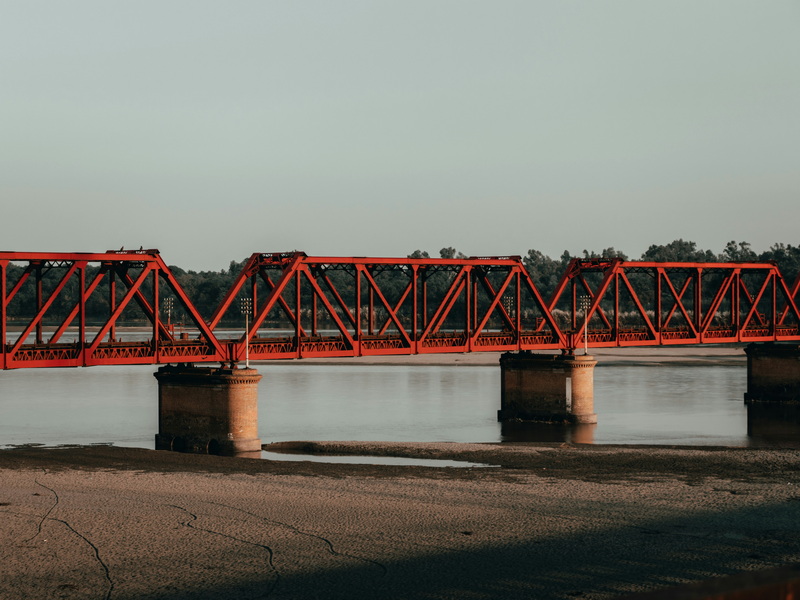

- Warren Truss: Features equilateral triangles, alternating compression and tension members. Praised for simplicity and even load distribution, it is ideal for short to medium spans.
- Pratt Truss: Diagonals slope towards the center, with verticals in compression and diagonals in tension. Efficient for heavy loads, making it popular in railways and highways.
- Howe Truss: The reverse of Pratt, with diagonals in compression and verticals in tension. Historically significant for wooden bridges.
- K Truss: Incorporates extra verticals for enhanced stability, suitable for longer spans.
- Tied Arch Truss: Merges arch and truss benefits, offering strength and visual appeal.
- Bowstring Truss: Curved upper chord provides additional support.
- Lenticular Truss: Lens-shaped for excellent stability, often seen in historic bridges.
The selection of a truss type depends on span length, load requirements, environmental conditions, and aesthetic considerations.
Before design begins, engineers conduct thorough site investigations:
- Geotechnical Analysis: Evaluates soil and foundation conditions.
- Environmental Impact Assessment: Considers effects on ecosystems and communities.
- Traffic and Load Studies: Determines expected usage and load patterns.
With advanced software, engineers create digital models to simulate:
- Load Scenarios: Including live loads (traffic), dead loads (bridge weight), and environmental loads (wind, snow, earthquakes).
- Force Distribution: Ensuring all members are appropriately sized for their expected stresses.
- Dynamic Behavior: Assessing responses to moving loads and potential vibrations.
Each truss member is chosen for optimal strength, weight, and cost. Engineers use Load Resistance Factor Design (LRFD) or Allowable Stress Design (ASD) to calculate required strengths, then refine the design to balance safety, efficiency, and aesthetics.
Material choices are finalized based on project requirements, budget, and environmental factors. Detailed drawings specify dimensions, connection types, and protective treatments (such as anti-corrosion coatings for steel).
Modern truss bridges often leverage prefabrication:
- Off-site Manufacturing: Truss sections are built in controlled environments, ensuring quality and reducing on-site labor.
- Modular Assembly: Components are transported and assembled on-site, minimizing traffic disruption and construction time.
Designs incorporate features for easy inspection and maintenance, such as accessible walkways and removable panels. Regular inspections are vital to detect fatigue, corrosion, or damage, ensuring long-term safety and performance.
The interconnected triangles of a truss bridge provide maximum strength with minimal material. This not only reduces construction costs but also lowers the bridge's environmental footprint.
Truss bridges can be tailored to a wide range of spans and load conditions. Their modular nature allows for rapid assembly and adaptation to challenging sites, from urban highways to remote river crossings.
By manufacturing components off-site, construction times are shortened, and quality control is improved. This approach also reduces the impact on local communities and environments during the building phase.
The geometric patterns of truss bridges often become iconic landmarks, blending engineering function with architectural beauty. Their open frameworks can be designed to complement natural landscapes or urban skylines.
Open truss designs facilitate inspection and repairs, contributing to longer service lives and lower lifecycle costs.
While truss bridges are efficient, their intricate frameworks can complicate construction and repairs. Advances in digital modeling and prefabrication help mitigate these challenges by streamlining assembly and ensuring precision.
The numerous connections in a truss bridge are susceptible to fatigue over time, especially under repetitive traffic loads. Regular inspection, high-quality materials, and robust connection designs are essential to address this issue.
The open structure of truss bridges can make them vulnerable to wind loads. Engineers use aerodynamic modeling and wind tunnel testing to optimize designs for stability in high-wind regions.
Steel truss bridges require protective coatings and regular maintenance to prevent rust, particularly in harsh climates. The use of weathering steel, stainless steel, or advanced composites is becoming more common to enhance durability.
While truss bridges use less material than solid-beam bridges, complex designs and high-quality materials can increase costs. Engineers balance efficiency, durability, and budget constraints to deliver optimal solutions.
- High-Performance Steel: Offers greater strength and corrosion resistance.
- Fiber-Reinforced Polymers (FRP): Lightweight, strong, and resistant to environmental degradation.
- Sustainable Materials: Research into recycled steel and eco-friendly composites is ongoing.
- Building Information Modeling (BIM): Integrates all aspects of bridge design, construction, and maintenance into a single digital platform.
- Finite Element Analysis (FEA): Enables detailed simulation of stresses and deformations under various load scenarios.
- Sensors and IoT Devices: Embedded in bridges to monitor structural health in real time, detecting issues before they become critical.
- Automated Inspection Drones: Used for visual inspections, reducing the need for manual access and improving safety.
- Minimizing Environmental Impact: Prefabrication, reduced material usage, and careful site selection help protect ecosystems.
- Lifecycle Analysis: Designs consider not just initial costs but long-term maintenance, durability, and eventual decommissioning.
Modern truss bridges exemplify the fusion of timeless geometric principles with state-of-the-art engineering. Their efficiency stems from the strategic use of materials, innovative design processes, and adaptability to diverse environments and load conditions. As infrastructure demands grow and technology advances, truss bridges continue to evolve—embracing new materials, digital tools, and sustainable practices to meet the challenges of the future.
Their enduring popularity is a testament to the power of thoughtful design and engineering ingenuity. Whether spanning a bustling urban river or a remote mountain gorge, modern truss bridges remain vital arteries in our transportation networks, balancing strength, efficiency, and beauty for generations to come.
Truss bridges are more efficient because their triangular frameworks distribute loads evenly, allowing them to span long distances with less material. This results in lower construction costs, reduced material usage, and high load-bearing capacity. Their modular design also enables rapid assembly and easy adaptation to different sites and conditions.
Engineers select a truss design based on factors such as span length, expected loads, environmental conditions, and budget. For example, Warren trusses are ideal for short to medium spans, while Pratt or K trusses are preferred for longer spans or heavier traffic. The choice also considers aesthetics, maintenance requirements, and the surrounding environment.
Steel is the most common material due to its high strength-to-weight ratio, durability, and flexibility in design. Reinforced concrete is used for its compressive strength and low maintenance, while timber and advanced composites are chosen for specific applications where cost, weight, or corrosion resistance are priorities.
Modern technologies such as digital modeling, finite element analysis, and building information modeling (BIM) enable precise design and simulation of bridge behavior under various loads. Smart sensors and monitoring systems provide real-time data on structural health, allowing for proactive maintenance and enhanced safety.
The primary challenges include fatigue in connections, corrosion of steel components, and vulnerability to environmental forces like wind. These are addressed through regular inspections, protective coatings, use of durable materials, and design features that facilitate maintenance access. Advanced monitoring systems also help detect issues early, extending the bridge's service life.
