Bailey bridges are portable, prefabricated truss bridges that have been widely utilized since their inception during World War II. Renowned for their modular design and ease of assembly, these bridges serve critical roles in both military and civil engineering applications. Their ability to be rapidly deployed in various environments makes them invaluable in emergency situations, disaster relief, and infrastructure development. This article provides a comprehensive overview of the classification methods for Bailey bridges, focusing on their types, applications, and advantages, while also highlighting their historical significance and ongoing relevance in modern engineering.
A Bailey bridge is constructed from standardized steel panels that can be quickly assembled to form a robust bridge structure. This design allows for flexibility in both length and load capacity, making it suitable for a variety of applications, ranging from temporary crossings to permanent installations. The modular nature of Bailey bridges means that they can be easily transported and assembled on-site, which is particularly beneficial in remote or challenging locations where traditional construction methods may be impractical. Additionally, the use of high-strength steel in their construction ensures that they can withstand significant loads while maintaining structural integrity.
Bailey bridges can be classified based on several criteria, including structural configuration, load capacity, intended use, and even the shape of the bridge deck. Below are the primary classification methods, each of which reflects the versatility and adaptability of Bailey bridges to meet diverse engineering needs.
● Single-Single Bailey Bridge: The most basic form, consisting of a single row of panels on each side, suitable for light vehicular traffic and pedestrian use. This configuration is often employed in temporary applications where minimal load is expected, such as footbridges in parks or rural areas.
● Double-Single Bailey Bridge: Enhances load capacity with two rows of panels on each side, ideal for moderate vehicular traffic. This type is commonly used in construction sites or as temporary detours during road repairs, providing a reliable crossing for small trucks and equipment.

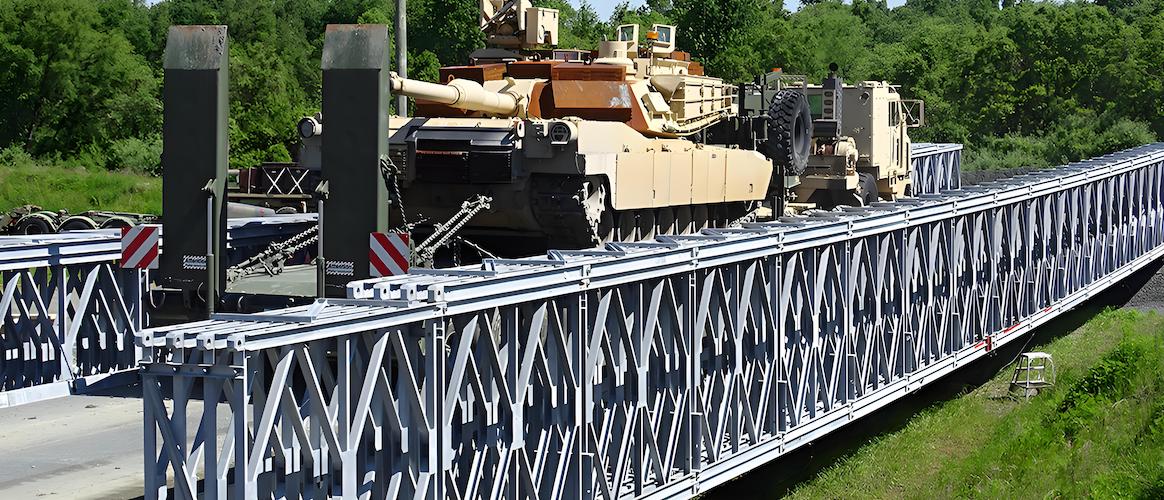

● Double-Double Bailey Bridge: Utilizes two rows of panels on both sides, significantly increasing strength and load-bearing capacity for heavy-duty applications. This configuration is often seen in military operations where heavy vehicles need to cross, ensuring that the bridge can support tanks and other armored vehicles.
● Triple Bailey Bridge: Employs three rows of panels, designed for the most demanding scenarios, often used in critical military or infrastructure projects. This type is particularly useful in emergency situations where rapid deployment of a strong and reliable bridge is essential for logistics and supply chains.
● Light Load Bailey Bridges: Designed for pedestrian and light vehicle traffic, typically spanning shorter distances. These bridges are often used in parks, pedestrian walkways, and temporary crossings where heavy loads are not anticipated.
● Medium Load Bailey Bridges: Suitable for moderate traffic, including small trucks and construction equipment. They are frequently utilized in urban settings for temporary road closures or detours, allowing for continued access while construction or repairs are underway.
● Heavy Load Bailey Bridges: Capable of supporting heavy military vehicles and construction machinery, often deployed in emergency situations. These bridges are critical in disaster response scenarios, where they can quickly restore access to affected areas, facilitating the movement of rescue and recovery teams.
● Military Bailey Bridges: Originally designed for military use, these bridges are deployed in combat zones for rapid infrastructure development. Their ability to be assembled quickly under challenging conditions makes them indispensable for military engineers.
● Civil Engineering Bailey Bridges: Used in civilian applications for temporary detours, flood control, and permanent installations in remote areas. These bridges play a vital role in maintaining transportation networks during natural disasters, ensuring that communities remain connected.
● Orthogonal Bridges: The centerline of the bridge is perpendicular to the direction of the main river channel or route, making it straightforward for direct crossings. This design is often preferred for its simplicity and ease of construction, particularly in rural areas.
● Skew Bridges: The centerline intersects the main river channel at an angle, introducing complexity in structural stress and construction. Engineers must carefully calculate the load distribution to ensure safety and stability, making these bridges suitable for more complex crossings.
● Curved Bridges: Designed with the load-bearing structure aligned along the curve of the route, requiring careful engineering for stress distribution and vehicular movement. These bridges are often used in urban environments where roads may not follow a straight path, enhancing traffic flow and safety.
● Prefabricated Bridges: These bridges are manufactured using industrialized processes, which reduce costs and increase construction speed while ensuring quality. The prefabrication process allows for components to be produced in a controlled environment, minimizing delays caused by weather or site conditions.
● Temporary Bridges: Constructed for short-term use, often to maintain traffic until a permanent bridge is completed. These structures are designed for quick assembly and disassembly, making them ideal for construction projects or emergency situations.
● Permanent Bridges: Designed for long-term use, adhering to specific design criteria for durability and maintenance. These bridges are built to withstand environmental factors and heavy traffic over extended periods, ensuring safety and reliability.
● Semi-Permanent Bridges: Feature a substructure designed for permanent use, while the superstructure remains temporary, allowing for flexibility in various applications. This design is particularly useful in situations where future modifications or upgrades may be necessary.
Bailey bridges offer numerous benefits, making them a preferred choice in various scenarios:
● Portability: Lightweight components allow for easy transport and quick assembly, enabling rapid deployment in emergency situations.
● Flexibility: Can be adapted to different lengths and widths to meet specific site conditions, making them suitable for a wide range of applications.
● Cost-Effectiveness: Lower construction costs compared to permanent bridges, making them ideal for temporary projects. Their quick assembly also reduces labor costs and minimizes disruption to traffic.
Despite their versatility, Bailey bridges have some limitations:
● Durability: As temporary structures, they may require maintenance and reinforcement for long-term use. Over time, exposure to the elements can lead to wear and tear, necessitating regular inspections.
● Aesthetic Limitations: Their utilitarian design may not be visually appealing in scenic or urban settings. This can be a consideration for projects where aesthetics are important, such as in parks or historical areas.
The construction of Bailey bridges involves several key techniques:
● Preparation: Site assessment and preparation of necessary equipment, including cranes and safety gear. Proper planning is essential to ensure that the assembly process is efficient and safe.
● Assembly: Components are connected using pins and clamps, allowing for rapid construction without the need for heavy machinery. This method not only speeds up the process but also reduces the risk of accidents during assembly.
● Quality Assurance: Regular inspections and adherence to safety protocols ensure the integrity of the bridge. Engineers and construction teams must follow strict guidelines to maintain safety standards throughout the construction process.
Bailey bridges represent a significant advancement in bridge engineering, combining strength, portability, and rapid assembly. Understanding the various classification methods and construction techniques is essential for engineers and project managers involved in infrastructure development. Whether for military or civil applications, Bailey bridges continue to play a crucial role in modern construction, providing effective solutions for a wide range of challenges. Their ongoing evolution and adaptation to new technologies ensure that they remain relevant in addressing the infrastructure needs of the future.
While steel is the primary material used in the construction of Bailey bridges due to its strength and durability, other materials may also be utilized. These can include aluminum for lightweight applications, concrete for foundations and supports, and various types of coatings to protect against corrosion. Additionally, high-strength bolts and connectors are used to ensure the structural integrity of the bridge.
Environmental factors such as weather conditions, temperature fluctuations, humidity, and exposure to chemicals can significantly impact the lifespan and maintenance of Bailey bridges. For instance, prolonged exposure to moisture can lead to rust and corrosion of steel components, while extreme temperatures can affect the integrity of the materials. Regular inspections and maintenance, including repainting and rust prevention measures, are essential to prolong the life of these structures.
Bailey bridges are increasingly being used in innovative ways beyond their traditional applications. They are now employed in disaster relief efforts to quickly restore access in areas affected by natural disasters, such as floods or earthquakes. Additionally, they are used in temporary pedestrian crossings during large events, as well as in military operations for rapid deployment in combat zones. Their modular design also allows for creative uses in art installations and community projects.
The maximum load capacity of a Bailey bridge varies depending on its configuration and design. Generally, light load Bailey bridges can support up to 10 tons, medium load bridges can handle around 20-30 tons, and heavy load bridges can support 40 tons or more. The specific load capacity is determined by factors such as the number of panels used, the structural configuration, and the materials employed in construction.
The assembly time for a Bailey bridge can vary based on its size and complexity, as well as the experience of the construction team. However, a standard Bailey bridge can typically be assembled in a matter of hours to a few days. The modular design allows for quick assembly using simple tools and techniques, making it an efficient solution for urgent infrastructure needs. Proper planning and preparation can further expedite the assembly process.
