Bailey bridges are a type of portable, prefabricated truss bridge that has been widely used since their development during World War II. They are known for their ease of assembly, lightweight design, and versatility in various applications, including military, civil engineering, and emergency relief. This article explores the different types of Bailey bridges, focusing on their load capacities and span lengths, and how these factors influence their practical applications.
A Bailey bridge consists of a series of panels that are assembled to form a bridge structure. The panels are typically made of steel and are designed to be lightweight yet strong enough to support significant loads. The modular nature of Bailey bridges allows for quick assembly and disassembly, making them ideal for temporary or emergency use. The design is characterized by its interlocking components, which can be transported easily and assembled on-site without the need for heavy machinery. This feature is particularly advantageous in remote or challenging environments where traditional construction methods may be impractical.
The Bailey bridge was developed in the early 1940s by the British military to provide a quick and efficient means of crossing obstacles such as rivers and ravines. Its design has evolved over the years, but the fundamental principles of modularity and ease of construction remain. The bridge was named after Sir Donald Bailey, who was instrumental in its design. Initially used in military operations, the Bailey bridge has since found applications in civilian infrastructure, disaster relief, and temporary crossings, showcasing its adaptability and enduring relevance in modern engineering.
Bailey bridges can be categorized based on their design configurations, which directly affect their load capacities and span lengths. The most common types include:
Single-lane Bailey bridges are designed to accommodate one lane of traffic. They are typically used in situations where space is limited or where only light traffic is expected. These bridges are often employed in rural areas or for temporary installations where the volume of traffic does not justify a larger structure.
The load capacity of a single-lane Bailey bridge generally ranges from 20 to 40 tons, depending on the specific design and materials used. This capacity can be increased by adding additional truss panels or using more robust materials. The ability to customize the load capacity makes single-lane bridges a flexible option for various applications, from pedestrian crossings to light vehicle traffic.
Single-lane Bailey bridges can span lengths of up to 30 meters. Their relatively short span makes them suitable for smaller crossings, such as streams or narrow roads. The compact design allows for quick installation, making them ideal for emergency situations where time is of the essence.
Double-lane Bailey bridges are designed to support two lanes of traffic, making them suitable for heavier traffic loads and larger vehicles. These bridges are commonly used in urban settings or on main roads where traffic volume is higher.
The load capacity of double-lane Bailey bridges typically ranges from 40 to 70 tons. This increased capacity is achieved through a more complex truss design and the use of additional panels. The enhanced load-bearing capabilities allow these bridges to accommodate larger vehicles, including trucks and buses, making them essential for maintaining transportation networks.
Double-lane Bailey bridges can span lengths of up to 45 meters. Their ability to support greater spans makes them ideal for larger crossings, such as rivers or highways. The design allows for efficient traffic flow while ensuring safety and stability, even under heavy loads.
In addition to standard single and double-lane designs, Bailey bridges can be configured in various ways to meet specific needs.

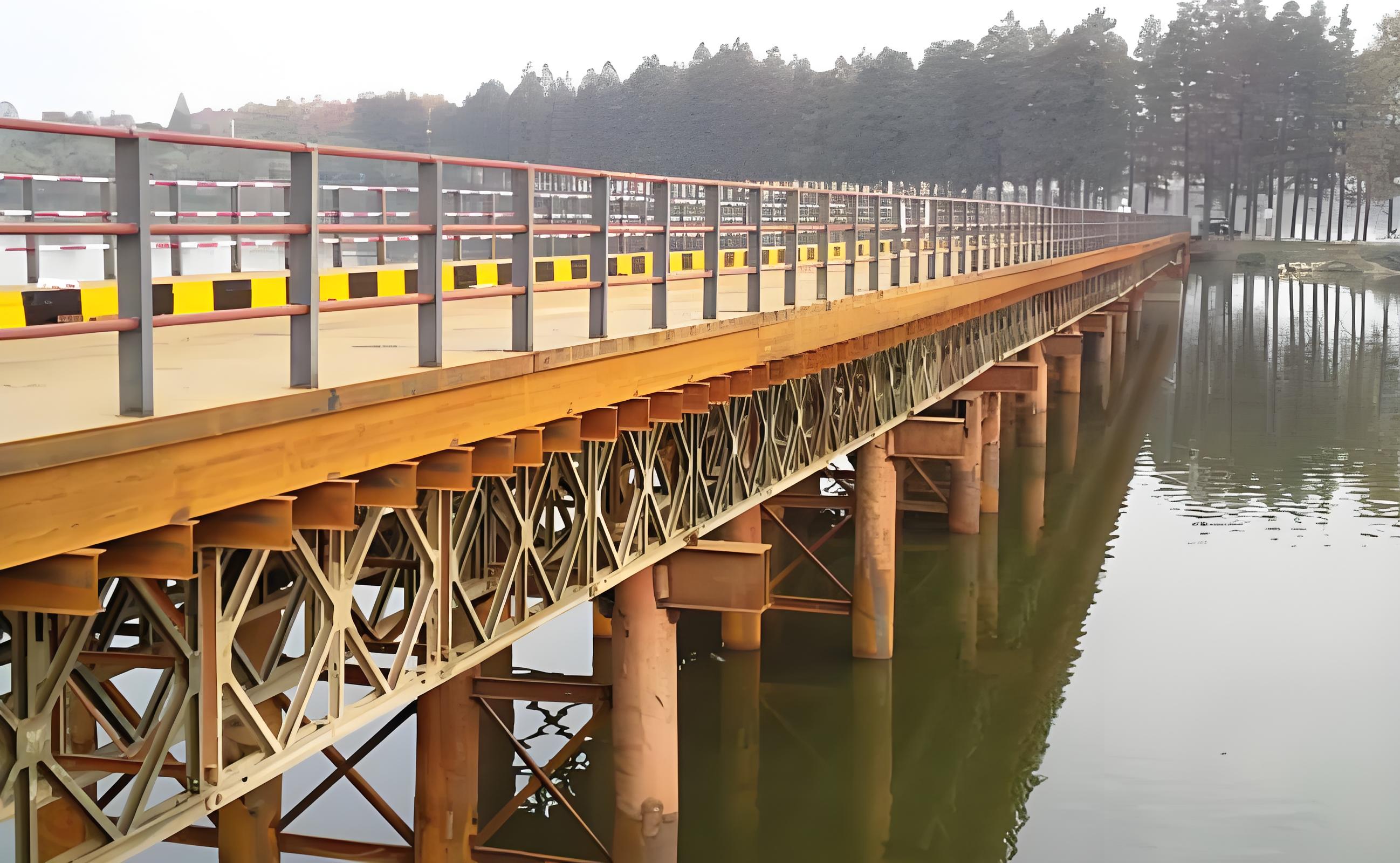

Multi-span Bailey bridges consist of several connected spans, allowing for longer crossings. This configuration is particularly useful in situations where a single span would be impractical due to site constraints or the need to cross wide obstacles.
The load capacity of multi-span Bailey bridges can exceed 100 tons, depending on the number of spans and the design of the trusses. This high capacity makes them suitable for heavy-duty applications, including industrial use and major transportation routes.
These bridges can achieve total lengths of over 100 meters, making them suitable for extensive infrastructure projects. The ability to create longer spans without compromising structural integrity is a significant advantage in modern engineering, allowing for more flexible design options.
Arched Bailey bridges utilize a curved design to distribute loads more effectively. This design not only enhances the aesthetic appeal of the bridge but also improves its structural performance.
The load capacity of arched Bailey bridges can be similar to that of multi-span designs, often exceeding 100 tons. The arch design allows for efficient load distribution, reducing stress on individual components and enhancing overall stability.
Arched designs can also span significant distances, making them suitable for both aesthetic and functional applications. The graceful curves of arched bridges can blend harmoniously with natural landscapes, making them a popular choice for scenic routes and parks.
Several factors influence the load capacity and span length of Bailey bridges, including:
The type of truss used in the bridge's construction plays a crucial role in determining its load-bearing capacity. Common truss designs include:
Warren Truss: Known for its efficiency in distributing loads, the Warren truss is commonly used in Bailey bridges. Its triangular configuration provides excellent strength-to-weight ratios, making it ideal for various applications.
Howe Truss: This design features vertical and diagonal members, providing additional strength for heavier loads. The Howe truss is particularly effective in resisting bending forces, making it suitable for longer spans and higher load capacities.
The materials used in the construction of Bailey bridges significantly impact their overall strength and durability. Steel is the primary material, but variations in thickness and treatment can enhance performance. Advances in material science have led to the development of high-strength steel alloys that offer improved resistance to corrosion and fatigue, extending the lifespan of Bailey bridges.
The way in which the panels are assembled can also affect the bridge's load capacity. Proper alignment and secure connections are essential for maintaining structural integrity. Engineers must consider factors such as joint design, bolt specifications, and welding techniques to ensure that the bridge can withstand the expected loads and environmental conditions.
Bailey bridges are used in a variety of applications due to their versatility and ease of use.
Originally designed for military use, Bailey bridges are still employed by armed forces around the world for rapid deployment in combat situations. Their ability to be assembled quickly and transported easily makes them invaluable in military operations, where time and mobility are critical.
In civil engineering, Bailey bridges are often used for temporary crossings during construction projects or as permanent solutions in remote areas where traditional bridge construction is impractical. Their modular design allows for easy relocation and adaptation to changing project requirements, making them a cost-effective solution for infrastructure development.
Bailey bridges are invaluable in disaster relief efforts, providing quick access to affected areas and enabling the transport of supplies and personnel. In the aftermath of natural disasters, such as floods or earthquakes, Bailey bridges can be deployed rapidly to restore connectivity and facilitate recovery efforts, demonstrating their critical role in emergency management.
Bailey bridges are a remarkable engineering solution that offers flexibility in design and application. Their varying load capacities and span lengths make them suitable for a wide range of uses, from military operations to civil engineering projects. Understanding the different types of Bailey bridges and their specifications is essential for selecting the right bridge for specific needs, ensuring safety and efficiency in transportation infrastructure.
As technology continues to advance, the design and materials used in Bailey bridges will likely evolve, further enhancing their capabilities and applications in the future. Innovations in engineering practices and materials science will continue to expand the potential uses of Bailey bridges, ensuring that they remain a vital component of modern infrastructure solutions.
The primary advantages of Bailey bridges include their rapid assembly and disassembly, lightweight design, portability, and versatility. They can be easily transported to remote locations and set up quickly, making them ideal for temporary or emergency use.
The assembly time for a Bailey bridge can vary depending on the size and complexity of the bridge, but a standard single-lane Bailey bridge can often be assembled in a matter of hours by a small team of trained personnel.
Yes, Bailey bridges can be used for permanent installations, especially in remote areas where traditional bridge construction is impractical. They are designed to withstand significant loads and can provide a durable solution for long-term use.
The types of vehicles that can cross a Bailey bridge depend on its load capacity. Single-lane Bailey bridges typically accommodate light vehicles, while double-lane and multi-span Bailey bridges can support heavier vehicles, including trucks and buses, depending on their specific design and load ratings.
While Bailey bridges are highly versatile, they do have limitations. Their load capacity is generally lower than that of traditional bridges, and they may not be suitable for very heavy or high-speed traffic. Additionally, their aesthetic appeal may not match that of more permanent bridge designs, which can be a consideration in urban or scenic areas.
