Building a truss bridge from basswood is an exciting and educational project that allows you to explore fundamental engineering principles while developing hands-on skills. This guide will take you through the entire process of designing and constructing a sturdy truss bridge, emphasizing the importance of structural integrity and load distribution. Whether you are participating in a school project or simply interested in bridge engineering, this comprehensive guide will help you create a robust and efficient structure.

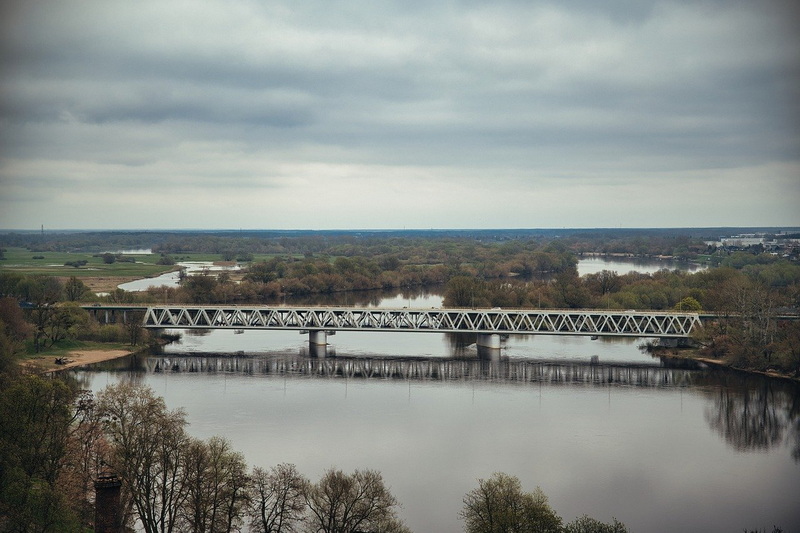

A truss bridge is a type of bridge that utilizes a framework of triangular units to support loads. The triangular shape is crucial because it provides stability and evenly distributes forces throughout the structure. When weight is applied to a truss bridge, the force is transferred through the triangular framework, preventing deformation and collapse.
- Top Chord: The upper horizontal member that bears compression forces.
- Bottom Chord: The lower horizontal member that experiences tension forces.
- Web Members: The diagonal and vertical members that connect the top and bottom chords, forming triangles.
Triangles are considered the most stable geometric shape for several reasons:
- Rigidity: Unlike squares or rectangles, which can deform under pressure, triangles maintain their shape. This rigidity allows them to effectively transfer forces without bending.
- Efficient Load Distribution: Triangles distribute weight evenly across their sides, preventing weak points in the structure. This characteristic is essential for bridges that must support heavy loads.
- Simplicity in Design: The triangular shape simplifies calculations for engineers, making it easier to design safe and effective structures.
Before starting your project, gather the following materials:
- Basswood strips (typically 1/4 x 1/4 inch or 1/8 x 1/8 inch)
- Wood glue (preferably aliphatic resin glue or hot glue)
- A sharp craft knife or saw
- Ruler or measuring tape
- Pencil
- Clamps or weights for holding pieces together while drying
- Sandpaper (optional, for smoothing edges)
1. Choose a Truss Design: Select a truss design that incorporates triangles effectively. Popular designs include:
- Warren Truss: Features equilateral triangles with alternating compression and tension members.
- Pratt Truss: Diagonal members slope towards the center and are in tension, while vertical members are in compression.
- Howe Truss: Similar to the Pratt but with diagonals facing away from the center, resulting in different load distributions.
2. Create a Blueprint: Sketch your design on graph paper. Include dimensions that meet any specific requirements you may have, such as length, width, and height constraints.
3. Calculate Material Needs: Based on your design, determine how many pieces of basswood you will need and their respective lengths. This will help you avoid wasting materials.
4. Consider Load Requirements: Understand the load your bridge needs to support. This will influence your design choices and material selection.
Using your blueprint as a guide, measure and cut the basswood strips to the required lengths. Precision is key; ensure all cuts are straight to maintain structural integrity.
- Use a sharp craft knife for clean cuts; dull blades can splinter the wood.
- If necessary, sand the edges lightly to remove any rough spots that could weaken joints.
1. Construct the Top and Bottom Chords: Start by gluing the top chord pieces together to form a straight line. Ensure they align perfectly to avoid any misalignment in your structure. Repeat this for the bottom chord.
2. Add Vertical Members: Measure and cut vertical members according to your design. Glue these pieces between the top and bottom chords at equal intervals.
3. Incorporate Diagonal Members: Cut diagonal members to fit between vertical members, forming triangles within the truss structure. This step is critical for distributing loads effectively.
4. Reinforce Joints: Use small pieces of basswood as gusset plates at each joint where members meet. This adds strength to connections by increasing surface area for glue adhesion.
5. Repeat for Second Truss: Construct another identical truss following the same steps.
1. Space the Trusses Apart: Place both trusses parallel to each other at an appropriate distance (usually 2 inches apart). Ensure they are aligned correctly for optimal load distribution.
2. Attach Cross Bracing: Cut additional pieces of basswood to connect the two trusses at various points along their length, enhancing stability against lateral forces such as wind or seismic activity.
3. Add Roadbed: Create a roadbed using flat basswood strips placed across the top of both trusses. This will serve as the surface on which loads will be applied.
4. Final Reinforcements: Check all joints for strength and add extra glue if necessary. Allow ample time for all glue joints to cure fully before proceeding with testing.
Before any competition or practical use, it's essential to test your bridge to ensure it can withstand expected loads:
1. Set Up Testing Apparatus: Use supports at both ends of the bridge to simulate real-world conditions.
2. Gradually Apply Weight: Slowly add weight (such as bags of sand) at the center of the bridge until it fails or reaches its load capacity.
3. Record Results: Note how much weight your bridge held before failure; this information is invaluable for future projects and helps you understand how different designs perform under stress.
4. Analyze Failure Points: After testing, examine where failures occurred—was it at joints? Did certain members buckle? Understanding these points can inform improvements in future designs.
- Use high-quality glue and apply it sparingly; too much can add unnecessary weight while not enough can lead to weak joints.
- Ensure all cuts are precise; irregular edges can weaken joints significantly.
- Consider environmental factors like humidity, which can affect basswood's weight and strength over time—store materials in a dry place when not in use.
- Keep a log of your designs and results; this will help you learn from each project and refine your techniques over time.
1. Ignoring Load Distribution: Failing to consider how weight will be distributed across your bridge can lead to unexpected failures during testing.
2. Overbuilding or Underbuilding: Using too much material can unnecessarily increase weight without adding strength, while too little material may not support expected loads.
3. Neglecting Drying Time: Rushing through assembly without allowing adequate drying time can compromise joint strength.
4. Not Testing Early Enough: Waiting until completion before testing can lead to wasted effort if significant design flaws are discovered late in the process.
Once you have mastered basic construction techniques, consider exploring more advanced methods:
- Finite Element Analysis (FEA): Use software tools that simulate how your bridge will perform under load conditions before building it physically.
- Material Experimentation: While basswood is standard, experimenting with different types or grades of wood may yield surprising results regarding strength-to-weight ratios.
- Incorporating Other Materials: If allowed by competition rules, consider integrating lightweight materials like carbon fiber or aluminum in critical areas where additional strength is required without adding significant weight.
Building a truss bridge from basswood is not only an enjoyable challenge but also an excellent way to apply engineering concepts in practice. By following this guide, you can create a robust structure capable of withstanding significant loads while learning valuable skills in design and construction that may serve you well in future projects or competitions.
Basswood strips are commonly used due to their lightweight properties and ease of manipulation during construction; wood glue is recommended for quick drying times.
Focus on creating strong joints with adequate reinforcement using gusset plates; ensure proper spacing between vertical members for efficient load distribution.
Common types include Warren, Pratt, Howe, and K trusses; each has unique characteristics suited for different loads and spans.
Set up supports at both ends of your bridge and gradually add weights at its center until failure occurs; record how much weight it holds before breaking.
Triangles provide stability by maintaining their shape under load while distributing weight evenly across their sides, preventing structural weaknesses.
